Typical adjunct power connections end-to-end

Last Updated : Feb 25, 2022 |

The figure shows typical connection locations for adjunct power.

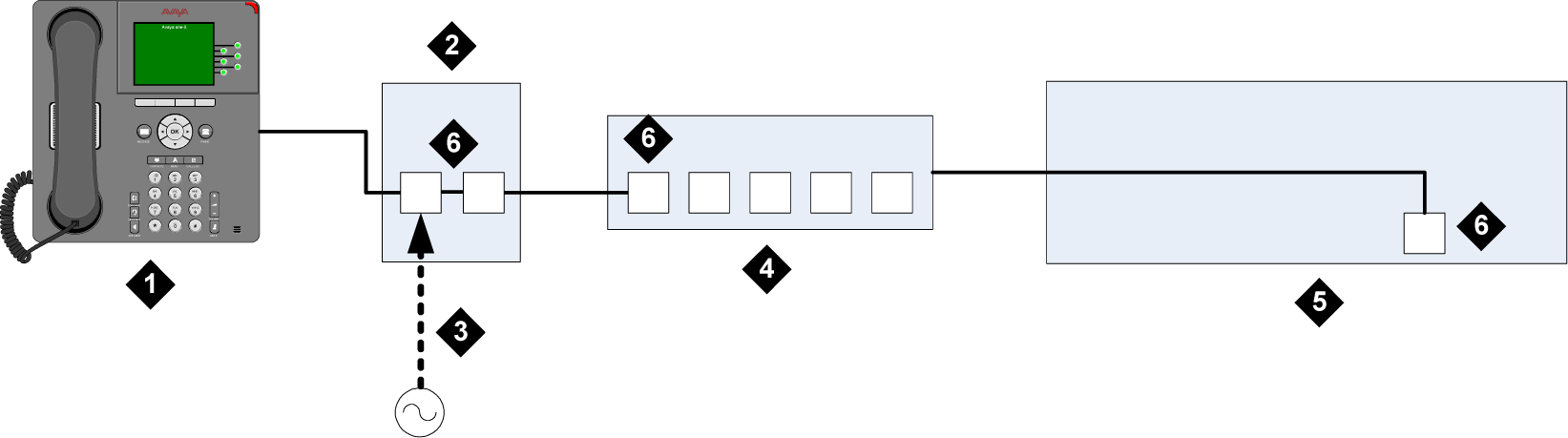

Figure : 1. Example Adjunct Power Connections
Table 1: Figure notes:

  1. Avaya IP telephone

  2. Power brick

  3. AC power inlet

  4. Switch

  5. Branch Gateway

  6. LAN port
