Define the IP Office Server Interworking Profile

Last Updated : Oct 16, 2023 |
The ASBCE uses this interworking profile to support the SIP connection from the IP Office (the MS Teams Line).
Prolog information
Metadata
Keywords:
Before you begin
  1. Select Configuration Profiles and then Server Interworking.
  2. Click Add.
  3. For the Profile Name, enter a unique descriptive name and click Next.

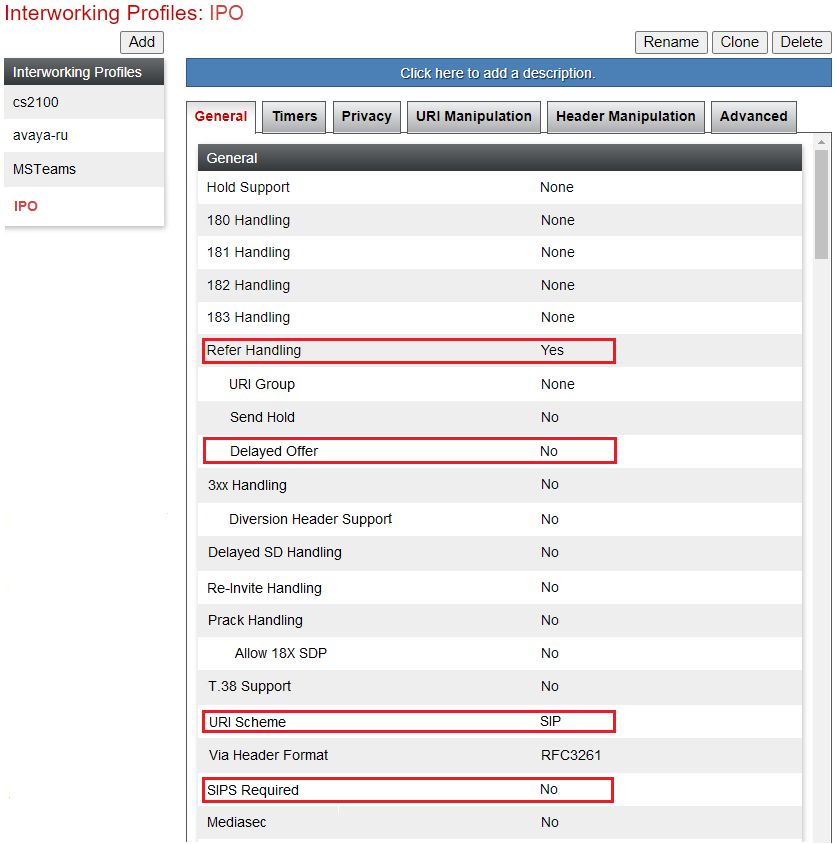

  4. From the General settings tab, change the following
    1. Enable Refer Handling.
    2. Disable Delayed Offer.
    3. Set the URI Scheme to SIP.
    4. Disable SIPS Required.
  5. Click Next. Leave the SIP Timers unchanged. Click Next.
  6. Leave the Privacy settings unchanged. Click Next.

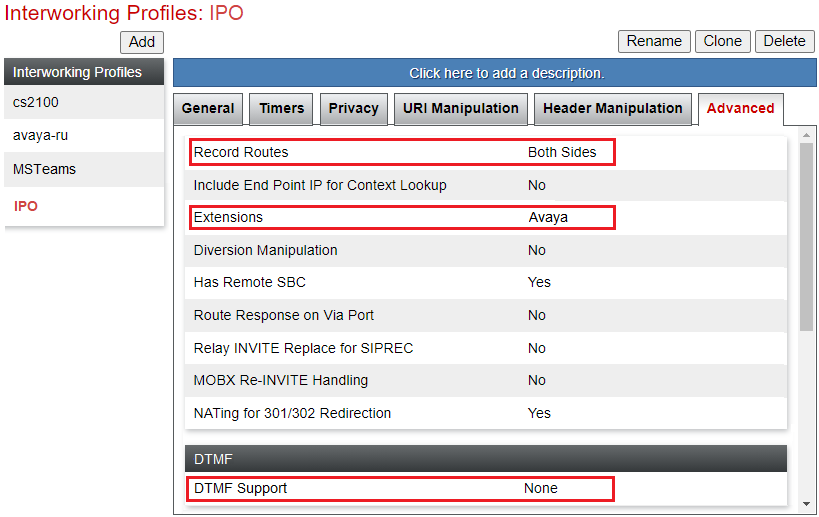

  7. On the Advanced settings tab, change the following:
    1. Set Record Routes to Both Sides.
    2. Set Extensions to Avaya.
    3. Set DTMF Support to None.
  8. Click Finish.
  9. The IP Office interworking profile will look like the following example:
    ADDITIONAL INFORMATION:
Next steps
Related links
Configuring the ASBCE Callflow
