Wall mounting Avaya J100 Series IP Phones

Last Updated : Aug 28, 2026 |
Prolog information
Metadata
Keywords:
The wall mount kit is not bundled with the phone package. You must separately purchase the wall mount kit that is unique to your phone model. Use the following part numbers to order the wall mount kit:
  • J129 phones — 700512707.
  • J139, J159, J169, J179, and J189 phones — 700513631.
Before you begin
Obtain the following items:
  • Wall mounting kit, containing a wall mount bracket, and an Ethernet cable.
  • Four #8 screws. The screws are not provided with the wall mounting kit. If the wall plate is pre-installed, you do not need the screws.
  1. Do one of the following:

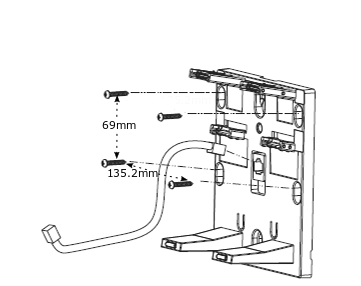

    • Place the bracket on the wall and mark to drill holes. Use four #8 screws to fix the bracket.

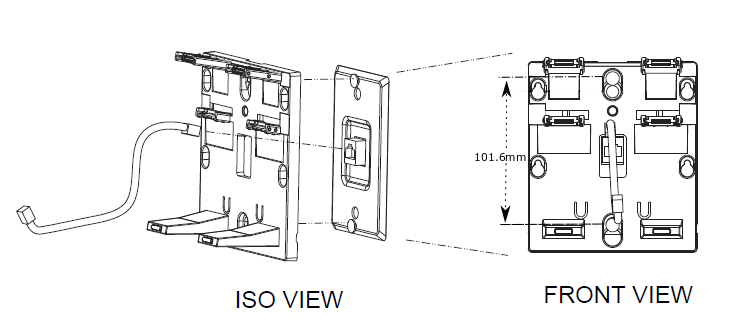

    • If the wall plate is pre-installed, fit the wall mount bracket over the wall plate.
  2. Connect one end of the Ethernet cable to the network port of the phone and the other end to the wall jack.

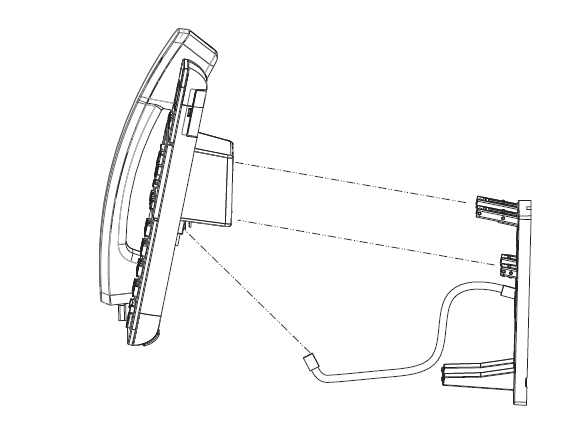

  3. To attach the phone to the wall mount bracket, insert the two upper tabs of the bracket into the slots on the back panel of the phone.
    ADDITIONAL INFORMATION:
    The lower pair of tabs rest against the back panel. The phone does not move when you press a key on the phone.
