Deploying Avaya Wireless DECT with IP Office
Configuring IP Trunks
An IP trunk to the IP Office must be configured. Only one trunk is supported.
- In the left-hand panel select DECT, and then select the Trunks tab.
ADDITIONAL INFORMATION:

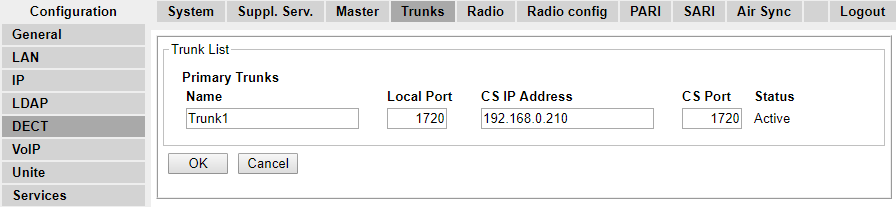

- Enter the following settings:
ADDITIONAL INFORMATION:
-
Name: Set a name that identifies the IP Office system.
-
Local Port: Set this to 1720.
-
CS IP Address: Set this field to the IP address of the IP Office system.
-
CS Port : Set this to 1720.
-
- Click OK.
ADDITIONAL INFORMATION:
-
The message Reset required! is displayed. At this stage further changes are required so do not reset the base station.
-
