Network Interface at Smart Jack

Last Updated : Apr 28, 2014 |

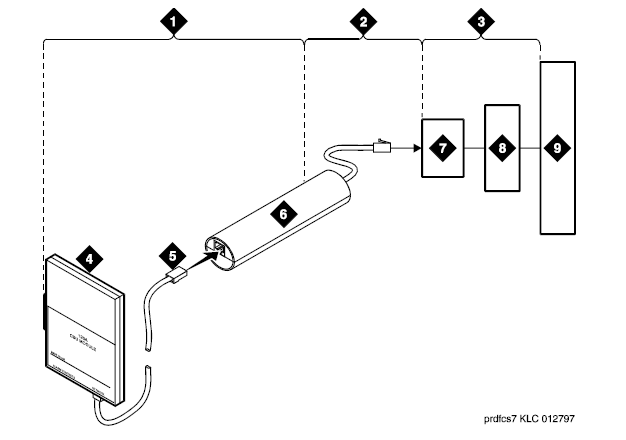

Figure : 1. Network Interface at Smart Jack




Number

Description

1

Span Section 1

2

Span Section 2

3

Span Section 3

4

120A Integrated Channel Service Unit (ICSU)

5

RJ-48 to Network Interface (Up to 1000 Feet) (305 m)

6

Loopback Jack

7

Network Interface Smart Jack

8

Interface Termination of Fiber MUX

9

Central Office
