Deploying and Upgrading Avaya G450 Branch Gateway

Connecting an E1/T1 WAN link to the MM340 media module

Last Updated : Jun 11, 2020 |

About this task

Use an unshielded twisted pair cable, straight or crossover, depending on the WAN equipment.

G450 Branch Gateway v4 does not support the MM340 media module.

Procedure

Plug the WAN line into the E1/T1 port on the MM340 media module.

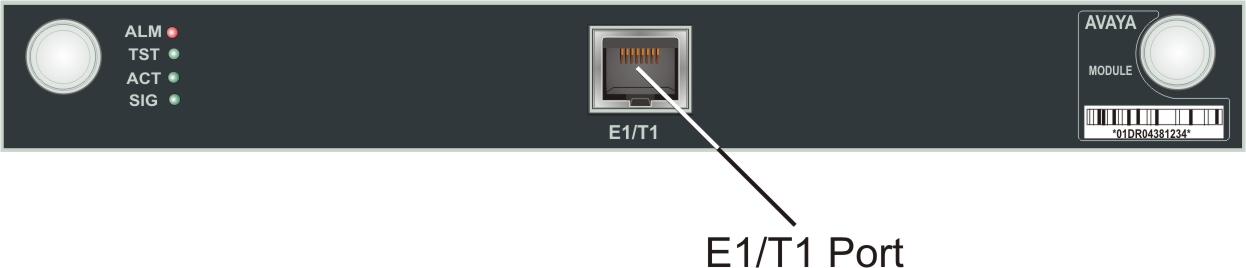

The following image shows the E1/T1 port location on the MM340 media module:
