Mounting the Branch Gateway on a wall

Last Updated : Feb 07, 2022 |

About this task

One person can wall mount the G450 Branch Gateway if the PSUs are removed. A minimum of two installers are required to wall mount the Branch Gateway with the PSUs installed.

Warning:

Only trained service personnel are allowed to wall mount the Branch Gateway.

Procedure

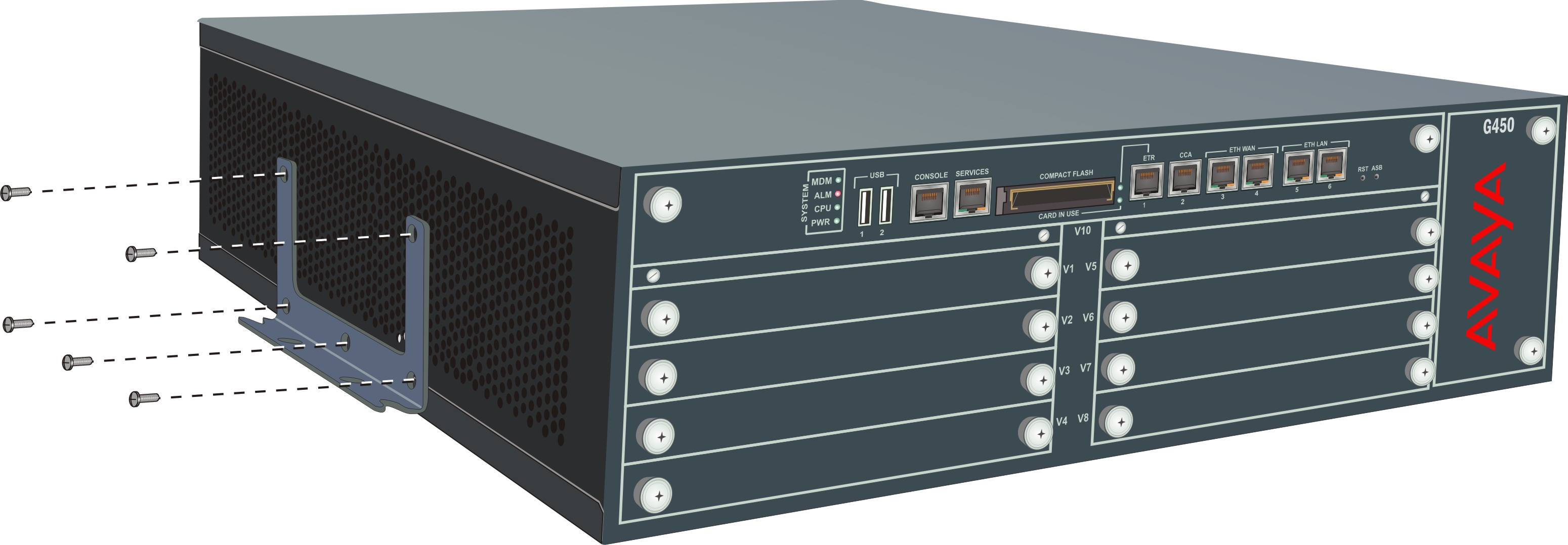

  1. Attach a bracket to each side of the Branch Gateway, as shown in the following image.




  2. Mark the plywood with the location of the Branch Gateway bracket screw holes before fastening the plywood to the wall.
  3. Place the Branch Gateway with its front panel facing up.
  4. Secure the Branch Gateway to the plywood with screws.
