The front panel of the Branch Gateway chassis without media modules

Last Updated : Nov 16, 2023 |

There are four hardware versions of the G450 Branch Gateway, referred to as G450 Branch Gateway 1.x, G450 Branch Gateway 2.x, G450 Branch Gateway 3.x, and G450 Branch Gateway 4.x. 1.x and 2.x refer to the hardware suffix of the Branch Gateway that is printed on the label displayed on the rear of the chassis. The differences between the two versions are minor, and include slightly different front panels, and different placement of components on the main boards. The front panels in versions 2.x, 3.x, and 4.x are identical, with minor differences with version 1.x.

  • On the G450 version 1.x, the RST button is to the left of the ASB button.

  • On the G450 versions 2.x, 3.x, and 4.x, the RST button is above the ASB button.

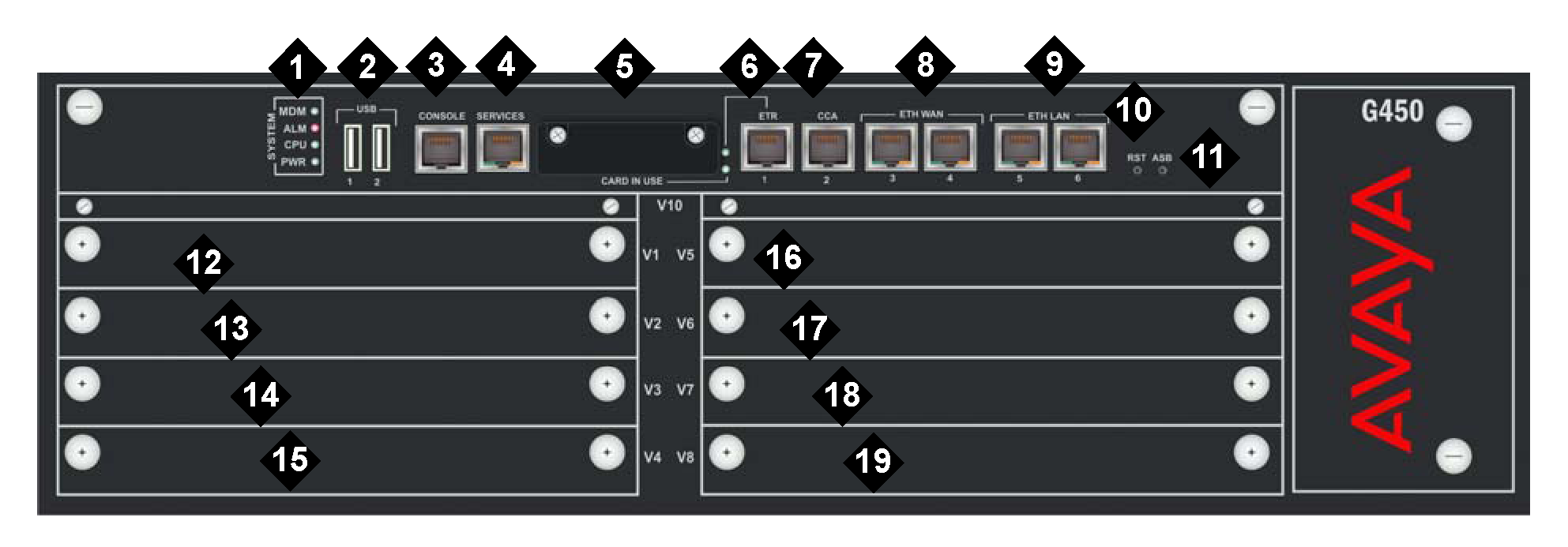

Figure : 1. The G450 1.x front panel ports and slots

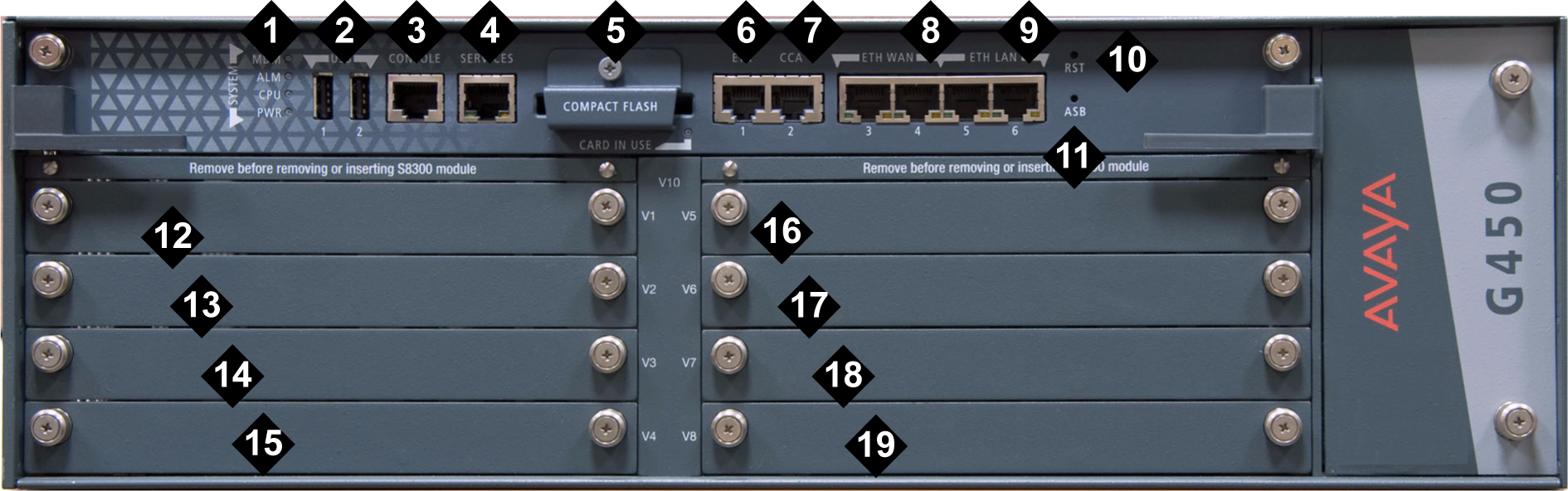

Figure : 2. The G450 2.x, 3.x, and 4.x front panel ports and slots

1. System (SYSTM) LEDs

2. USB ports

3. Console (CNSL) port

4. Services (SVCS) port

5. Compact Flash (CMPCT FLSH) slot

6. ETR (Emergency Transfer Relay) port

7. CCA (Contact Closure) port

8. ETH WAN ports

9. ETH LAN ports

10. RST button

11. ASB button

12. V1: slot for a media module or S8300 Server

13. V2: slot for a media module

14. V3: slot for a media module

15. V4: slot for a media module

16. V5: slot for a media module or S8300 Server

17. V6: slot for a media module

18. V7: slot for a media module

19. V8: slot for a media module
