Unified Communications Module Status

Last Updated : Nov 13, 2020 |

Path: System > UC Modules > UC Module

This menu displays details of the selected Unified Communications Module and its current status. For the Unified Communications Module V2 the status messages match the LED indicators on the front of the module.

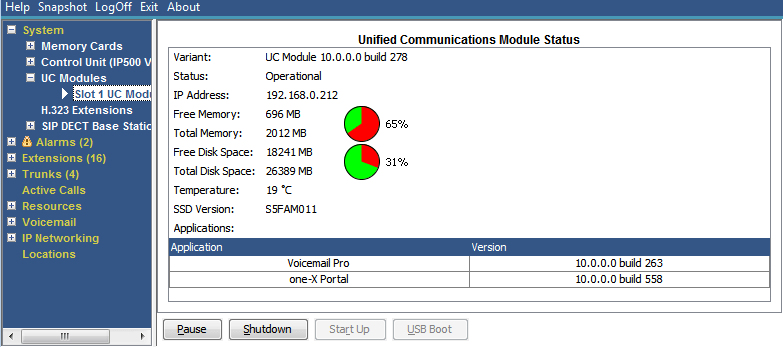

Figure : 1. UCM Module Status




For details of the status messages and the correspond module LEDs, see the Installing and Maintaining the Unified Communications Module manual.

Buttons

The following buttons can appear on this screen:

Button

Description

Pause

Stops the screen from updating. The button label and function changes to Resume when the screen is paused.

Resume

Resumes updating screen in real time. When pressed, the button label and function changes to Pause.

Start Up

Restart a shutdown memory card or Unified Communications Module.

USB Boot

Instructs the Unified Communications Module to start up and boot from a bootable USB memory key if present. Requires the Unified Communications Module to be shutdown first.
