Viewing a Snapshot

Last Updated : Nov 12, 2020 |

About this task

You can use System Status to view previously saved snapshots. While viewing a snapshot, the Properties and Close menu options replace Snapshot and LogOff. The Properties option shows who took the snapshot and when.

Before you begin

Note that when viewing a snapshot, controls relating to live information capture such as Refresh, and controls that alter the system state such as Clear Alarm History, are not available.

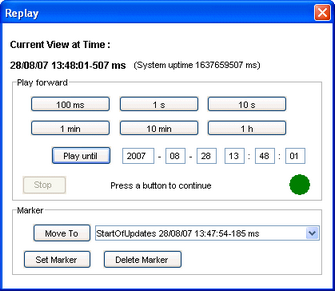

Figure : 1. The Snapshot Playback Menu




To open a snapshot

Procedure

  1. From the Logon menu, click the Offline tab:
  2. Click Select a file....
  3. Locate the saved snapshot SSH or SLO file and click Open to display the file.
  4. For snapshot log file, the menu bar option Replay displays a menu for controlling the playback of the log file.
