Using IP Office System Status
Call Disconnected by Internal User

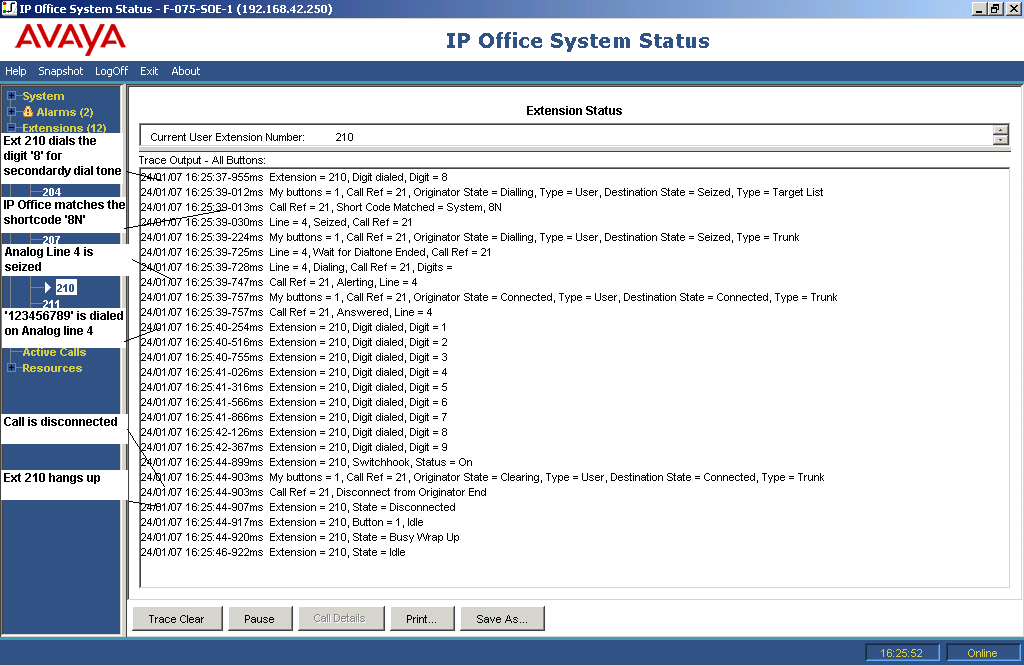

The following example shows an extension dialling out on an analog trunk:
Extension 210 dials 8123456789.
The trace shows Extension = 210, Digit dialed, digit = 8.
The system matches the dialed 8, to the system short code 8N.
The trace shows that the system seized analog line 4 and dialed 123456789 on the line.
The trace shows that extension 210 goes back on hook.
The system disconnects the call.
Note:
Analog lines do not provide call progress signalling. Therefore, they go directly from the 'seized' to the 'connected' state.
The trace will not show the digits dialed on an analog trunk after short code matching, if the pause between digits dialed exceeds an 'inter-digit' timeout.
