Include switch configuration

If selected, the snapshot includes a copy of the system's configuration.

• After taking the snapshot, in addition to viewing the snapshot in system status, you can open the snapshot in IP Office Manager to examine the system configuration. See Opening a Configuration.

• To use this option, the account used to log in to System Status must have Read All Configuration enabled (see Assigning Security Settings).

Snapshot only

If selected, after clicking OK, System Status requests where you want to save the snapshot file. This creates a snapshot file with a .ssh file extension.

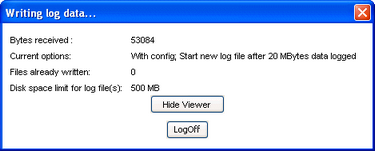

Continuous log

This creates a snapshot file with a .slo file extension. If selected, after clicking OK, System Status displays the logging options menu.

Note that with continuous logging, you must leave System Status running and cannot use it for other activities without first stopping the logging.
