DITA and Tridion Docs Work Instructions and Guidelines
Adding a custom logo in outputs
You can substitute the Avaya logo with a custom logo in outputs.
If you already have set up a substitute logo by using othermeta, the same setup works, and you do not need to change it.
Before you begin
Upload the image to the appropriate project folder in Tridion Docs. Ensure that the file name is unique, preferably the project-specific name.
- Start Publication Manager and open the publication.
STEP RESULT:The Browse Repository window is displayed.
- Right-click the bookmap and select Check out with in Oxygen XML Author.

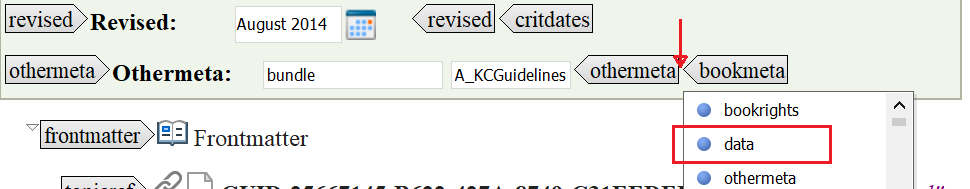

- Place the cursor before the end bookmeta tag, press Enter and click data.
ADDITIONAL INFORMATION:
- Press Enter and insert the image (wizard).
- On the Insert image dialog box, navigate to the image that you want to use for the logo, and click Insert.
- In the Attributes dialog box of the image, type one of the following in the outputclass field.
-
For PDF outputs, logo-pdf.
-
For HTML outputs, logo-html.
ADDITIONAL INFORMATION:If you use the same bookmap to produce both PDF and HTML outputs, you can include two data elements in bookmeta, one with outputclass set toicon-pdfand one with outputclass set toicon-html. -
- Click OK.
- Click to check in the map.
- Publish the output and verify that the correct logo is displayed.
