Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmAlarms
MIB group name |
OID |
Type |
|---|---|---|
avCmAlarms |
enterprises.6889.2.73.8.1.5 |
Table |
Description
The avCmAlarms MIB group displays the output of CMs Active Alarm Report.
Releases Supported
6.3.100 and later
Polling Type
Fault
Polling Interval
No more than every 1 hour.
Default Caching Interval
300 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Red/High: The data collected by this MIB Group increases as the number of boards in the system increase. Consequently, this data could be very large and therefore may take a very long time to collect and could impact system performance.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmAlarms |
SAT |
display alarms |

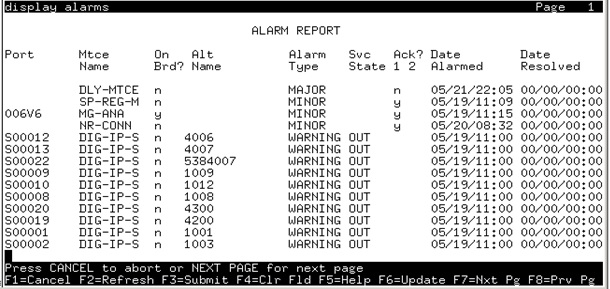

ALARM REPORT |
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmAlarmsTable |
.1 |
n/a |
n/a |
n/a |
A list of the avCmAlarms entries. |
avCmAlarmsEntry |
.1.1 |
n/a |
n/a |
n/a |
An avCmAlarms entry containing objects of the avCmAlarms information sent by the switch. |
avCmAlarmsPortIdx |
.1.1.1 |
n/a |
SnmpAdminString (SIZE (0..10)) |
n/a |
An object containing an index that uniquely identifies a port based on its location in the system. The syntax for the Port Number is as follows: cabinet (01-64): carrier (A-E): slot (01-20): port (01-64). |
avCmAlarmsMtceNameIdx |
.1.1.2 |
n/a |
SnmpAdminString (SIZE (0..9)) |
n/a |
An object containing an index that uniquely identifies a Maintenance Object Name. |
avCmAlarmsIndex |
.1.1.3 |
n/a |
Integer32 (0..6500) |
n/a |
An Integer32 object containing an index that numbers the alarm entry for the avCmAlarmsPortIdx. This object along with avCmAlarmsPortIdx serves as the instance identifier for avCmAlarmsEntry. |
avCmAlarmsPort |
.1.1.4 |
R |
SnmpAdminString (SIZE (0..10)) |
Port |
An object that uniquely identifies a port based on its location in the system. The syntax for the Port Number is as follows: cabinet (01-64): carrier (A-E): slot (01-20): port (01-64). |
ALARM REPORT |
|||||
avCmAlarmsMtceName |
.1.1.5 |
R |
SnmpAdminString (SIZE (0..9)) |
Mtce Name |
An object that contains the Maintenance Object Name. |
ALARM REPORT |
|||||
avCmAlarmsOnBrd |
.1.1.6 |
R |
SnmpAdminString (SIZE (0..2)) |
On Brd |
An object that contains the whether or not the alarm is on or off board. |
ALARM REPORT |
|||||
avCmAlarmsAltName |
.1.1.7 |
R |
SnmpAdminString (SIZE (0..14)) |
Alt Name |
An object that contains the alternate name of the alarmed object. Alternate names can consist of extension numbers, trunk group numbers or other identifying data. |
ALARM REPORT |
|||||
avCmAlarmsAlarmType |
.1.1.8 |
R |
SnmpAdminString (SIZE (0..8)) |
Alarm Type |
An object that contains the alarm severity. |
ALARM REPORT |
|||||
avCmAlarmsSvcState |
.1.1.9 |
R |
SnmpAdminString (SIZE (0..4)) |
Svc State |
An object that contains the service state of the alarmed object. |
ALARM REPORT |
|||||
avCmAlarmsAck |
.1.1.10 |
R |
SnmpAdminString (SIZE (0..18)) |
Ack 1 2 |
An object that contains whether or not the alarm has been acknowledged by the alarm receiver. |
ALARM REPORT |
|||||
avCmAlarmsDateAlarmed |
.1.1.11 |
R |
SnmpAdminString (SIZE (0..12)) |
Date Alarmed |
An object that contains the month/day/hour: minute the alarm was generated. |
ALARM REPORT |
|||||
avCmAlarmsDateResolved |
.1.1.12 |
R |
SnmpAdminString (SIZE (0..12)) |
Date Resolved |
An object that contains the month/day/hour: minute the alarm was Resolved. |
ALARM REPORT |
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmAlarms
avCmAlarmsPort."604"."ISDN-SGR".1 = STRING: 604
avCmAlarmsPort."604"."ISDN-SGR".2 = STRING: 604
:
:
avCmAlarmsPort."000000000"."SP-REG-M".1 = STRING: 000000000
avCmAlarmsMtceName."604"."ISDN-SGR".1 = STRING: ISDN-SGR
avCmAlarmsMtceName."604"."ISDN-SGR".2 = STRING: ISDN-SGR
:
:
avCmAlarmsMtceName."000000000"."SP-REG-M".1 = STRING: SP-REG-M
avCmAlarmsOnBrd."604"."ISDN-SGR".1 = STRING: n
avCmAlarmsOnBrd."604"."ISDN-SGR".2 = STRING: n
:
:
avCmAlarmsOnBrd."000000000"."SP-REG-M".1 = STRING: n
avCmAlarmsAltName."604"."ISDN-SGR".1 = STRING:
avCmAlarmsAltName."604"."ISDN-SGR".2 = STRING:
:
:
avCmAlarmsAltName."000000000"."SP-REG-M".1 = STRING:
avCmAlarmsAlarmType."604"."ISDN-SGR".1 = STRING: WARNING
avCmAlarmsAlarmType."604"."ISDN-SGR".2 = STRING: WARNING
:
:
avCmAlarmsAlarmType."000000000"."SP-REG-M".1 = STRING: MINOR
avCmAlarmsSvcState."604"."ISDN-SGR".1 = STRING: OUT
avCmAlarmsSvcState."604"."ISDN-SGR".2 = STRING: OUT
:
:
avCmAlarmsSvcState."000000000"."SP-REG-M".1 = STRING:
avCmAlarmsAck."604"."ISDN-SGR".1 = STRING: Ack 1: Ack 2:
avCmAlarmsAck."604"."ISDN-SGR".2 = STRING: Ack 1: Ack 2:
:
:
avCmAlarmsAck."000000000"."SP-REG-M".1 = STRING: Ack 1: y Ack 2:
avCmAlarmsDateAlarmed."604"."ISDN-SGR".1 = STRING: 05/20/08:31
avCmAlarmsDateAlarmed."604"."ISDN-SGR".2 = STRING: 05/20/08:31
:
:
avCmAlarmsDateAlarmed."000000000"."SP-REG-M".1 = STRING: 05/19/11:09
avCmAlarmsDateResolved."604"."ISDN-SGR".1 = STRING: 00/00/00:00
avCmAlarmsDateResolved."604"."ISDN-SGR".2 = STRING: 00/00/00:00
:
:
avCmAlarmsDateResolved."000000000"."SP-REG-M".1 = STRING: 00/00/00:00
