Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasOutTrkToday
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasOutTrkToday Group |
enterprises.6889.2.73.8.1.39 |
Table |
Description
The avCmMeasOutTrkToday MIB Group uses the list measurements outage-trunk today command to retrieve trunk outage data from the today.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once an hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasOutTrkToday |
SAT |
list measurements outage-trunk today |
TRUNK OUT OF SERVICE REPORT |
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasOutTrkTodayTable |
.1 |
n/a |
SEQUENCE OF avCmMeasOutTrkTodayEntry |
n/a |
An object that contains a list of the avCmMeasOutTrkToday entries |
avCmMeasOutTrkTodayEntry |
.1.1 |
n/a |
avCmMeasOutTrkTodayEntry |
n/a |
A avCmMeasOutTrkToday entry containing objects of the avCmMeasOutTrkToday information sent by the switch. |
avCmMeasOutTrkTodayTrunkGrpIdx |
.1.1.1 |
n/a |
Integer32 (0..2000) |
n/a |
An object that uniquely identifies each increment of data. |
avCmMeasOutTrkTodayGrpMbrIdx |
.1.1.2 |
n/a |
Integer32 (0..255) |
n/a |
An object that uniquely identifies each increment of data. |
TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkTodayTrunkGroup |
.1.1.3 |
R |
Integer32 (0..2000) |
Trunk Group |
An object containing the trunk group number. |
TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkTodayRunDate |
.1.1.4 |
R |
SnmpAdminString (SIZE (0..27)) |
Date |
An object containing the Date the command was executed. |
TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkTodayGrpSize |
.1.1.5 |
R |
Integer32 (0..999) |
Grp Size |
An object containing the number of members. |
TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkTodayGrpMbr |
.1.1.6 |
R |
Integer32 (0..2300) |
Grp Mbr# |
An object containing the member that was out of service. |
TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkTodayOutages |
.1.1.7 |
R |
Integer32 (0..999) |
#Sampled Outages |
An object containing the number of sampled outages for the trunk group member. |
TRUNK OUT OF SERVICE REPORT |

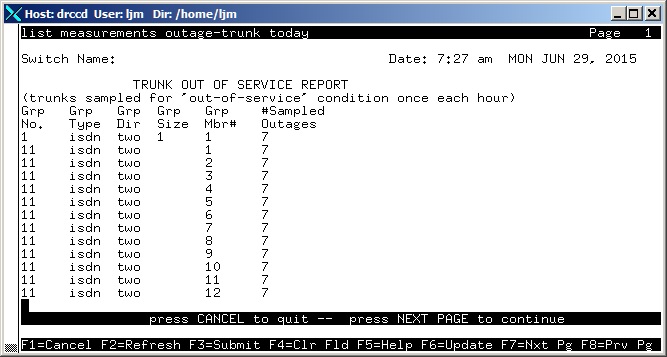

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibs/AV
AYA-AURA-CM-MIB.txt avCmMeasOutTrkToday
avCmMeasOutTrkTodayTrunkGroup.1.1 = INTEGER: 1
avCmMeasOutTrkTodayTrunkGroup.11.1 = INTEGER: 11
:
:
avCmMeasOutTrkTodayTrunkGroup.11.255 = INTEGER: 11
avCmMeasOutTrkTodayRunDate.1.1 = STRING: 7:22 am MON JUN 29, 2015
avCmMeasOutTrkTodayRunDate.11.1 = STRING: 7:22 am MON JUN 29, 2015
:
:
avCmMeasOutTrkTodayRunDate.11.255 = STRING: 7:22 am MON JUN 29, 2015
avCmMeasOutTrkTodayGrpSize.1.1 = INTEGER: 1
avCmMeasOutTrkTodayGrpSize.11.1 = INTEGER: 0
:
:
avCmMeasOutTrkTodayGrpSize.11.255 = INTEGER: 0
avCmMeasOutTrkTodayGrpMbr.1.1 = INTEGER: 1
avCmMeasOutTrkTodayGrpMbr.11.1 = INTEGER: 1
:
:
avCmMeasOutTrkTodayGrpMbr.11.255 = INTEGER: 255
avCmMeasOutTrkTodayOutages.1.1 = INTEGER: 7
avCmMeasOutTrkTodayOutages.11.1 = INTEGER: 7
:
:
avCmMeasOutTrkTodayOutages.11.255 = INTEGER: 7
