Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasIpVoStatSumDataYest
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasIVoStatSumDataYest |
enterprises.6889.2.73.8.1.79 |
Table |
Description
The avCmMeasIpVoStatSumDataYest MIB group displays the data of the previous day for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once an hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasIpVoStatSumDataYest |
SAT |
list measurements ip voice-stats summary data yesterday |
IP VOICE STATISTICS SUMMARY DATA REPORT |
Reference Document
A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed. The default super user can run this command.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasIpVoStatSumDataYestTable |
.1 |
n/a |
SEQUENCE OF AvCmMeasIpVoStatSumDataYestEntry |
n/a |
An object containing the avCmMeasIpVoStatSumDataYest entries. |
avCmMeasIpVoStatSumDataYestEntry |
.1.1 |
n/a |
AvCmMeasIpVoStatSumDataYestEntry |
n/a |
An object containing the avCmMeasIpVoStatSumDataYest entry with the information that the switch sent.. |
avCmMeasIpVoStatSumDataYestRegIdx |
.1.1.1 |
n/a |
Integer32 (1..2000) |
n/a |
An index in the network region. |
avCmMeasIpVoStatSumDataYestHourIdx |
.1.1.2 |
n/a |
Integer32 (1..2300) |
n/a |
An index containing the measurements of the packet loss voice statistics in the 24-hour format. |
avCmMeasIpVoStatSumDataYestHourIdx |
.1.1.3 |
n/a |
Integer32 (1..9999) |
n/a |
An index containing the measurements of the packet loss voice statistics in the 24-hour format. |
avCmMeasIpVoStatSumDataYestRegion |
.1.1.4 |
R |
Integer32 (1..2000) |
List Command: Region |
An object containing the network region. |
IP VOICE STATISTICS SUMMARY DATA REPORT |
|||||
avCmMeasIpVoStatSumDataYestMeasHour |
.1.1.5 |
R |
Integer32 (1..2300) |
Measurement Hour |
An object that containing the measurement hour. |
IP VOICE STATISTICS SUMMARY DATA REPORT |
|||||
avCmMeasIpVoStatSumDataYestRunTime |
.1.1.6 |
R |
SnmpAdminString (SIZE (0..28)) |
Date |
An object containing the date |
IP VOICE STATISTICS SUMMARY DATA REPORT |
|||||
avCmMeasIpVoStatSumDataYestBoardLoc |
.1.1.7 |
R |
SnmpAdminString (SIZE (0..6)) |
Board Loc |
An object containing the board location. |
IP VOICE STATISTICS SUMMARY DATA REPORT |
|||||
avCmMeasIpVoStatSumDataYestCallingNum |
.1.1.8 |
R |
SnmpAdminString (SIZE (0..17)) |
Calling Number\ |
An object containing the calling number. |
IP VOICE STATISTICS SUMMARY DATA REPORT |
|||||
avCmMeasIpVoStatSumDataYestCalledNum |
.1.1.9 |
R |
SnmpAdminString (SIZE (0..17)) |
Called Number |
An object containing the called number. |
IP VOICE STATISTICS SUMMARY DATA REPORT |
|||||
avCmMeasIpVoStatSumDataYestDstReg |
.1.1.10 |
R |
SnmpAdminString (SIZE (0..9999)) |
Dst Reg |
An object containing the destination region. |
IP VOICE STATISTICS SUMMARY DATA REPORT |
|||||
avCmMeasIpVoStatSumDataYestCodec |
.1.1.11 |
R |
SnmpAdminString (SIZE (0..58)) |
Codec |
An object containing the codec used for the call. |
IP VOICE STATISTICS SUMMARY DATA REPORT |
|||||
avCmMeasIpVoStatSumDataYestDataType |
.1.1.12 |
R |
SnmpAdminString (SIZE (0..7)) |
Data Type |
An object containing the type of the call: ttyrel (TTY Relay), mod-pt (Modem pass-through), fax-pt (FAX pass-through), tty-pt (TTY pass-through), t38fax (T.38 FAX), faxrel (FAX relay), modrel (Modem relay) |
IP VOICE STATISTICS SUMMARY DATA REPORT |
|||||
avCmMeasIpVoStatSumDataYestPktSize |
.1.1.13 |
R |
SnmpAdminString (SIZE (0..999)) |
Pkt Size |
An object containing the packet size of each data stream in milliseconds. |
IP VOICE STATISTICS SUMMARY DATA REPORT |
|||||
avCmMeasIpVoStatSumDataLstLossPerc |
.1.1.14 |
R |
SnmpAdminString (SIZE (0..4)) |
Loss % |
An object containing the packet loss during a call. The packet loss is calculated at 10-second intervals. |
IP VOICE STATISTICS SUMMARY DATA REPORT |
|||||
avCmMeasIpVoStatSumDataYestPeakJitter |
.1.1.15 |
R |
SnmpAdminString (SIZE (0..9999)) |
Peak Jit |
An object containing the peak jitter during a call in milliseconds. |
IP VOICE STATISTICS SUMMARY DATA REPORT |
|||||
avCmMeasIpVoStatSumDataYestPeakDly |
.1.1.16 |
R |
SnmpAdminString (SIZE (0..9999)) |
Dly |
An object containing the peak two-way packet delay during a call in milliseconds. |
IP VOICE STATISTICS SUMMARY DATA REPORT |
|||||
avCmMeasIpVoStatSumDataYestEC |
.1.1.17 |
R |
SnmpAdminString (SIZE (0..2)) |
EC |
An object containing the status of echo cancellation during a call. |
IP VOICE STATISTICS SUMMARY DATA REPORT |
|||||
avCmMeasIpVoStatSumDataYestFEAddr |
.1.1.18 |
R |
SnmpAdminString (SIZE (0..41)) |
FE-Addr |
An object containing the far-end IP address. |
IP VOICE STATISTICS SUMMARY DATA REPORT |

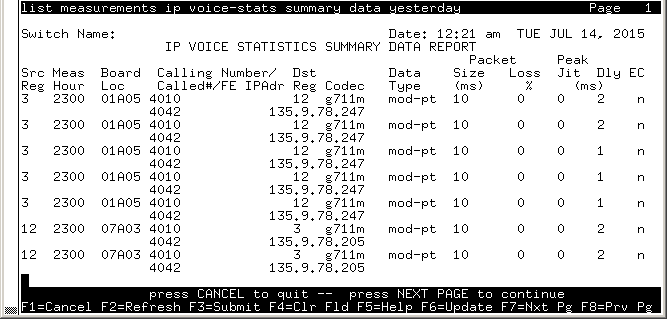

Sample output of forms
