Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmCapacityCallVec
MIB group name |
OID |
Type |
|---|---|---|
avCmCapacityCallVec |
enterprises.6889.2.73.8.1.14 |
Scalar |
Description
The avCmCapacityCallVec MIB Group uses the display capacity command to retrieve the CALL VECTORING capacity information under the CALL VECTORING/CALL PROMPTING section of the SYSTEM CAPACITY form.
Releases Supported
6.3.100 and later
Polling Type
Configuration, Inventory, and Performance/Utilization
Polling Interval
No more than once every 20 minutes.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmCapacityCallVec |
SAT |
display capacity |
SYSTEM CAPACITY |
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmCapacityCallVecTotalVdnUsed |
.1 |
R |
Integer32 (0..99999) |
Total Vector Directory Numbers |
An object that contains the number of used total Vector Directory Numbers. |
SYSTEM CAPACITY |
|||||
Total Vector Directory Numbers |
.2 |
R |
Integer32 (0..99999) |
Total Vector Directory Numbers |
An object that contains the number of available total Vector Directory Numbers. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecTotalVdnSysLim |
.3 |
R |
Integer32 (0..99999) |
Total Vector Directory Numbers |
An object that contains the system limit of available total Vector Directory Numbers. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecMeetMeVdnUsed |
.4 |
R |
Integer32 (0..99999) |
Meet-me Conference VDNs per system |
An object that contains the number of used Meet-me Conference VDNs per system. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecMeetMeVdnAvail |
.5 |
R |
Integer32 (0..99999) |
Meet-me Conference VDNs per system |
An object that contains the number of available Meet-me Conference VDNs per system. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecMeetMeVdnSysLim |
.6 |
R |
Integer32 (0..99999) |
Meet-me Conference VDNs per system |
An object that contains the system limit of Meet-me Conference VDNs per system. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecMaxExpMeetMePtsUsed |
.7 |
R |
Integer32 (0..99999) |
Maximum Number of Expanded Meet-me Conf. Ports |
An object that contains the number of used maximum number of Expanded Meet-me Conference ports. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecMaxExpMeetMePtsAvail |
.8 |
R |
Integer32 (0..99999) |
Maximum Number of Expanded Meet-me Conf. Ports |
An object that contains the number of available maximum number of Expanded Meet-me Conference ports. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecMaxExpMeetMePtsSysLim |
.9 |
R |
Integer32 (0..99999) |
Maximum Number of Expanded Meet-me Conf. Ports |
An object that contains the system limits of maximum number of Expanded Meet-me Conference ports. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecTotalVectorsUsed |
.10 |
R |
Integer32 (0..99999) |
Total Vectors Per System |
An object that contains the number of used total vectors per system. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecTotalVectorsAvail |
.11 |
R |
Integer32 (0..99999) |
Total Vectors Per System |
An object that contains the number of available total vectors per system. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecTotalVectorsSysLim |
.12 |
R |
Integer32 (0..99999) |
Total Vectors Per System |
An object that contains the system limit of used total vectors per system. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecMeetMeVectorsUsed |
.13 |
R |
Integer32 (0..99999) |
Meet-me Conference vectors per system |
An object that contains the number of used meet-me conference vectors per system. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecMeetMeVectorsAvail |
.14 |
R |
Integer32 (0..99999) |
Meet-me Conference vectors per system |
An object that contains the number of available meet-me conference vectors per system. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecMeetMeVectorsSysLim |
.15 |
R |
Integer32 (0..99999) |
Meet-me Conference vectors per system |
An object that contains the system limit of meet-me conference vectors per system. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecBsrAppLocPairsUsed |
.16 |
R |
Integer32 (0..99999) |
BSR Application-Location Pairs Per System |
An object that contains the number of used maximum BSR application-location pairs per system. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecBsrAppLocPairsAvail |
.17 |
R |
Integer32 (0..99999) |
BSR Application-Location Pairs Per System |
An object that contains the number of available maximum BSR application-location pairs per system. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecBsrAppLocPairsSysLim |
.18 |
R |
Integer32 (0..99999) |
BSR Application-Location Pairs Per System |
An object that contains the system limit of BSR application-location pairs per system. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecBkgrdBsrPollVdnUsed |
.19 |
R |
Integer32 (0..99999) |
Background BSR Poll VDNs |
An object that contains the number of used background BSR Poll VDNs. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecBkgrdBsrPollVdnAvail |
.20 |
R |
Integer32 (0..99999) |
Background BSR Poll VDNs |
An object that contains the number of available background BSR Poll VDNs. . |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecBkgrdBsrPollVdnSysLim |
.21 |
R |
Integer32 (0..99999) |
Background BSR Poll VDNs |
An object that contains the system limit of background BSR Poll VDNs. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecVecComStepsUsed |
.22 |
R |
Integer32 (0..99999) |
Vector Comment Steps (non-blank) |
An object that contains the number of used vector comment steps. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecVecComStepsAvail |
.23 |
R |
Integer32 (0..99999) |
Vector Comment Steps (non-blank) |
An object that contains the number of available vector comment steps. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecVecComStepsSysLim |
.24 |
R |
Integer32 (0..99999) |
Vector Comment Steps (non-blank) |
An object that contains the system limit of vector comment steps. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecPolicyRoutTblUsed |
.25 |
R |
Integer32 (0..99999) |
Policy Routing Tables |
An object that contains the number of used policy routing tables. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecPolicyRoutTblAvail |
.26 |
R |
Integer32 (0..99999) |
Policy Routing Tables |
An object that contains the number of available policy routing tables. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecPolicyRoutTblSysLim |
.27 |
R |
Integer32 (0..99999) |
Policy Routing Tables |
An object that contains the system limit of policy routing tables. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecPolicyRoutPtslUsed |
.28 |
R |
Integer32 (0..99999) |
Policy Routing Points |
An object that contains the number of used policy routing points. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecPolicyRoutPtsAvail |
.29 |
R |
Integer32 (0..99999) |
Policy Routing Points |
An object that contains the number of available policy routing points. |
SYSTEM CAPACITY |
|||||
avCmCapacityCallVecPolicyRoutPtsSysLim |
.30 |
R |
Integer32 (0..99999) |
Policy Routing Points |
An object that contains the system limit of policy routing points. |
SYSTEM CAPACITY |

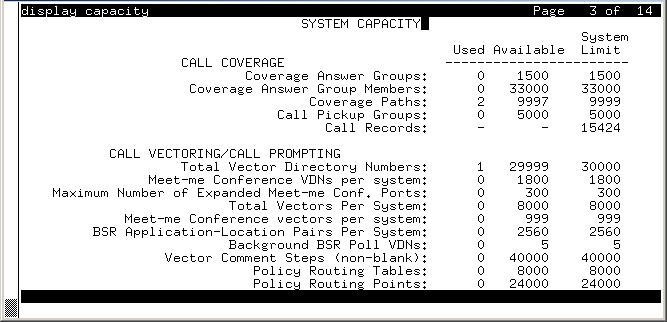

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmCapacityCallVec
avCmCapacityCallVecTotalVdnUsed.0 = INTEGER: 1
avCmCapacityCallVecTotalVdnAvail.0 = INTEGER: 29999
avCmCapacityCallVecTotalVdnSysLim.0 = INTEGER: 30000
avCmCapacityCallVecMeetMeVdnUsed.0 = INTEGER: 0
avCmCapacityCallVecMeetMeVdnAvail.0 = INTEGER: 1800
avCmCapacityCallVecMeetMeVdnSysLim.0 = INTEGER: 1800
avCmCapacityCallVecMaxExpMeetMePtsUsed.0 = INTEGER: 0
avCmCapacityCallVecMaxExpMeetMePtsAvail.0 = INTEGER: 300
avCmCapacityCallVecMaxExpMeetMePtsSysLim.0 = INTEGER: 300
avCmCapacityCallVecTotalVectorsUsed.0 = INTEGER: 0
64
avCmCapacityCallVecTotalVectorsAvail.0 = INTEGER: 8000
avCmCapacityCallVecTotalVectorsSysLim.0 = INTEGER: 8000
avCmCapacityCallVecMeetMeVectorsUsed.0 = INTEGER: 0
avCmCapacityCallVecMeetMeVectorsAvail.0 = INTEGER: 999
avCmCapacityCallVecMeetMeVectorsSysLim.0 = INTEGER: 999
avCmCapacityCallVecBsrAppLocPairsUsed.0 = INTEGER: 0
avCmCapacityCallVecBsrAppLocPairsAvail.0 = INTEGER: 2560
avCmCapacityCallVecBsrAppLocPairsSysLim.0 = INTEGER: 2560
avCmCapacityCallVecBkgrdBsrPollVdnUsed.0 = INTEGER: 0
avCmCapacityCallVecBkgrdBsrPollVdnAvail.0 = INTEGER: 5
avCmCapacityCallVecBkgrdBsrPollVdnSysLim.0 = INTEGER: 5
avCmCapacityCallVecVecComStepsUsed.0 = INTEGER: 0
avCmCapacityCallVecVecComStepsAvail.0 = INTEGER: 40000
avCmCapacityCallVecVecComStepsSysLim.0 = INTEGER: 40000
avCmCapacityCallVecPolicyRoutTblUsed.0 = INTEGER: 0
avCmCapacityCallVecPolicyRoutTblAvail.0 = INTEGER: 8000
avCmCapacityCallVecPolicyRoutTblSysLim.0 = INTEGER: 8000
avCmCapacityCallVecPolicyRoutPtslUsed.0 = INTEGER: 0
avCmCapacityCallVecPolicyRoutPtsAvail.0 = INTEGER: 24000
avCmCapacityCallVecPolicyRoutPtsSysLim.0 = INTEGER: 24000
