avCmMeasIpVoStatHrData
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasIVoStatHrData |
enterprises.6889.2.73.8.1.67 |
Table |
Description
The avCmMeasIpVoStatHrData MIB group displays the hourly data for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once an hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasIpVoStatHrData |
SAT |
list measurements ip voice-stats hourly data |
IP VOICE STATISTICS NETWORK REGION DATA REPORT |
Reference Document
A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed. The default super user can run this command.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasIpVoStatHrDataTable |
.1 |
n/a |
SEQUENCE OF AvCmMeasIpVoStatHrDataEntry |
n/a |
An object containing the avCmMeasIpVoStatHrData entries. |
avCmMeasIpVoStatHrDataEntry |
.1.1 |
n/a |
AvCmMeasIpVoStatHrDataEntry |
n/a |
An object containing the avCmMeasIpVoStatHData entry with the information that the switch sent. |
avCmMeasIpVoStatHrDataRegIdx |
.1.1.1 |
n/a |
Integer32 (1..2000) |
n/a |
An index in the network region. |
avCmMeasIpVoStatHrDataHourIdx |
.1.1.2 |
n/a |
Integer32 (0..20300) |
n/a |
An index that contains the measurements of the data voice statistics. |
avCmMeasIpVoStatHrDataIdx |
.1.1.3 |
n/a |
Integer32 (0..9999) |
n/a |
A unique index for the data voice statistics. |
avCmMeasIpVoStatHrDataRegion |
.1.1.4 |
R |
Integer32 (0..2000) |
List Command: Region |
An object containing the network region. |

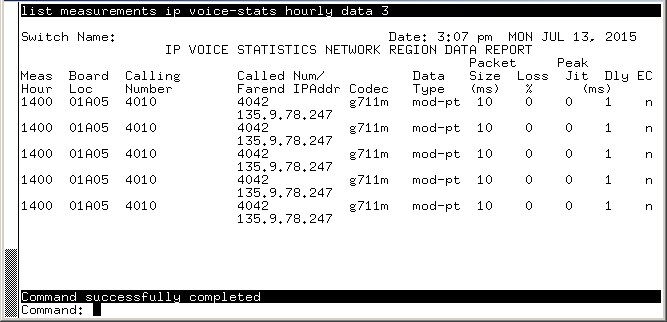

IP VOICE STATISTICS NETWORK REGION DATA REPORT |
|||||
avCmMeasIpVoStatHrDataMeasHour |
.1.1.5 |
R |
Integer32 (0..2300) |
Measurement Hour |
An object containing the measurement hour. |
IP VOICE STATISTICS NETWORK REGION DATA REPORT |
|||||
avCmMeasIpVoStatHrDataRunTime |
.1.1.6 |
R |
SnmpAdminString (SIZE (0..28)) |
Date |
An object containing the date. |
IP VOICE STATISTICS NETWORK REGION DATA REPORT |
|||||
avCmMeasIpVoStatHrDataBoardLoc |
.1.1.7 |
R |
SnmpAdminString (SIZE (0..6)) |
Board Loc |
An object containing the board location. |
IP VOICE STATISTICS NETWORK REGION DATA REPORT |
|||||
avCmMeasIpVoStatHrDataCallingNum |
.1.1.8 |
R |
SnmpAdminString (SIZE (0..17)) |
Calling Number |
An object containing the calling number. |
IP VOICE STATISTICS NETWORK REGION DATA REPORT |
|||||
avCmMeasIpVoStatHrDataCalledNum |
.1.1.9 |
R |
SnmpAdminString (SIZE (0..17)) |
Called Number |
An object containing the called number. |
IP VOICE STATISTICS NETWORK REGION DATA REPORT |
|||||
avCmMeasIpVoStatHrDataCodec |
.1.1.10 |
R |
SnmpAdminString (SIZE (0..8)) |
Codec |
An object containing the codec used for the call. |
IP VOICE STATISTICS NETWORK REGION DATA REPORT |
|||||
avCmMeasIpVoStatHrDataDataType |
.1.1.11 |
R |
SnmpAdminString (SIZE (0..7)) |
Data Type |
An object containing the type of the call: ttyrel (TTY Relay), mod-pt (Modem pass-through), fax-pt (FAX pass-through), tty-pt (TTY pass-through), t38fax (T.38 FAX), faxrel (FAX relay), modrel (Modem relay) |
IP VOICE STATISTICS NETWORK REGION DATA REPORT |
|||||
avCmMeasIpVoStatHrDataPktSize |
.1.1.12 |
R |
SnmpAdminString (SIZE (0..999)) |
Pkt Size |
An object containing the packet size of each data stream of the call in milliseconds. |
IP VOICE STATISTICS NETWORK REGION DATA REPORT |
|||||
avCmMeasIpVoStatHrDataLostPerc |
.1.1.13 |
R |
SnmpAdminString (SIZE (0..4)) |
Loss% |
An object containing the total packet loss during the call in percentage. The packet lost is calculated at 10-second intervals. |
IP VOICE STATISTICS NETWORK REGION DATA REPORT |
|||||
avCmMeasIpVoStatHrDataPeakJitter |
.1.1.14 |
R |
Integer32 (0..9999) |
Peak Jit |
An object containing the peak jitter during the call in milliseconds. |
IP VOICE STATISTICS NETWORK REGION DATA REPORT |
|||||
avCmMeasIpVoStatHrDataPeakDly |
.1.1.15 |
R |
Integer32 (0..9999) |
Dly |
An object containing the two-delay during the call in milliseconds. |
IP VOICE STATISTICS NETWORK REGION DATA REPORT |
|||||
avCmMeasIpVoStatHrDataDataEC |
.1.1.16 |
R |
SnmpAdminString (SIZE (0..2)) |
EC |
an object containing the status of echo cancellation. |
IP VOICE STATISTICS NETWORK REGION DATA REPORT |
|||||
avCmMeasIpVoStatHrDataFarIPAddr |
.1.1.17 |
R |
SnmpAdminString (SIZE (0..41)) |
Farend IPAddr |
An object containing the far end IP address. |
IP VOICE STATISTICS NETWORK REGION DATA REPORT |
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 40 -v2c -Os -c public localhost -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatHrData
avCmMeasIpVoStatHrDataRegion.3.1400.1 = INTEGER: 3
avCmMeasIpVoStatHrDataRegion.3.1400.2 = INTEGER: 3
avCmMeasIpVoStatHrDataRegion.3.1400.3 = INTEGER: 3
avCmMeasIpVoStatHrDataRegion.3.1400.4 = INTEGER: 3
avCmMeasIpVoStatHrDataRegion.3.1400.5 = INTEGER: 3
avCmMeasIpVoStatHrDataRegion.12.1400.1 = INTEGER: 12
avCmMeasIpVoStatHrDataRegion.12.1400.2 = INTEGER: 12
avCmMeasIpVoStatHrDataRegion.12.1400.3 = INTEGER: 12
avCmMeasIpVoStatHrDataRegion.12.1400.4 = INTEGER: 12
avCmMeasIpVoStatHrDataRegion.12.1400.5 = INTEGER: 12
avCmMeasIpVoStatHrDataMeasHour.3.1400.1 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.3.1400.2 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.3.1400.3 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.3.1400.4 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.3.1400.5 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.12.1400.1 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.12.1400.2 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.12.1400.3 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.12.1400.4 = INTEGER: 1400
avCmMeasIpVoStatHrDataMeasHour.12.1400.5 = INTEGER: 1400
avCmMeasIpVoStatHrDataRunTime.3.1400.1 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.3.1400.2 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.3.1400.3 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.3.1400.4 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.3.1400.5 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.12.1400.1 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.12.1400.2 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.12.1400.3 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.12.1400.4 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataRunTime.12.1400.5 = STRING: 3:14 pm MON JUL 13, 2015
avCmMeasIpVoStatHrDataBoardLoc.3.1400.1 = STRING: 01A05
avCmMeasIpVoStatHrDataBoardLoc.3.1400.2 = STRING: 01A05
avCmMeasIpVoStatHrDataBoardLoc.3.1400.3 = STRING: 01A05
avCmMeasIpVoStatHrDataBoardLoc.3.1400.4 = STRING: 01A05
avCmMeasIpVoStatHrDataBoardLoc.3.1400.5 = STRING: 01A05
avCmMeasIpVoStatHrDataBoardLoc.12.1400.1 = STRING: 07A03
avCmMeasIpVoStatHrDataBoardLoc.12.1400.2 = STRING: 07A03
avCmMeasIpVoStatHrDataBoardLoc.12.1400.3 = STRING: 07A03
avCmMeasIpVoStatHrDataBoardLoc.12.1400.4 = STRING: 07A03
avCmMeasIpVoStatHrDataBoardLoc.12.1400.5 = STRING: 07A03
avCmMeasIpVoStatHrDataCallingNum.3.1400.1 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.3.1400.2 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.3.1400.3 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.3.1400.4 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.3.1400.5 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.12.1400.1 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.12.1400.2 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.12.1400.3 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.12.1400.4 = STRING: 4010
avCmMeasIpVoStatHrDataCallingNum.12.1400.5 = STRING: 4010
avCmMeasIpVoStatHrDataCalledNum.3.1400.1 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.3.1400.2 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.3.1400.3 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.3.1400.4 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.3.1400.5 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.12.1400.1 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.12.1400.2 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.12.1400.3 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.12.1400.4 = STRING: 4042
avCmMeasIpVoStatHrDataCalledNum.12.1400.5 = STRING: 4042
avCmMeasIpVoStatHrDataCodec.3.1400.1 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.3.1400.2 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.3.1400.3 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.3.1400.4 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.3.1400.5 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.12.1400.1 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.12.1400.2 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.12.1400.3 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.12.1400.4 = STRING: g711m
avCmMeasIpVoStatHrDataCodec.12.1400.5 = STRING: g711m
avCmMeasIpVoStatHrDataDataType.3.1400.1 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.3.1400.2 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.3.1400.3 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.3.1400.4 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.3.1400.5 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.12.1400.1 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.12.1400.2 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.12.1400.3 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.12.1400.4 = STRING: mod-pt
avCmMeasIpVoStatHrDataDataType.12.1400.5 = STRING: mod-pt
avCmMeasIpVoStatHrDataPktSize.3.1400.1 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.3.1400.2 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.3.1400.3 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.3.1400.4 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.3.1400.5 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.12.1400.1 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.12.1400.2 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.12.1400.3 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.12.1400.4 = INTEGER: 10
avCmMeasIpVoStatHrDataPktSize.12.1400.5 = INTEGER: 10
avCmMeasIpVoStatHrDataLossPerc.3.1400.1 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.3.1400.2 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.3.1400.3 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.3.1400.4 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.3.1400.5 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.12.1400.1 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.12.1400.2 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.12.1400.3 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.12.1400.4 = STRING: 0
avCmMeasIpVoStatHrDataLossPerc.12.1400.5 = STRING: 0
avCmMeasIpVoStatHrDataPeakJitter.3.1400.1 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.3.1400.2 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.3.1400.3 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.3.1400.4 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.3.1400.5 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.12.1400.1 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.12.1400.2 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.12.1400.3 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.12.1400.4 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakJitter.12.1400.5 = INTEGER: 0
avCmMeasIpVoStatHrDataPeakDly.3.1400.1 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.3.1400.2 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.3.1400.3 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.3.1400.4 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.3.1400.5 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.12.1400.1 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.12.1400.2 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.12.1400.3 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.12.1400.4 = INTEGER: 1
avCmMeasIpVoStatHrDataPeakDly.12.1400.5 = INTEGER: 1
avCmMeasIpVoStatHrDataEC.3.1400.1 = STRING: n
avCmMeasIpVoStatHrDataEC.3.1400.2 = STRING: n
avCmMeasIpVoStatHrDataEC.3.1400.3 = STRING: n
avCmMeasIpVoStatHrDataEC.3.1400.4 = STRING: n
avCmMeasIpVoStatHrDataEC.3.1400.5 = STRING: n
avCmMeasIpVoStatHrDataEC.12.1400.1 = STRING: n
avCmMeasIpVoStatHrDataEC.12.1400.2 = STRING: n
avCmMeasIpVoStatHrDataEC.12.1400.3 = STRING: n
avCmMeasIpVoStatHrDataEC.12.1400.4 = STRING: n
avCmMeasIpVoStatHrDataEC.12.1400.5 = STRING: n
avCmMeasIpVoStatHrDataFarIpAddr.3.1400.1 = STRING: 135.9.78.247
avCmMeasIpVoStatHrDataFarIpAddr.3.1400.2 = STRING: 135.9.78.247
avCmMeasIpVoStatHrDataFarIpAddr.3.1400.3 = STRING: 135.9.78.247
avCmMeasIpVoStatHrDataFarIpAddr.3.1400.4 = STRING: 135.9.78.247
avCmMeasIpVoStatHrDataFarIpAddr.3.1400.5 = STRING: 135.9.78.247
avCmMeasIpVoStatHrDataFarIpAddr.12.1400.1 = STRING: 135.9.78.205
avCmMeasIpVoStatHrDataFarIpAddr.12.1400.2 = STRING: 135.9.78.205
avCmMeasIpVoStatHrDataFarIpAddr.12.1400.3 = STRING: 135.9.78.205
avCmMeasIpVoStatHrDataFarIpAddr.12.1400.4 = STRING: 135.9.78.205
avCmMeasIpVoStatHrDataFarIpAddr.12.1400.5 = STRING: 135.9.78.205
