Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmConfiguration
MIB group name |
OID |
Type |
|---|---|---|
avCmConfiguration |
enterprises.6889.2.73.8.1.3 |
Table |
Description

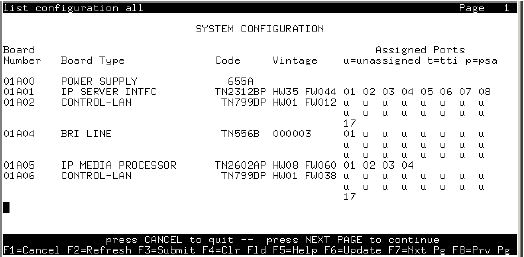

The avCmConfiguration MIB group displays the output from the list configuration all command. The list configuration all generates a SYSTEM CONFIGURATIONreport which includes the type, code, suffix, and vintage of the circuit packs installed in the system.
Releases Supported
6.3.100 and later
Polling Type
Inventory and Configuration
Polling Interval
No more than once a day or after configuration changes.
Default Caching Interval
60 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Red/High: The data collected by this MIB Group increases as the number of boards in the system increase. Consequently, this data could be very large and therefore may take a very long time to collect and could impact system performance.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmConfiguration |
SAT |
list configuration all |
SYSTEM CONFIGURATION |
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmConfigurationTable |
.1 |
n/a |
n/a |
n/a |
A list of the avCmConfiguration entries. |
avCmConfigurationEntry |
.1.1 |
n/a |
n/a |
n/a |
A avCmConfiguration entry containing objects of the avCmConfiguration information sent by the switch. |
avCmConfigurationBoardIdx |
.1.1.1 |
n/a |
SnmpAdminString (SIZE (0..10)) |
n/a |
An object that contains that uniquely identifies a board based on its location in the system. The syntax for the Board Number is as follows: cabinet(01-64):carrier(A-E):slot(01-20). |
avCmConfigurationBoardNumber |
.1.1.2 |
R |
SnmpAdminString (SIZE (0..8)) |
Board Number |
An object that contains that uniquely identifies a board based on its location in the system. The syntax for the Board Number is as follows: cabinet(01-64):carrier(A-E):slot(01-20). |
SYSTEM CONFIGURATION |
|||||
avCmConfigurationBoardType |
.1.1.3 |
R |
SnmpAdminString (SIZE (0..20)) |
Board Type |
An object containing the type of board. |
SYSTEM CONFIGURATION |
|||||
avCmConfigurationCode |
.1.1.4 |
R |
SnmpAdminString (SIZE (0..11)) |
Code |
An object that contains a the board code and suffix of the board. |
SYSTEM CONFIGURATION |
|||||
avCmConfigurationVintage |
.1.1.5 |
R |
SnmpAdminString (SIZE (0..11)) |
Vintage |
An object that contains vintage of the board. |
SYSTEM CONFIGURATION |
|||||
avCmConfigurationAssignedPorts |
.1.1.6 |
R |
SnmpAdminString (SIZE (0..193)) |
Assigned Ports |
An object that specifies the assignment of the ports. |
SYSTEM CONFIGURATION |
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 20 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmConfiguration
avCmConfigurationBoardNumber."01A" = STRING: 01A
avCmConfigurationBoardNumber."02A" = STRING: 02A
:
:
avCmConfigurationBoardNumber."07B14" = STRING: 07B14
avCmConfigurationBoardType."01A" = STRING: IP SERVER INTFC
avCmConfigurationBoardType."02A" = STRING: IP SERVER INTFC
:
:
avCmConfigurationBoardType."07B14" = STRING: ANALOG LINE
avCmConfigurationCode."01A" = STRING: TN2312BP
avCmConfigurationCode."02A" = STRING: TN2312BP
:
:
vCmConfigurationCode."07B14" = STRING: TN793
avCmConfigurationVintage."01A" = STRING: HW35 FW044
avCmConfigurationVintage."02A" = STRING: HW07 FW078
:
:
avCmConfigurationVintage."07B14" = STRING: 000004
avCmConfigurationAssignedPorts."01A" = STRING: 01 02 03 04 05 06 07 08
avCmConfigurationAssignedPorts."02A" = STRING: 01 02 03 04 05 06 07 08
:
:
avCmConfigurationAssignedPorts."03A" = STRING:
avCmConfigurationAssignedPorts."07B14" = STRING: u u u u u u u u u u u u u u u u u u u u u u u u
