Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListHuntGrp
MIB group name |
OID |
Type |
|---|---|---|
avCmListHuntGrp |
enterprises.6889.2.73.8.1.16 |
Scalar |
Description
The avCmListHuntGrp MIB Group uses the display capacity command to retrieve the HUNT GROUPS capacity information under the HUNT GROUPS, SPLITS, OR SKILLS section of SYSTEM CAPACITY form.
Releases Supported
6.3.100 and later
Polling Type
Configuration, Inventory, and Performance/Utilization
Polling Interval
No more than once every 20 minutes.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmListHuntGrp |
SAT |
display capacity |
SYSTEM CAPACITY |
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmCapacityHuntGrpsSpSkUsed |
.1 |
R |
Integer32 (0..99999) |
Groups/Splits/Skills |
An object that contains the number of used Groups/Splits/Skills. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsSpSkAvail |
.2 |
R |
Integer32 (0..99999) |
Groups/Splits/Skills |
An object that contains the number of available Groups/Splits/Skills. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsSpSkSysLim |
.3 |
R |
Integer32 (0..99999) |
Groups/Splits/Skills |
An object that contains the system limit of Groups/Splits/Skills. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsAdmLogAgtUsed |
.4 |
R |
Integer32 (0..99999) |
Administered Logical Agents |
An object that contains the number of used administered logical agents. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsAdmLogAgtAvail |
.5 |
R |
Integer32 (0..99999) |
Administered Logical Agents |
An object that contains the number of available administered logical agents. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsAdmLogAgtSysLim |
.6 |
R |
Integer32 (0..99999) |
Administered Logical Agents |
An object that contains the system limit of administered logical agents. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsAdmLogAgtSkPrUsed |
.7 |
R |
Integer32 (0..99999) |
Administered Logical Agent-Skill Pairs |
An object that contains the number of used administered logical agent-skill pairs. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsAdmLogAgtSkPrAvail |
.8 |
R |
Integer32 (0..99999) |
Administered Logical Agent-Skill Pairs |
An object that contains the number of available administered logical agent-skill pairs. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsAdmLogAgtSkPrSysLim |
.9 |
R |
Integer32 (0..99999) |
Administered Logical Agent-Skill Pairs |
An object that contains the system limit of administered logical agent-skill pairs. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsLogAcdAgtUsed |
.10 |
R |
Integer32 (0..99999) |
Logged-In ACD Agents |
An object that contains the number of used logged-in ACD agents. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsLogAcdAgtUsed |
.11 |
R |
Integer32 (0..99999) |
Logged-In ACD Agents |
An object that contains the number of available logged-in ACD agents. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsLogAcdAgtUsed |
.12 |
R |
Integer32 (0..99999) |
Logged-In ACD Agents |
An object that contains the system limit of logged-in ACD agents. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsLogAdvocAgtUsed |
.13 |
R |
Integer32 (0..99999) |
Logged-In Advocate Agents |
An object that contains the number of used logged-in advocate agents. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsLogAdvocAgtAvail |
.14 |
R |
Integer32 (0..99999) |
Logged-In Advocate Agents |
An object that contains the number of available logged-in advocate agents. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsLogAdvocAgtSysLim |
.15 |
R |
Integer32 (0..99999) |
Logged-In Advocate Agents |
An object that contains the system limit of logged-in advocate agents. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsLogIPSoftAgtUsed |
.16 |
R |
Integer32 (0..99999) |
Logged-In IP Softphone Agents |
An object that contains the number of used logged-in softphone agents. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsLogIPSoftAgtAvail |
.17 |
R |
Integer32 (0..99999) |
Logged-In IP Softphone Agents |
An object that contains the number of available logged-in softphone agents. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsLogIPSoftAgtSysLim |
.18 |
R |
Integer32 (0..99999) |
Logged-In IP Softphone Agents |
An object that contains the number of used logged-in SIP EAS agents. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsLogSipEasAgtUsed |
.19 |
R |
Integer32 (0..99999) |
Logged-In SIP EAS Agents |
An object that contains the number of used background BSR Poll VDNs. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsLogSipEasAgtAvail |
.20 |
R |
Integer32 (0..99999) |
Logged-In SIP EAS Agents |
An object that contains the number of available logged-in SIP EAS agents. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsLogSipEasAgtSysLim |
.21 |
R |
Integer32 (0..99999) |
Logged-In SIP EAS Agents |
An object that contains the number of available logged-in SIP EAS agents. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsGrpsMemPerSysUsed |
.22 |
R |
Integer32 (0..99999) |
Group Members Per System |
An object that contains the number of used vector comment steps. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsGrpsMemPerSysAvail |
.23 |
R |
Integer32 (0..99999) |
Group Members Per System |
An object that contains the number of used group members per system. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsGrpsMemPerSysSysLim |
.24 |
R |
Integer32 (0..99999) |
Group Members Per System |
An object that contains the system limit of group members per system. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsCmsMeasAcdMemUsed |
.25 |
R |
Integer32 (0..99999) |
CMS Measured ACD Members |
An object that contains the number of used CMS Measured ACD members. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsCmsMeasAcdMemAvail |
.26 |
R |
Integer32 (0..99999) |
CMS Measured ACD Members |
An object that contains the number of CMS Measured ACD members. |
SYSTEM CAPACITY |
|||||
avCmCapacityHuntGrpsCmsMeasAcdMemSysLim |
.27 |
R |
Integer32 (0..99999) |
CMS Measured ACD Members |
An object that contains the system limit of CMS Measured ACD members. |
SYSTEM CAPACITY |

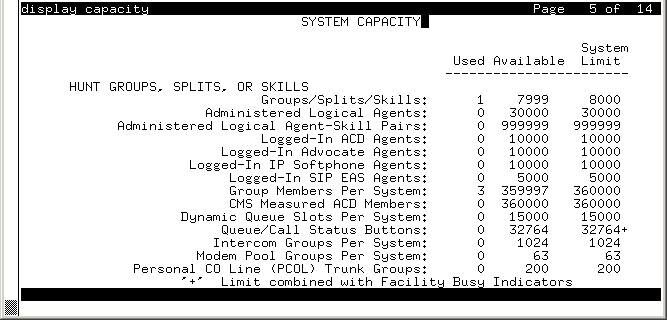

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmCapacityHuntGrps
avCmCapacityHuntGrpsSpSkUsed.0 = INTEGER: 1
avCmCapacityHuntGrpsSpSkAvail.0 = INTEGER: 7999
avCmCapacityHuntGrpsSpSkSysLim.0 = INTEGER: 8000
avCmCapacityHuntGrpsAdmLogAgtUsed.0 = INTEGER: 0
avCmCapacityHuntGrpsAdmLogAgtAvail.0 = INTEGER: 30000
avCmCapacityHuntGrpsAdmLogAgtSysLim.0 = INTEGER: 30000
avCmCapacityHuntGrpsAdmLogAgtSkPrUsed.0 = INTEGER: 0
avCmCapacityHuntGrpsAdmLogAgtSkPrAvail.0 = INTEGER: 999999
avCmCapacityHuntGrpsAdmLogAgtSkPrSysLim.0 = INTEGER: 999999
avCmCapacityHuntGrpsLogAcdAgtUsed.0 = INTEGER: 0
avCmCapacityHuntGrpsLogAcdAgtAvail.0 = INTEGER: 10000
avCmCapacityHuntGrpsLogAcdAgtSysLim.0 = INTEGER: 10000
avCmCapacityHuntGrpsLogAdvocAgtUsed.0 = INTEGER: 0
avCmCapacityHuntGrpsLogAdvocAgtAvail.0 = INTEGER: 10000
avCmCapacityHuntGrpsLogAdvocAgtSysLim.0 = INTEGER: 10000
avCmCapacityHuntGrpsLogIPSoftAgtUsed.0 = INTEGER: 0
avCmCapacityHuntGrpsLogIPSoftAgtAvail.0 = INTEGER: 10000
avCmCapacityHuntGrpsLogIPSoftAgtSysLim.0 = INTEGER: 10000
avCmCapacityHuntGrpsLogSipEasAgtUsed.0 = INTEGER: 0
avCmCapacityHuntGrpsLogSipEasAgtAvail.0 = INTEGER: 5000
avCmCapacityHuntGrpsLogSipEasAgtSysLim.0 = INTEGER: 5000
