Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasOccSum
In Communication Manager Release 8.0, occupancy OID has been deprecated and replaced by the following occupancy OID corresponding to the avCmMeasOccSum MIB.
MIB group name |
New OID name |
New OID |
Type |
|---|---|---|---|
avCmMeasOccSum |
avCmMeasOccSumOcc |
enterprises.6889.2.73.8.1.32.1.1.16 |
Table |
Description
The avCmMeasOccSum MIB Group uses the list measurements occupancy summary command to retrieve the summary of occupancy information.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once an hour. However, the form is completely updated once every 24 hours.
Default Caching Interval
300 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasOccSum |
SAT |
list measurements occupancy summary |
OCCUPANCY SUMMARY MEASUREMENTS |
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasOccSumTable |
.1 |
n/a |
SEQUENCE OF avCmMeasOccSumEntry |
n/a |
An object that contains a list of the avCmMeasOccSum entries |
avCmMeasOccSumEntry |
.1.1 |
n/a |
avCmMeasOccSumEntry |
n/a |
A avCmMeasOccSum entry containing objects of the avCmMeasOccSum information sent by the switch. |
avCmMeasOccSumIdx |
.1.1.1 |
n/a |
Integer32 (0..2300) |
n/a |
An object that uniquely identifies each Hour of data. |
avCmMeasOccSumMeasHour |
.1.1.2 |
R |
Integer32 (0..2300) |
Meas Hour |
An object containing the Hour the measurement was taken. |

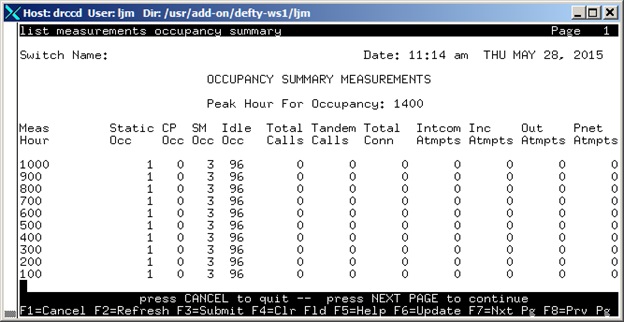

OCCUPANCY SUMMARY MEASUREMENTS |
|||||
avCmMeasOccSumRunDate |
.1.1.3 |
R |
SnmpAdminString (SIZE (0..27)) |
Date |
An object containing the Date the command was executed. |
OCCUPANCY SUMMARY MEASUREMENTS |
|||||
avCmMeasOccSumPeakHour |
.1.1.4 |
R |
Integer32 (0..2300) |
Peak Hour For Occupancy |
An object that contains the Peak Hour for Occupancy. |
OCCUPANCY SUMMARY MEASUREMENTS |
|||||
avCmMeasOccSumStatOcc |
.1.1.5 |
R |
Integer32 (0..100) |
Occupancy |
Object containing the processor utilized by static processes. |
OCCUPANCY SUMMARY MEASUREMENTS |
|||||
avCmMeasOccSumTotCall |
.1.1.9 |
R |
Integer32 (0..100) |
Total Calls |
An object containing the total calls connected to the measurement hour. |
OCCUPANCY SUMMARY MEASUREMENTS |
|||||
avCmMeasOccSumTandCall |
.1.1.10 |
R |
Integer32 (0..100) |
Tandem Calls |
An object containing trunk-to-trunk calls connected for the measurement hour. |
OCCUPANCY SUMMARY MEASUREMENTS |
|||||
avCmMeasOccSumTotConn |
.1.1.11 |
R |
Integer32 (0..100) |
Total Conn |
An object containing the total calls connected for the measurement hour. |
OCCUPANCY SUMMARY MEASUREMENTS |
|||||
avCmMeasOccSumIntcomAtt |
.1.1.12 |
R |
Integer32 (0..100) |
Intcom Atmpts |
An object containing the number of extension-to-extension calls on the same switch and partially completed calls for the measurement hour. |
OCCUPANCY SUMMARY MEASUREMENTS |
|||||
avCmMeasOccSumIncAtt |
.1.1.13 |
R |
Integer32 (0..100) |
Inc Atmpts |
An object containing the number of incoming trunk seizures from public network facilities. |
OCCUPANCY SUMMARY MEASUREMENTS |
|||||
avCmMeasOccSumOutAtt |
.1.1.14 |
R |
Integer32 (0..100) |
Out Atmpts |
An object containing the number of outgoing trunk seizures from public network facilities. |
OCCUPANCY SUMMARY MEASUREMENTS |
|||||
avCmMeasOccSumPnetAtt |
.1.1.15 |
R |
Integer32 (0..100) |
Pnet Atmpts |
An object containing the number of seizures from public network facilities. |
OCCUPANCY SUMMARY MEASUREMENTS |
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmMeasOccSum
avCmMeasOccSumMeasHour.0 = INTEGER: 0
avCmMeasOccSumMeasHour.100 = INTEGER: 100
:
:
avCmMeasOccSumMeasHour.2300 = INTEGER: 2300
avCmMeasOccSumRunDate.0 = STRING: 11:29 am THU MAY 28, 2015
avCmMeasOccSumRunDate.100 = STRING: 11:29 am THU MAY 28, 2015
:
:
avCmMeasOccSumRunDate.2300 = STRING: 11:29 am THU MAY 28, 2015
avCmMeasOccSumPeakHour.0 = INTEGER: 1400
avCmMeasOccSumPeakHour.100 = INTEGER: 1400
:
:
avCmMeasOccSumPeakHour.2300 = INTEGER: 1400
avCmMeasOccSumStatOcc.0 = INTEGER: 1
avCmMeasOccSumStatOcc.100 = INTEGER: 1
:
:
avCmMeasOccSumStatOcc.2300 = INTEGER: 1
avCmMeasOccSumCPOcc.0 = INTEGER: 0
avCmMeasOccSumCPOcc.100 = INTEGER: 0
:
:
avCmMeasOccSumCPOcc.200 = INTEGER: 0
avCmMeasOccSumCPOcc.300 = INTEGER: 0
avCmMeasOccSumCPOcc.2300 = INTEGER: 0
avCmMeasOccSumSMOcc.0 = INTEGER: 3
avCmMeasOccSumSMOcc.100 = INTEGER: 3
:
:
avCmMeasOccSumSMOcc.2300 = INTEGER: 3
avCmMeasOccSumIdleOcc.0 = INTEGER: 96
avCmMeasOccSumIdleOcc.100 = INTEGER: 96
:
:
avCmMeasOccSumIdleOcc.2300 = INTEGER: 96
avCmMeasOccSumTotCall.0 = INTEGER: 0
avCmMeasOccSumTotCall.100 = INTEGER: 0
avCmMeasOccSumTotCall.200 = INTEGER: 0
:
:
avCmMeasOccSumTotCall.2300 = INTEGER: 0
avCmMeasOccSumTandCall.0 = INTEGER: 0
avCmMeasOccSumTandCall.100 = INTEGER: 0
:
:
avCmMeasOccSumTandCall.2300 = INTEGER: 0
avCmMeasOccSumTotConn.0 = INTEGER: 0
avCmMeasOccSumTotConn.100 = INTEGER: 0
:
:
avCmMeasOccSumTotConn.2300 = INTEGER: 0
avCmMeasOccSumIntcomAtt.0 = INTEGER: 0
avCmMeasOccSumIntcomAtt.100 = INTEGER: 0
:
:
avCmMeasOccSumIntcomAtt.2300 = INTEGER: 0
avCmMeasOccSumIncAtt.0 = INTEGER: 0
avCmMeasOccSumIncAtt.100 = INTEGER: 0
:
:
avCmMeasOccSumIncAtt.2300 = INTEGER: 0
avCmMeasOccSumOutAtt.0 = INTEGER: 0
avCmMeasOccSumOutAtt.100 = INTEGER: 0
:
:
avCmMeasOccSumOutAtt.2300 = INTEGER: 0
avCmMeasOccSumPnetAtt.0 = INTEGER: 0
avCmMeasOccSumPnetAtt.100 = INTEGER: 0
:
:
avCmMeasOccSumPnetAtt.2300 = INTEGER: 0
