Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmStatusTrunk
MIB group name |
OID |
Type |
|---|---|---|
avCmStatusTrunk |
enterprises.6889.2.73.8.1.26 |
Table |
Description
The avCmStatusTrunk MIB Group displays the output of the STATUS TRUNK xxxx command.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
The more TRUNK GROUPS and TRUNK GROUP MEMBERS, the frequently this MIB Group should be queried.
Default Caching Interval
300 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Red/High: The data collected by this MIB Group increases as the number of boards in the system increase. Consequently, this data could be very large and therefore may take a very long time to collect and could impact system performance.
Associated Communication Manager Commands:
This OID retrieves trunk member status for up to first 500 trunk members administered system-wide. For example, if trunk group 1 has more than 500 members, this OID never returns status for members in trunk groups other than trunk group 1.
Similarly, if trunk group 1 has 250 members and trunk 2 has 250 members, this OID never returns the status for trunk group members in groups other than 1 or 2. This limitation is created because of the occupancy problems when trying to retrieve more trunk member status. To get data on other trunk group members, use the avCmStatusTrunkRange OID or the avCmStatusTrunkMem OID.
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmStatusTrunk |
SAT |

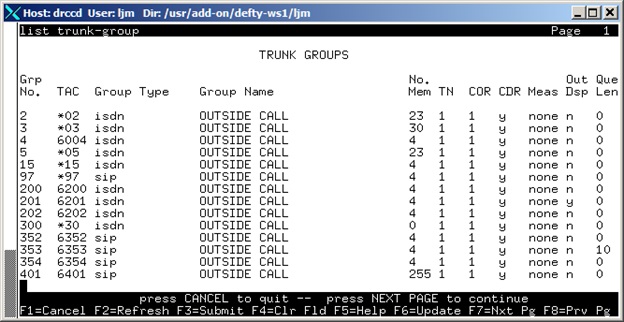

list trunk |
TRUNK GROUPS |
SAT |

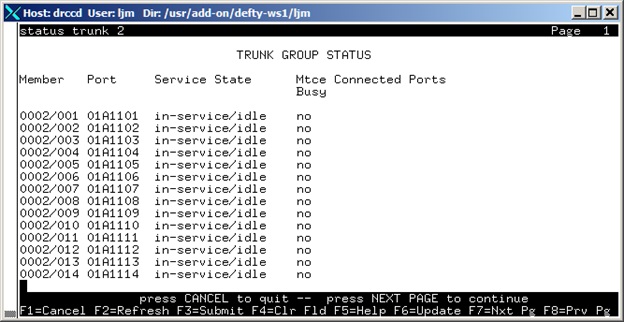

STATUS TRUNK xxxx |
TRUNK GROUP STATUS |
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmStatusTrunkGrp |
.1 |
R |
Integer32 (0..2000) |
n/a |
An object that contains the trunk group. |
avCmStatusTrunkMember |
.2 |
R |
Integer32 (0..255) |
n/a |
An object that contains the trunk group number. |
avCmStatusTrunkTable |
.3 |
n/a |
SEQUENCE OF avCmStatusTrunkEntry |
n/a |
An object that contains the trunk member entry. |
avCmStatusTrunkEntry |
.4.1 |
n/a |
avCmStatusTrunkEntry |
n/a |
An avCmStatusTrunk entry containing objects of the avCmStatusTrunk information sent by the switch. |
avCmStatusTrunkIdx |
.3.1.1 |
n/a |
w |
n/a |
An object that contains a avCmListMemTrunkRange entry containing objects of the avCmListMemTrunkRange information sent by the switch. |
avCmStatusTrunkMemberIdx |
.3.1.2 |
n/a |
Integer32 (0..2000) |
n/a |
An index that contains the Member No. for the Trunk Group. |
avCmStatusTrunkMemMember |
.3.1.3 |
R |
Integer32 (0..255) |
List Command: Member No. Display Command: Member No. |
An index that contains the Member No. for the Trunk Group. |
avCmStatusTrunkPort |
.3.1.4 |
R |
SnmpAdminString (SIZE (0..12)) |
Type |
An object that contains the Trunk member port. |
TRUNK GROUP STATUS |
|||||
avCmListTrunkServiceType |
.3.1.5 |
R |
SnmpAdminString (SIZE (0..19)) |
Name |
An object containing the member service state. |
TRUNK GROUP STATUS |
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmStatusTrunk
avCmStatusTrunkMemMember.2.1 = INTEGER: 1
avCmStatusTrunkMemMember.2.2 = INTEGER: 2
avCmStatusTrunkMemMember.2.3 = INTEGER: 3
:
:
avCmStatusTrunkMemMember.604.2 = INTEGER: 2
avCmStatusTrunkPort.2.1 = STRING: 01A1101
avCmStatusTrunkPort.2.2 = STRING: 01A1102
:
:
avCmStatusTrunkPort.604.2 = STRING: 02A0502
avCmStatusTrunkServiceState.2.1 = STRING: in-service/idle
avCmStatusTrunkServiceState.2.2 = STRING: in-service/idle
:
avCmStatusTrunkServiceState.604.2 = STRING: out-of-service-NE
