Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasIpVoStatSumRtdelLstHr
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasIpVoStatSumRtdelLstHr |
enterprises.6889.2.73.8.1.74 |
Table |
Description
The avCmMeasIpVoStatSumRtdelLstHr MIB group displays the packet delay recorded during calls in the previous hour for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once an hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasIpVoStatSumRtdelLstHr |
SAT |
list measurements ip voice-stats rtdelay last-hour |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
Reference Document
A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed. The default super user can run this command.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasIpVoStatSumRtdelLstHrTable |
.1 |
n/a |
SEQUENCE OF avCmMeasIpVoStatSumRtdelLstHrEntry |
n/a |
An object containing the avCmMeasIpVoStatSumRtdelLstHr entries. |
avCmMeasIpVoStatSumRtdelLstHrEntry |
.1.1 |
n/a |
avCmMeasIpVoStatSumRtdelLstHrEntry |
n/a |
An object containing the avCmMeasIpVoStatSumRtdelLstHr entry with the information that the switch sent. |
avCmMeasIpVoStatSumRtdelLstHrRegIdx |
.1.1.1 |
n/a |
Integer32 (1..2000) |
n/a |
An index in the network region. |
avCmMeasIpVoStatSumRtdelLstHrHourIdx |
.1.1.2 |
n/a |
Integer32 (1..2300) |
n/a |
An index containing the measurements of the packet loss voice statistics in the 24-hour format. |
avCmMeasIpVoStatSumRtdelLstHrHourIdx |
.1.1.3 |
n/a |
Integer32 (1..9999) |
n/a |
An index containing the measurements of the packet loss voice statistics in the 24-hour format. |
avCmMeasIpVoStatSumRtdelLstHrRegion |
.1.1.4 |
R |
Integer32 (1..2000) |
List Command: Region |
An object containing the network region. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrMeasHour |
.1.1.5 |
R |
Integer32 (1..2300) |
Measurement Hour |
An object that containing the measurement hour. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrRunTime |
.1.1.6 |
R |
SnmpAdminString (SIZE (0..28)) |
Date |
An object containing the date |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrBoardLoc |
.1.1.7 |
R |
SnmpAdminString (SIZE (0..6)) |
Board Loc |
An object containing the board location. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrCallingNum |
.1.1.8 |
R |
SnmpAdminString (SIZE (0..17)) |
Calling Number |
An object containing the calling number. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrCalledNum |
.1.1.9 |
R |
SnmpAdminString (SIZE (0..17)) |
Called Number |
An object containing the called number. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrDstReg |
.1.1.10 |
R |
Integer32 (0..9999) |
Pkt Size |
An object containing the packet size of each data stream in milliseconds. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrDstReg |
.1.1.11 |
R |
Integer32 (0..9999) |
Dst Reg |
An object containing the destination region. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrCodec |
.1.1.12 |
R |
SnmpAdminString (SIZE (0..58)) |
Codec |
An object containing the codec used for the call. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrAvg |
.1.1.13 |
R |
Integer32 (0..9999) |
RT-Delay Avg |
An object containing the average two-way packet delay in milliseconds. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrPeak |
.1.1.14 |
R |
Integer32 (0..999) |
RT-Delay Peak |
An object containing the peak two-way packet delay during a call. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrTimeCall |
.1.1.15 |
R |
SnmpAdminString (SIZE (0..5)) |
Time of Call |
An object containing the timestamp when the threshold was exceeded. The timestamp is displayed in the MMSS (minutes seconds) format.. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrDataCallr |
.1.1.16 |
R |
SnmpAdminString (SIZE (0..2)) |
Data Call |
An object containing the indication of a data call. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrEncryp |
.1.1.17 |
R |
SnmpAdminString (SIZE (0..2)) |
Encryp |
An object containing the status of encryption during a call. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrEC |
.1.1.18 |
R |
SnmpAdminString (SIZE (0..2)) |
EC |
An object containing the status of echo cancellation during a call. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |
|||||
avCmMeasIpVoStatSumRtdelLstHrFEAddr |
.1.1.19 |
R |
SnmpAdminString (SIZE (0..41)) |
FE-Addr |
An object containing the far-end IP address. |
IP VOICE STATISTICS SUMMARY RTDELAY REPORT |

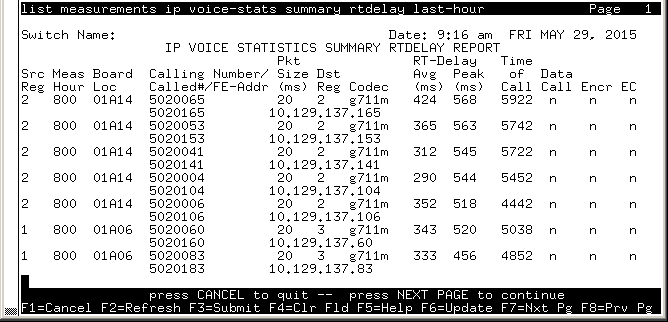

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatSumRtdelLstHr
avCmMeasIpVoStatSumRtdelLstHrRegion.1.800.1 = INTEGER: 1
avCmMeasIpVoStatSumRtdelLstHrRegion.1.800.2 = INTEGER: 1
:
:
avCmMeasIpVoStatSumRtdelLstHrRegion.4.800.5 = INTEGER: 4
avCmMeasIpVoStatSumRtdelLstHrMeasHour.1.800.1 = INTEGER: 800
avCmMeasIpVoStatSumRtdelLstHrMeasHour.1.800.2 = INTEGER: 800
:
:
avCmMeasIpVoStatSumRtdelLstHrMeasHour.4.800.5 = INTEGER: 800
avCmMeasIpVoStatSumRtdelLstHrRunTime.1.800.1 = STRING: 9:18 am FRI MAY 29, 2015
avCmMeasIpVoStatSumRtdelLstHrRunTime.1.800.2 = STRING: 9:18 am FRI MAY 29, 2015
:
:
MAY 29, 2015
avCmMeasIpVoStatSumRtdelLstHrRunTime.4.800.5 = STRING: 9:18 am FRI MAY 29, 2015
avCmMeasIpVoStatSumRtdelLstHrBoardLoc.1.800.1 = STRING: 01A06
avCmMeasIpVoStatSumRtdelLstHrBoardLoc.1.800.2 = STRING: 01A06
:
:
avCmMeasIpVoStatSumRtdelLstHrBoardLoc.4.800.5 = STRING: 01A04
avCmMeasIpVoStatSumRtdelLstHrCallingNum.1.800.1 = STRING: 5020060
avCmMeasIpVoStatSumRtdelLstHrCallingNum.1.800.2 = STRING: 5020083
:
:
avCmMeasIpVoStatSumRtdelLstHrCallingNum.4.800.5 = STRING: 5020100
avCmMeasIpVoStatSumRtdelLstHrCalledNum.1.800.1 = STRING: 5020160
avCmMeasIpVoStatSumRtdelLstHrCalledNum.1.800.2 = STRING: 5020183
:
:
avCmMeasIpVoStatSumRtdelLstHrCalledNum.4.800.5 = STRING: 5020200
avCmMeasIpVoStatSumRtdelLstHrPktSize.1.800.1 = INTEGER: 20
avCmMeasIpVoStatSumRtdelLstHrPktSize.1.800.2 = INTEGER: 20
:
:
avCmMeasIpVoStatSumRtdelLstHrPktSize.4.800.5 = INTEGER: 20
avCmMeasIpVoStatSumRtdelLstHrDstReg.1.800.1 = INTEGER: 3
avCmMeasIpVoStatSumRtdelLstHrDstReg.1.800.2 = INTEGER: 3
:
:
avCmMeasIpVoStatSumRtdelLstHrDstReg.4.800.5 = INTEGER: 4
avCmMeasIpVoStatSumRtdelLstHrCodec.1.800.1 = STRING: g711m
avCmMeasIpVoStatSumRtdelLstHrCodec.1.800.2 = STRING: g711m
:
:
avCmMeasIpVoStatSumRtdelLstHrCodec.4.800.5 = STRING: g711m
avCmMeasIpVoStatSumRtdelLstHrAvg.1.800.1 = INTEGER: 343
avCmMeasIpVoStatSumRtdelLstHrAvg.1.800.2 = INTEGER: 333
:
:
avCmMeasIpVoStatSumRtdelLstHrAvg.4.800.5 = INTEGER: 117
avCmMeasIpVoStatSumRtdelLstHrPeak.1.800.1 = INTEGER: 520
avCmMeasIpVoStatSumRtdelLstHrPeak.1.800.2 = INTEGER: 456
:
:
avCmMeasIpVoStatSumRtdelLstHrPeak.4.800.5 = INTEGER: 277
avCmMeasIpVoStatSumRtdelLstHrTimeCall.1.800.1 = STRING: 5038
avCmMeasIpVoStatSumRtdelLstHrTimeCall.1.800.2 = STRING: 4852
:
:
avCmMeasIpVoStatSumRtdelLstHrTimeCall.4.800.5 = STRING: 4456
avCmMeasIpVoStatSumRtdelLstHrDataCall.1.800.1 = STRING: n
avCmMeasIpVoStatSumRtdelLstHrDataCall.1.800.2 = STRING: n
:
:
avCmMeasIpVoStatSumRtdelLstHrDataCall.4.800.5 = STRING: n
avCmMeasIpVoStatSumRtdelLstHrEncryp.1.800.1 = STRING: n
avCmMeasIpVoStatSumRtdelLstHrEncryp.1.800.2 = STRING: n
:
:
avCmMeasIpVoStatSumRtdelLstHrEncryp.2.800.5 = STRING: n
avCmMeasIpVoStatSumRtdelLstHrEncryp.3.800.1 = STRING: n
avCmMeasIpVoStatSumRtdelLstHrEncryp.3.800.2 = STRING: n
:
:
avCmMeasIpVoStatSumRtdelLstHrEncryp.4.800.5 = STRING: n
avCmMeasIpVoStatSumRtdelLstHrEC.1.800.1 = STRING: n
avCmMeasIpVoStatSumRtdelLstHrEC.1.800.2 = STRING: n
:
:
avCmMeasIpVoStatSumRtdelLstHrEC.4.800.5 = STRING: y
avCmMeasIpVoStatSumRtdelLstHrFEAddr.1.800.1 = STRING: 10.129.137.60
avCmMeasIpVoStatSumRtdelLstHrFEAddr.1.800.2 = STRING: 10.129.137.83
:
:
avCmMeasIpVoStatSumRtdelLstHrFEAddr.4.800.5 = STRING: 10.129.137.100
vit@server1>
