Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasIpVoStatSumPkLosLstHr
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasIVoStatSumPkLosYest |
enterprises.6889.2.73.8.1.71 |
Table |
Description
The avCmMeasIpVoStatSumPkLosLstHr MIB group displays the packet loss recorded during calls in the previous hour for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once an hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasIpVoStatSumPkLosLstHr |
SAT |
list measurements ip voice-stats pktloss last-hour |
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
Reference Document
A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed. The default super user can run this command.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasIpVoStatSumPkLosLstHrTable |
..1 |
n/a |
SEQUENCE OF avCmMeasIpVoStatSumPkLosLstHrEntry |
n/a |
An object containing the avCmMeasIpVoStatSumPkLosLstHr entries. |
avCmMeasIpVoStatSumPkLosLstHrEntry |
..1.1 |
n/a |
avCmMeasIpVoStatSumPkLosLstHrEntry |
n/a |
An object containing the avCmMeasIpVoStatSumPkLosLstHr entry with the information that the switch sent. |
avCmMeasIpVoStatSumPkLosLstHrRegIdx |
..1.1.1 |
n/a |
Integer32 (1..2000) |
n/a |
An index in the network region. |
avCmMeasIpVoStatSumPkLosLstHrHourIdx |
..1.1.2 |
n/a |
Integer32 (1..2300) |
n/a |
An index containing the measurements of the PktLoss voice statistics. |
avCmMeasIpVoStatSumPkLosLstHrIdx |
..1.1.3 |
n/a |
Integer32 (1..9999) |
n/a |
An index containing the measurements of the pktloss voice statistics. |
avCmMeasIpVoStatSumPkLosLstHrRegion |
..1.1.4 |
R |
Integer32 (0..2000) |
List Command: Region |
An object that containing the network region. |
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
|||||
avCmMeasIpVoStatSumPkLosLstHrMeasHour |
.1.1.5 |
Integer32 (0..2300) |
Measurement Hour |
An object containing the hour. |
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
|||||
avCmMeasIpVoStatSumPkLosLstHrRunTime |
.1.1.6 |
R |
SnmpAdminString (SIZE (0..28)) |
Date |
An object containing the date. |
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
|||||
avCmMeasIpVoStatSumPkLosLstHrBoardLoc |
..1.1.7 |
SnmpAdminString (SIZE (0..6)) |
Board Loc |
An object containing the board location. |
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
|||||
avCmMeasIpVoStatSumPkLosLstHrCallingNum |
..1.1.8 |
SnmpAdminString (SIZE (0..17)) |
Calling Number |
An object containing the calling number. |
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
|||||
avCmMeasIpVoStatSumPkLosLstHrCalledNum |
..1.1.9 |
R |
SnmpAdminString (SIZE (0..17)) |
Called Number |
An object containing the called number. |
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
|||||
avCmMeasIpVoStatSumPkLosLstHrDstReg |
..1.1.10 |
R |
Integer32 (0..9999) |
Dst Reg |
An object containing the destination region. |
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
|||||
avCmMeasIpVoStatSumPkLosLstHrCodec |
..1.1.11 |
R |
SnmpAdminString (SIZE (0..8)) |
Codec |
An object containing the codec used for the call. |
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
|||||
avCmMeasIpVoStatSumPkLosLstHrTimeCall |
..1.1.12 |
R |
SnmpAdminString (SIZE (0..5)) |
Time of Call |
An object containing the timestamp when the threshold was exceeded. The timestamp is displayed in the MMSS (minutes seconds) format. |
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
|||||
avCmMeasIpVoStatSumPkLosLstHrUDPPort |
..1.1.13 |
SnmpAdminString (SIZE (0..6)) |
UDP Port |
An object containing the port used by the media processor for the call. |
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
|||||
avCmMeasIpVoStatSumPkLosLstHrPktSize |
..1.1.14 |
R |
Integer32 (0..999) |
Pkt Size |
An object containing the packet size of each data stream in milliseconds. |
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
|||||
avCmMeasIpVoStatSumPkLosLstHrTotnumLosPkts |
..1.1.15 |
R |
Integer32 (0..9999) |
Total # lost Pkts |
An object containing the total packets lost during a call. |
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
|||||
avCmMeasIpVoStatSumPkLosLstHrPktLossPerc |
..1.1.16 |
SnmpAdminString (SIZE (0..3)) |
Packet Loss |
An object containing the peak packekt loss for a call. The packet loss is measured at 10-second intervals. |
|
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
|||||
avCmMeasIpVoStatSumPkLosLstHrSilSup |
..1.1.17 |
R |
SnmpAdminString (SIZE (0..2)) |
Sil Sup |
An object containing the status of silence suppression during a call. |
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |
|||||
avCmMeasIpVoStatSumPkLosLstHrFEAddr |
..1.1.18 |
R |
SnmpAdminString (SIZE (0..41)) |
FEAddr |
An object containing the far-end IP address. |
IP VOICE STATSTICS SUMMARY PKTLOSS REPORT |

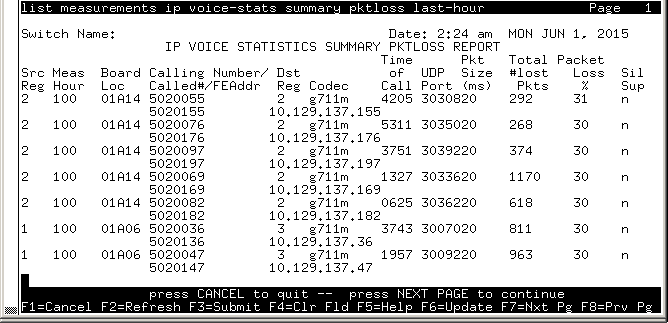

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatSumPkLosLstHr
avCmMeasIpVoStatSumPkLosLstHrRegion.1.100.1 = INTEGER: 1
avCmMeasIpVoStatSumPkLosLstHrRegion.1.100.2 = INTEGER: 1
:
:
avCmMeasIpVoStatSumPkLosLstHrRegion.2.100.5 = INTEGER: 2
avCmMeasIpVoStatSumPkLosLstHrMeasHour.1.100.1 = INTEGER: 100
avCmMeasIpVoStatSumPkLosLstHrMeasHour.1.100.2 = INTEGER: 100
:
:
avCmMeasIpVoStatSumPkLosLstHrMeasHour.2.100.5 = INTEGER: 100
avCmMeasIpVoStatSumPkLosLstHrRunTime.1.100.1 = STRING: 2:21 am MON JUN 1, 2015
avCmMeasIpVoStatSumPkLosLstHrRunTime.1.100.2 = STRING: 2:21 am MON JUN 1, 2015
:
:
avCmMeasIpVoStatSumPkLosLstHrRunTime.2.100.5 = STRING: 2:21 am MON JUN 1, 2015
avCmMeasIpVoStatSumPkLosLstHrBoardLoc.1.100.1 = STRING: 01A06
avCmMeasIpVoStatSumPkLosLstHrBoardLoc.1.100.2 = STRING: 01A06
:
:
avCmMeasIpVoStatSumPkLosLstHrBoardLoc.2.100.5 = STRING: 01A14
avCmMeasIpVoStatSumPkLosLstHrCallingNum.1.100.1 = STRING: 5020036
avCmMeasIpVoStatSumPkLosLstHrCallingNum.1.100.2 = STRING: 5020047
:
:
avCmMeasIpVoStatSumPkLosLstHrCallingNum.2.100.5 = STRING: 5020082
avCmMeasIpVoStatSumPkLosLstHrCalledNum.1.100.1 = STRING: 5020136
avCmMeasIpVoStatSumPkLosLstHrCalledNum.1.100.2 = STRING: 5020147
:
:
avCmMeasIpVoStatSumPkLosLstHrCalledNum.2.100.5 = STRING: 5020182
avCmMeasIpVoStatSumPkLosLstHrDstReg.1.100.1 = INTEGER: 3
avCmMeasIpVoStatSumPkLosLstHrDstReg.1.100.2 = INTEGER: 3
:
:
avCmMeasIpVoStatSumPkLosLstHrDstReg.2.100.5 = INTEGER: 2
avCmMeasIpVoStatSumPkLosLstHrCodec.1.100.1 = STRING: g711m
avCmMeasIpVoStatSumPkLosLstHrCodec.1.100.2 = STRING: g711m
:
:
avCmMeasIpVoStatSumPkLosLstHrCodec.2.100.5 = STRING: g711m
avCmMeasIpVoStatSumPkLosLstHrTimeCall.1.100.1 = STRING: 3743
avCmMeasIpVoStatSumPkLosLstHrTimeCall.1.100.2 = STRING: 1957
:
:
avCmMeasIpVoStatSumPkLosLstHrTimeCall.2.100.5 = STRING: 0625
avCmMeasIpVoStatSumPkLosLstHrUDPPort.1.100.1 = STRING: 30070
avCmMeasIpVoStatSumPkLosLstHrUDPPort.1.100.2 = STRING: 30092
:
:
avCmMeasIpVoStatSumPkLosLstHrUDPPort.2.100.5 = STRING: 30362
avCmMeasIpVoStatSumPkLosLstHrPktSize.1.100.1 = INTEGER: 20
avCmMeasIpVoStatSumPkLosLstHrPktSize.1.100.2 = INTEGER: 20
:
:
avCmMeasIpVoStatSumPkLosLstHrPktSize.2.100.5 = INTEGER: 20
avCmMeasIpVoStatSumPkLosLstHrTotnumLosPkts.1.100.1 = INTEGER: 811
369
avCmMeasIpVoStatSumPkLosLstHrTotnumLosPkts.1.100.2 = INTEGER: 963
:
:
avCmMeasIpVoStatSumPkLosLstHrTotnumLosPkts.2.100.5 = INTEGER: 618
avCmMeasIpVoStatSumPkLosLstHrPktLossPerc.1.100.1 = STRING: 30
avCmMeasIpVoStatSumPkLosLstHrPktLossPerc.1.100.2 = STRING: 30
:
:
avCmMeasIpVoStatSumPkLosLstHrPktLossPerc.2.100.5 = STRING: 30
avCmMeasIpVoStatSumPkLosLstHrSilSup.1.100.1 = STRING: n
avCmMeasIpVoStatSumPkLosLstHrSilSup.1.100.2 = STRING: n
:
:
avCmMeasIpVoStatSumPkLosLstHrSilSup.2.100.5 = STRING: n
avCmMeasIpVoStatSumPkLosLstHrFEAddr.1.100.1 = STRING: 10.129.137.36
avCmMeasIpVoStatSumPkLosLstHrFEAddr.1.100.2 = STRING: 10.129.137.47
:
:
avCmMeasIpVoStatSumPkLosLstHrFEAddr.2.100.5 = STRING: 10.129.137.182
