Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasOutTrkYest
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasOutTrkYest Group |
enterprises.6889.2.73.8.1.40 |
Table |
Description
The avCmMeasOutTrkYest MIB Group uses the list measurements outage-trunk yesterday command to retrieve trunk outage from yesterday.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once an hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasOutTrkYest |
SAT |
list measurements outage-trunk yesterday |
TRUNK OUT OF SERVICE REPORT |
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasOutTrkYestTable |
.1 |
n/a |
SEQUENCE OF avCmMeasOutTrkYestEntry |
n/a |
An object that contains a list of the avCmMeasOutTrkYest entries |
avCmMeasOutTrkYestEntry |
.1.1 |
n/a |
avCmMeasOutTrkYestEntry |
n/a |
A avCmMeasOutTrkYest entry containing objects of the avCmMeasOutTrkYest information sent by the switch. |
avCmMeasOutTrkYestTrunkGrpIdx |
.1.1.1 |
n/a |
Integer32 (0..2000) |
n/a |
An object that uniquely identifies each increment of data. |
avCmMeasOutTrkYestGrpMbrIdx |
.1.1.2 |
n/a |
Integer32 (0..255) |
n/a |
An object that uniquely identifies each increment of data. |
TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkYestTrunkGroup |
.1.1.3 |
R |
Integer32 (0..2000) |
Trunk Group |
An object containing the trunk group number. |
TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkYestRunDate |
.1.1.4 |
R |
SnmpAdminString (SIZE (0..27)) |
Date |
An object containing the Date the command was executed. |
TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkYestGrpSize |
.1.1.5 |
R |
Integer32 (0..999) |
Grp Size |
An object containing the number of members. |
TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkYestGrpMbr |
.1.1.6 |
R |
Integer32 (0..2300) |
Grp Mbr# |
An object containing the member that was out of service. |
TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkYestOutages |
.1.1.7 |
R |
Integer32 (0..999) |
#Sampled Outages |
An object containing the number of sampled outages for the trunk group member. |
TRUNK OUT OF SERVICE REPORT |

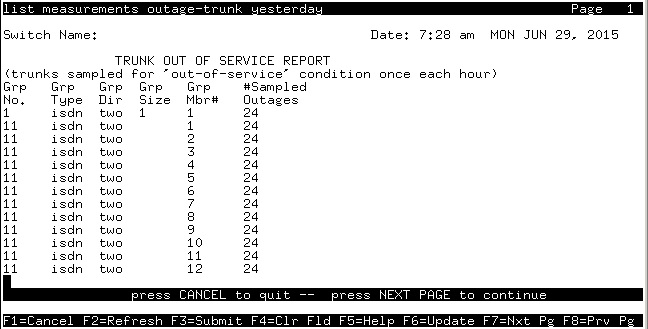

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/A
VAYA-AURA-CM-MIB.txt avCmMeasOutTrkYest
avCmMeasOutTrkYestTrunkGroup.1.1 = INTEGER: 1
avCmMeasOutTrkYestTrunkGroup.11.1 = INTEGER: 11
:
:
avCmMeasOutTrkYestTrunkGroup.11.255 = INTEGER: 11
avCmMeasOutTrkYestRunDate.1.1 = STRING: 7:30 am MON JUN 29, 2015
avCmMeasOutTrkYestRunDate.11.1 = STRING: 7:30 am MON JUN 29, 2015
:
:
avCmMeasOutTrkYestRunDate.11.255 = STRING: 7:30 am MON JUN 29, 2015
avCmMeasOutTrkYestGrpSize.1.1 = INTEGER: 1
avCmMeasOutTrkYestGrpSize.11.1 = INTEGER: 0
:
:
avCmMeasOutTrkYestGrpSize.11.255 = INTEGER: 0
avCmMeasOutTrkYestGrpMbr.1.1 = INTEGER: 1
avCmMeasOutTrkYestGrpMbr.11.1 = INTEGER: 1
:
:
avCmMeasOutTrkYestGrpMbr.11.255 = INTEGER: 255
avCmMeasOutTrkYestOutages.1.1 = INTEGER: 24
avCmMeasOutTrkYestOutages.11.1 = INTEGER: 24
:
:
avCmMeasOutTrkYestOutages.11.255 = INTEGER: 24
