Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasAnnAllToday
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasAnnAllToday |
enterprises.6889.2.73.8.1.81 |
Table |
Description
The avCmMeasAnnAllToday MIB group displays all announcements in the present day.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Fault
Polling Interval
No more than once an hour. The date is updated only at the beginning of each hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasAnnAllToday |
SAT |
list measurements announcement all yesterday-peak |
VOICE ANNOUNCEMENTS MEASUREMENTS |
Reference Document
A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasAnnAllTodayTable |
.1 |
n/a |
SEQUENCE OF avCmMeasAnnAllTodayEntry |
n/a |
An object containing the avCmMeasAnnAllToday entries. |
avCmMeasAnnAllTodayEntry |
.1.1 |
n/a |
avCmMeasAnnAllTodayEntry |
n/a |
An object containing the avCmMeasAnnAllTodayentry with the information that the switch sent. |
avCmMeasAnnAllTodayIdx |
.1.1.1 |
n/a |
Integer32 (0..17)) |
n/a |
An object that uniquely identifies all data increments. |
avCmMeasAnnAllTodayExtension |
.1.1.2 |
n/a |
Integer32 (0..17)) |
Extension |
An index containing the announcement extension. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllTodayRunDate |
.1.1.3 |
R |
Integer32(0..28)) |
Date |
An object containing the date when the command was executed. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllTodayName |
.1.1.4 |
R |
Integer32(0..25)) |
Name |
An object containing the announcement name. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllTodayMeasHou |
.1.1.5 |
R |
Integer32(0..9999)) |
Measurement Hour |
An object that containing the measurement hour. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllTodayPlayRequests |
.1.1.6 |
R |
Integer32(0..9999)) |
Play Reqts |
An object containing the number of play requests for the announcement. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllTodayCallsQueued |
.1.1.7 |
R |
Integer32 (0..9999)) |
Calls Que |
An object containing the number of calls in queue to be assigned a port. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllTodayASP |
.1.1.8 |
R |
Integer32 (0..9999)) |
ASP |
An object containing the average time calls waited for the announcement to be played in seconds. Calls abandoned in the queue are not included. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllTodayPSP |
.1.1.9 |
R |
Integer32 (0..9999)) |
PSP |
An object containing the peak speed to play an announcement. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllTodayQueueDrops |
1.1.10 |
R |
Integer32 (0..9999)) |
Queue Drops |
An object containing the number of calls in the queue that were disconnected. Calls abandoned by the caller and aborted by VOA (VDN of origin Announcements) are included. Calls in the queue answered by an agent are not included. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllTodayMportPlays |
1.1.11 |
R |
Integer32 (0..9999)) |
Mport Plays |
An object containing the number of times an announcement is played simultaneously by multiple ports. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllTodayMxPorts |
1.1.12 |
R |
Integer32(0..99)) |
Mx Pt |
An object containing the peak numbers of ports used for announcements in a specific period. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllTodayMaxCallers |
1.1.13 |
R |
Integer32 (0..999)) |
Max Cls |
An object containing the peak number callers simultaneously connected to a port for an announcement. |
VOICE ANNOUNCEMENTS MEASUREMENTS |

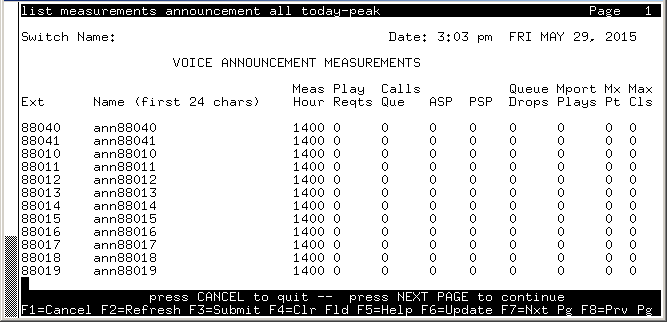

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmMeasAnnAllToday
avCmMeasAnnAllTodayExtension."88010" = STRING: 88010
avCmMeasAnnAllTodayExtension."88011" = STRING: 88011
:
:
avCmMeasAnnAllTodayExtension."88041" = STRING: 88041
avCmMeasAnnAllTodayRunDate."88010" = STRING: 3:00 pm FRI MAY 29, 2015
avCmMeasAnnAllTodayRunDate."88011" = STRING: 3:00 pm FRI MAY 29, 2015
:
:
avCmMeasAnnAllTodayRunDate."88041" = STRING: 3:00 pm FRI MAY 29, 2015
avCmMeasAnnAllTodayName."88010" = STRING: ann88010
avCmMeasAnnAllTodayName."88011" = STRING: ann88011
:
:
avCmMeasAnnAllTodayName."88041" = STRING: ann88041
avCmMeasAnnAllTodayMeasHour."88010" = INTEGER: 1400
avCmMeasAnnAllTodayMeasHour."88011" = INTEGER: 1400
:
:
avCmMeasAnnAllTodayMeasHour."88041" = INTEGER: 1400
avCmMeasAnnAllTodayPlayRequests."88010" = INTEGER: 0
avCmMeasAnnAllTodayPlayRequests."88011" = INTEGER: 0
:
:
avCmMeasAnnAllTodayPlayRequests."88041" = INTEGER: 0
avCmMeasAnnAllTodayCallsQueued."88010" = INTEGER: 0
avCmMeasAnnAllTodayCallsQueued."88011" = INTEGER: 0
:
:
avCmMeasAnnAllTodayCallsQueued."88041" = INTEGER: 0
avCmMeasAnnAllTodayASP."88010" = INTEGER: 0
avCmMeasAnnAllTodayASP."88011" = INTEGER: 0
:
:
avCmMeasAnnAllTodayASP."88041" = INTEGER: 0
avCmMeasAnnAllTodayPSP."88010" = INTEGER: 0
avCmMeasAnnAllTodayPSP."88011" = INTEGER: 0
:
:
avCmMeasAnnAllTodayPSP."88041" = INTEGER: 0
avCmMeasAnnAllTodayQueueDrops."88010" = INTEGER: 0
avCmMeasAnnAllTodayQueueDrops."88011" = INTEGER: 0
:
:
avCmMeasAnnAllTodayQueueDrops."88041" = INTEGER: 0
avCmMeasAnnAllTodayMportPlays."88010" = INTEGER: 0
avCmMeasAnnAllTodayMportPlays."88011" = INTEGER: 0
:
:
avCmMeasAnnAllTodayMportPlays."88041" = INTEGER: 0
avCmMeasAnnAllTodayMxPorts."88010" = INTEGER: 0
avCmMeasAnnAllTodayMxPorts."88011" = INTEGER: 0
:
:
avCmMeasAnnAllTodayMxPorts."88041" = INTEGER: 0
avCmMeasAnnAllTodayMaxCallers."88010" = INTEGER: 0
avCmMeasAnnAllTodayMaxCallers."88011" = INTEGER: 0
:
:
avCmMeasAnnAllTodayMaxCallers."88041" = INTEGER: 0
