Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasOutTrkLstHr
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasOutTrkLstHr |
enterprises.6889.2.73.8.1.38 |
Table |
Description
The avCmMeasOutTrkLstHr MIB Group uses the list measurements trunk-group outage-trunk last-hour command to retrieve trunk outage data from the last hour.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once a day.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasOutTrkLstHr |
SAT |
list measurements trunk-group outage-trunk last-hour |
TRUNK OUT OF SERVICE REPORT |
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasOutTrkLstHrTable |
.1 |
n/a |
SEQUENCE OF avCmMeasOutTrkLstHrEntry |
n/a |
An object that contains a list of the avCmMeasOutTrkLstHr entries |
avCmMeasOutTrkLstHrEntry |
.1.1 |
n/a |
avCmMeasOutTrkLstHrEntry |
n/a |
A avCmMeasOutTrkLstHr entry containing objects of the avCmMeasOutTrkLstHr information sent by the switch. |
avCmMeasOutTrkLstHrTrunkGrpIdx |
.1.1.1 |
n/a |
Integer32 (0..2000) |
n/a |
An object that uniquely identifies each increment of data. |
avCmMeasOutTrkLstHrGrpMbrIdx |
.1.1.2 |
n/a |
Integer32 (0..255) |
n/a |
An object that uniquely identifies each increment of data. |

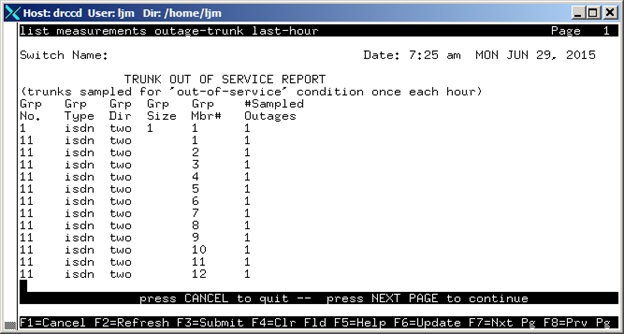

TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkLstHrTrunkGroup |
.1.1.3 |
R |
Integer32 (0..2000) |
Trunk Group |
An object containing the trunk group number. |
TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkLstHrRunDate |
.1.1.4 |
R |
SnmpAdminString (SIZE (0..27)) |
Date |
An object containing the Date the command was executed. |
TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkLstHrGrpSize |
.1.1.5 |
R |
Integer32 (0..999) |
Grp Size |
An object containing the number of members. |
TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkLstHrGrpMbr |
.1.1.6 |
R |
Integer32 (0..2300) |
Grp Mbr# |
An object containing the member that was out of service. |
TRUNK OUT OF SERVICE REPORT |
|||||
avCmMeasOutTrkLstHrOutages |
.1.1.7 |
R |
Integer32 (0..999) |
#Sampled Outages |
An object containing the number of sampled outages for the trunk group member |
TRUNK OUT OF SERVICE REPORT |
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA
-CM-MIB.txt avCmMeasOutTrkLstHr
avCmMeasOutTrkLstHrTrunkGroup.1.1 = INTEGER: 1
avCmMeasOutTrkLstHrTrunkGroup.11.1 = INTEGER: 11
:
:
avCmMeasOutTrkLstHrTrunkGroup.11.255 = INTEGER: 11
avCmMeasOutTrkLstHrRunDate.1.1 = STRING: 7:22 am MON JUN 29, 2015
avCmMeasOutTrkLstHrRunDate.11.1 = STRING: 7:22 am MON JUN 29, 2015
:
:
avCmMeasOutTrkLstHrRunDate.11.255 = STRING: 7:22 am MON JUN 29, 2015
avCmMeasOutTrkLstHrGrpSize.1.1 = INTEGER: 1
avCmMeasOutTrkLstHrGrpSize.11.1 = INTEGER: 0
:
:
avCmMeasOutTrkLstHrGrpSize.11.255 = INTEGER: 0
avCmMeasOutTrkLstHrGrpMbr.1.1 = INTEGER: 1
avCmMeasOutTrkLstHrGrpMbr.11.1 = INTEGER: 1
:
:
avCmMeasOutTrkLstHrGrpMbr.11.255 = INTEGER: 255
avCmMeasOutTrkLstHrOutages.1.1 = INTEGER: 1
avCmMeasOutTrkLstHrOutages.11.1 = INTEGER: 1
:
:
avCmMeasOutTrkLstHrOutages.11.255 = INTEGER: 1
