Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListNodeNamesAll
MIB group name |
OID |
Type |
|---|---|---|
avCmListNodeNamesAll Group |
enterprises.6889.2.73.8.1.51 |
Table |
Description
The avCmListNodeNamesAll MIB Group uses "list node-names all" command retrieve node name data.
Releases Supported
6.3.100 and later
Polling Type
Configuration
Performance/Utilization
Polling Interval
No more than every 20 minutes.
Default Caching Interval
600 seconds
Timeout Interval
Initial Time-out should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Green/Low: The data collected by this MIB Group is minimal and therefore has a low impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmListNodeNamesAll Group |
SAT |
list node-names all |
NODE NAMES |
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmListNodeNamesAllTable |
.1 |
R |
SEQUENCE OF AvCmListNodeNamesAllEntry |
Groups/Splits/Skills |
An object that contains the number of available Groups/Splits/Skills. |
SYSTEM CAPACITY |
|||||
avCmListNodeNamesAllEntry |
.1.1 |
R |
AvCmListNodeNamesAllEntry |
Groups/Splits/Skills |
An object that contains the system limit of Groups/Splits/Skills. |
SYSTEM CAPACITY |
|||||
avCmListNodeNamesAllNameIdx |
.1.1.1 |
R |
SnmpAdminString (SIZE (0..16)) |
Administered Logical Agents |
An object that contains the number of used administered logical agents. |
SYSTEM CAPACITY |
|||||
avCmListNodeNamesAllName |
.1.1.2 |
R |
SnmpAdminString (SIZE (0..16)) |
Administered Logical Agents |
An object that contains the number of available administered logical agents. |
SYSTEM CAPACITY |
|||||
avCmListNodeNamesAllType |
.1.1.3 |
R |
SnmpAdminString (SIZE (0..6)) |
Administered Logical Agents |
An object that contains the system limit of administered logical agents. |
SYSTEM CAPACITY |
|||||
avCmListNodeNamesAllIPAddress |
.1.1.4 |
R |
SnmpAdminString (SIZE (0..41)) |
Administered Logical Agent-Skill Pairs |
An object that contains the number of used administered logical agent-skill pairs. |
SYSTEM CAPACITY |

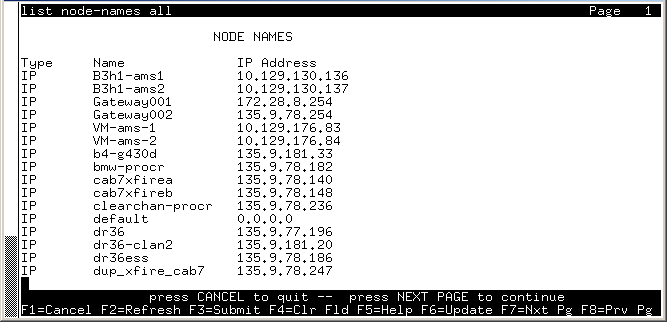

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmListNodeNamesAll
avCmListNodeNamesAllName."dr36" = STRING: dr36
avCmListNodeNamesAllName."hardy" = STRING: hardy
:
:
avCmListNodeNamesAllName."clearchan-procr" = STRING: clearchan-procr
avCmListNodeNamesAllType."dr36" = STRING: IP
avCmListNodeNamesAllType."hardy" = STRING: IP
:
:
avCmListNodeNamesAllType."clearchan-procr" = STRING: IP
avCmListNodeNamesAllIPAddress."dr36" = STRING: 135.9.77.196
avCmListNodeNamesAllIPAddress."hardy" = STRING: 135.9.78.202
:
:
avCmListNodeNamesAllIPAddress."clearchan-procr" = STRING: 135.9.78.236
