avCmStatusTrunkRange

Last Updated : Jul 15, 2021 |

MIB group name	OID	Type
avCmStatusTrunkRange	enterprises.6889.2.73.8.1.27	Scalar/Table

Description

TheavCmStatusTrunkRange MIB Group displays the output of the STATUS TRUNK xxxx command.

Releases Supported

6.3.100 and later

Polling Type

Performance/Utilization

Polling Interval

The more TRUNK GROUPS and TRUNK GROUP MEMBERS, the less frequently this MIB Group should be queried.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 15 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Red/High: The data collected by this MIB Group increases as the number of boards in the system increase. Consequently, this data could be very large and therefore may take a very long time to collect and could impact system performance.

Associated Communication Manager Commands:


MIB group name	Bash/SAT	Associated command	Form/Report name

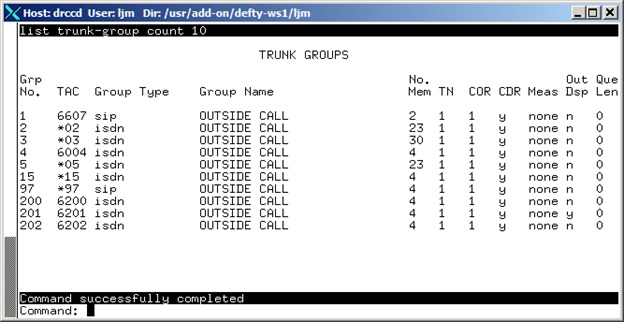

avCmStatusTrunkRange	SAT	list trunk	TRUNK GROUPS
avCmStatusTrunkRange	SAT	STATUS TRUNK xxxx	TRUNK GROUP STATUS

Reference Document

A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed.
No special permissions needed.

Objects


Object Name	OID	R/W	Type	Field Name	Description
Form/Report name	OID	R/W	Type	Field Name	Description
avCmStatusTrunkRangeGrp	.1	R/W	Integer32 (0..2000)	n/a	An object that contains the trunk group (Scalar).
	.1	R/W	Integer32 (0..2000)	n/a	An object that contains the trunk group (Scalar).
avCmStatusTrunkRangeCount	.2	R/W	Integer32 (0..255)	n/a	An object containing the number of trunks to perform STATUS TRUNK on (Scalar).
	.2	R/W	Integer32 (0..255)	n/a
avCmStatusTrunkRangeTable	.3	n/a	SEQUENCE OF avCmStatusTrunkEntry	n/a	An object that contains the trunk member entry.
	.3	n/a	SEQUENCE OF avCmStatusTrunkEntry	n/a	An object that contains the trunk member entry.
avCmStatusTrunkRangeEntry	.4	n/a	SEQUENCE OF avCmStatusTrunkEntry	n/a	A avCmStatusTrunkRange entry containing objects of the avCmStatusTrunkRange information sent by the switch.
	.4	n/a	SEQUENCE OF avCmStatusTrunkEntry	n/a
avCmStatusTrunkRangeIdx	.3.1.1	n/a	Integer32 (0..2000)	n/a	An object that contains an index into the Trunk Group.
	.3.1.1	n/a	Integer32 (0..2000)	n/a	An object that contains an index into the Trunk Group.
avCmStatusTrunkRangeMemberIdx	.3.1.2	n/a	Integer32 (0..255)	n/a	An index that contains the Member No. for the Trunk Group.
	.3.1.2	n/a	Integer32 (0..255)	n/a	An index that contains the Member No. for the Trunk Group.
avCmStatusTrunkRangeMemMember	.3.1.3	R	Integer32 (0..255)	n/a	An index that contains the Member No. for the Trunk Group.
TRUNK GROUP STATUS	.3.1.3	R	Integer32 (0..255)	n/a	An index that contains the Member No. for the Trunk Group.
avCmStatusTrunkRangePort	.3.1.4	R	SnmpAdminString (SIZE (0..12))	Port	An object containing the trunk member Port.
TRUNK GROUP STATUS	.3.1.4	R	SnmpAdminString (SIZE (0..12))	Port	An object containing the trunk member Port.
avCmStatusTrunkRangeServiceState	.3.1.5	R	SnmpAdminString (SIZE (0..19))	Service State	An object containing the trunk member service state.
TRUNK GROUP STATUS	.3.1.5	R	SnmpAdminString (SIZE (0..19))	Service State	An object containing the trunk member service state.
avCmStatusTrunkRangeMtceBusy	.3.1.6	R	SnmpAdminString (SIZE (0..5))	Maintenance Busy	An object containing whether the member is maintenance busy
TRUNK GROUP STATUS	.3.1.6	R	SnmpAdminString (SIZE (0..5))	Maintenance Busy	An object containing whether the member is maintenance busy
avCmStatusTrunkRangeConnPorts1	.3.1.7	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
TRUNK GROUP STATUS	.3.1.7	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
avCmStatusTrunkRangeConnPorts2	.3.1.8	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
TRUNK GROUP STATUS	.3.1.8	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
avCmStatusTrunkRangeConnPorts3	.3.1.9	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
TRUNK GROUP STATUS	.3.1.9	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
avCmStatusTrunkRangeConnPorts4	.3.1.10	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
TRUNK GROUP STATUS	.3.1.10	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
avCmStatusTrunkRangeConnPorts5	.3.1.11	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
TRUNK GROUP STATUS	.3.1.11	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
avCmStatusTrunkRangeConnPorts6	.3.1.12	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
TRUNK GROUP STATUS	.3.1.12	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
avCmStatusTrunkRangeConnPorts7	.3.1.13	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
TRUNK GROUP STATUS	.3.1.13	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
avCmStatusTrunkRangeConnPorts8	.3.1.14	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
TRUNK GROUP STATUS	.3.1.14	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
avCmStatusTrunkRangeConnPorts9	.3.1.15	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.
TRUNK GROUP STATUS	.3.1.15	R	SnmpAdminString (SIZE (0..12))	Connected Ports	An object containing ports connected to the member.

Sample output of forms

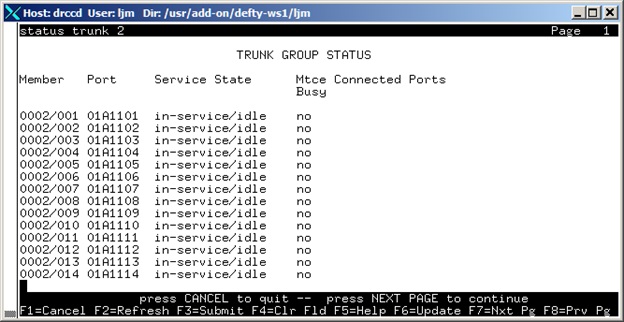

avCmStatusTrunkRange - Trunk Group Status

Sample Output of SNMP Walk command:

Before you begin:

The trunk group must be set to avCmStatusTrunkRangeGrp.

dadmin1@r640-high1-cm> snmpset -Os -v2c -c public 192.0.2.0 1.3.6.1.4.1.6889.2.73.8.1.27.1.0 i 101enterprises.6889.2.73.8.1.27.1.0 = INTEGER: 101

Set the number of members to view up to 255 with avCmStatusTrunkRangeCount.

dadmin1@r640-high1-cm> snmpset -Os -v2c -c public 192.0.2.0 1.3.6.1.4.1.6889.2.73.8.1.27.2.0 i 25enterprises.6889.2.73.8.1.27.2.0 = INTEGER: 25

Do the snmpwalk on the avCmStatusTrunkRangeServiceState.

dadmin1@r640-high1-cm> snmpwalk -Os -v2c -c public 192.0.2.0 1.3.6.1.4.1.6889.2.73.8.1.27.3.1.5.101enterprises.6889.2.73.8.1.27.3.1.5.101.1 = STRING: "out-of-service-NE"

enterprises.6889.2.73.8.1.27.3.1.5.101.2 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.3 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.4 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.5 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.6 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.7 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.8 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.9 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.10 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.11 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.12 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.13 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.14 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.15 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.16 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.17 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.18 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.19 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.20 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.21 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.22 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.23 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.24 = STRING: "out-of-service-NE"
enterprises.6889.2.73.8.1.27.3.1.5.101.25 = STRING: "out-of-service-NE"
