Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListIntegAnn
MIB group name |
OID |
Type |
|---|---|---|
avCmListIntegAnn |
enterprises.6889.2.73.8.1.63 |
Table |
Description
The avCmListIntegAnn MIB group displays the information of all the integrated announcements.
Releases Supported
6.3.100 and later
Polling Type
Inventory and Configuration
Polling Interval
Not more than once a day.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmListIntegAnn |
SAT |
list integrated-annc-boards |
INTEGRATED ANNOUNCEMENTS |
Reference Document
A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmListIntegAnnTable |
.1 |
n/a |
SEQUENCE OF AvCmListIntegAnnEntry |
n/a |
An object containing the avCmListIntegAnn entries. |
avCmListIntegAnnEntry |
.1.1 |
n/a |
AvCmListIntegAnnEntry |
n/a |
An object containing the avCmListIntegAnn entry with the information that the switch sent. |
avCmListIntegAnnIdx |
.1.1.1 |
n/a |
SnmpAdminString (SIZE (0..6)) |
n/a |
An object that uniquely identifies each increment of data. |
avCmListIntegAnnIntIdx |
.1.1.2 |
n/a |
SnmpAdminString (SIZE (0..4)) |
n/a |
An object that uniquely identifies each increment of data. |
avCmListIntegAnnSource |
.1.1.3 |
n/a |
SnmpAdminString (SIZE (0..6)) |
Source |
An object containing the announcement source location. |
INTEGRATED ANNOUNCEMENTS |
|||||
avCmListIntegAnnTimeRem |
.1.1.4 |
R |
SnmpAdminString (SIZE (0..3)) |
Time remaining at |
An object containing the run rate of the announcements. |
INTEGRATED ANNOUNCEMENTS |
|||||
avCmListIntegAnnKbps |
.1.1.5 |
R |
SnmpAdminString (SIZE (0..6)) |
kbps |
An object containing the kilobytes per second of the announcements. |
INTEGRATED ANNOUNCEMENTS |
|||||
avCmListIntegAnnIntNum |
.1.1.6 |
R |
SnmpAdminString (SIZE (0..4)) |
Internal Number |
An object containing the internal number of the announcement. |
INTEGRATED ANNOUNCEMENTS |
|||||
avCmListIntegAnnGrpNum |
.1.1.7 |
R |
SnmpAdminString (SIZE (0..3)) |
Group Number |
An object containing the audio group number of the announcement. |
INTEGRATED ANNOUNCEMENTS |
|||||
avCmListIntegAnnExtension |
.11.8 |
R |
SnmpAdminString (SIZE (0..17)) |
Extension |
An object containing the announcement extension. |
INTEGRATED ANNOUNCEMENTS |
|||||
avCmListIntegAnnName |
.1.1.9 |
R |
SnmpAdminString (SIZE (0..29)) |
Name |
An object containing the name of the announcement. |
INTEGRATED ANNOUNCEMENTS |
|||||
avCmListIntegAnnLength |
.1.1.10 |
R |
Integer32 (0..99999) |
Length |
An object containing the length of the announcement in seconds. |
INTEGRATED ANNOUNCEMENTS |
|||||
avCmListIntegAnnSize |
.1.1.11 |
R |
Integer32 (0..99999) |
Size |
An object containing the size of the announcement in kilobytes. |
INTEGRATED ANNOUNCEMENTS |

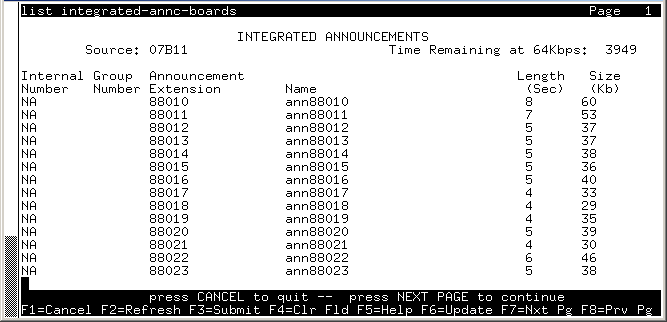

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmListIntegAnn
avCmListIntegAnnSource."004V9"."NA" = STRING: 004V9
avCmListIntegAnnSource."07B11"."NA" = STRING: 07B11
avCmListIntegAnnTimeRem."004V9"."NA" = STRING: 64
avCmListIntegAnnTimeRem."07B11"."NA" = STRING: 64
avCmListIntegAnnKbps."004V9"."NA" = STRING: 2811
avCmListIntegAnnKbps."07B11"."NA" = STRING: 3949
avCmListIntegAnnIntNum."004V9"."NA" = STRING: NA
avCmListIntegAnnIntNum."07B11"."NA" = STRING: NA
avCmListIntegAnnGrpNum."004V9"."NA" = STRING:
avCmListIntegAnnGrpNum."07B11"."NA" = STRING:
avCmListIntegAnnExtension."004V9"."NA" = STRING: 88040
avCmListIntegAnnExtension."07B11"."NA" = STRING: 88010
avCmListIntegAnnName."004V9"."NA" = STRING: ann88040
avCmListIntegAnnName."07B11"."NA" = STRING: ann88010
avCmListIntegAnnLength."004V9"."NA" = INTEGER: 7
avCmListIntegAnnLength."07B11"."NA" = INTEGER: 8
avCmListIntegAnnSize."004V9"."NA" = INTEGER: 53
avCmListIntegAnnSize."07B11"."NA" = INTEGER: 6
