Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasHuntGrpLstHr
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasHuntGrpLstHr |
enterprises.6889.2.73.8.1.59 |
Table |
Description
The avCmMeasHuntGrpLstHr MIB group displays information about hunt groups from the previous day.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once an hour. The data is updated at the beginning of each hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasHuntGrpLstHr |
SAT |
list measurements hunt-group yesterday |
HUNT GROUP MEASUREMENTS |
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasHuntGrpLstHrTable |
.1 |
n/a |
SEQUENCE OF AvCmStatusHuntGrpYestEntry |
n/a |
An object containing the avCmMeasHuntGrpLstHr entries. |
avCmMeasHuntGrpLstHrEntry |
.1.1 |
n/a |
AvCmStatushuntGrpYestEntry |
n/a |
An object containing the avCmMeasHuntGrpLstHr entry with the information that the switch sent. |
avCmMeasHuntGrpLstHrHuntGrpIdx |
.1.1.1 |
n/a |
Integer32 (0..9999) |
n/a |
An object that uniquely identifies each increment of data. |
avCmMeasHuntGrpLstHrHuntGrpNo |
.1.1.2 |
R |
Integer32 (0..9999) |
Hunt Group |
An object containing the hunt group number. |
HUNT GROUP MEASUREMENTS |
|||||
avCmMeasHuntGrpLstHrRunDate |
.1.1.3 |
R |
Integer32 (0..28) |
Date |
An object containing the date when the command was run. |
HUNT GROUP MEASUREMENTS |
|||||
avCmMeasHuntGrpLstHrGrpName |
.1.1.4 |
R |
Integer32 (0..28) |
Grp Name |
An object containing the size of the hunt group. |
HUNT GROUP MEASUREMENTS |
|||||
avCmMeasHuntGrpLstHrGroupSiz |
.1.1.5 |
R |
Integer32 (0..999) |
Grp Siz |
An object containing the size of the hunt group. |
HUNT GROUP MEASUREMENTS |
|||||
avCmMeasHuntGrpLstHrMeasHour |
.1.1.6 |
R |
Integer32 (0..9999) |
Meas Hour |
An object containing the measurement hour. |
HUNT GROUP MEASUREMENTS |
|||||
avCmMeasHuntGrpLstHrTotalUsage |
.1.1.7 |
R |
Integer32 (0..99999) |
Total Usage |
An object containing the total amount of time hunt groups are busy processing calls. |
HUNT GROUP MEASUREMENTS |
|||||
avCmMeasHuntGrpLstHrCallsAns |
.1.1.8 |
R |
Integer32 (0..999999) |
Calls Ans |
An object containing the number of calls answered. |
HUNT GROUP MEASUREMENTS |
|||||
avCmMeasHuntGrpLstHrGrpQue |
.1.1.9 |
R |
Integer32 (0..2) |
Que |
An object containing the indication whether the hunt group has a queue. |
HUNT GROUP MEASUREMENTS |
|||||
avCmMeasHuntGrpLstHrCallsQue |
.1.1.10 |
R |
Integer32 (0..99999) |
Calls Que |
An object containing the number of calls sent to the hunt group queue. All call that are sent to call coverage are included. |
HUNT GROUP MEASUREMENTS |
|||||
avCmMeasHuntGrpLstHrQueOvfl |
.1.1.11 |
R |
Integer32 (0..99999) |
Que Ovfl |
An object containing the number of calls received when all hunt group queues are fully occupied. |
HUNT GROUP MEASUREMENTS |
|||||
avCmMeasHuntGrpLstHrTimeAvail |
.1.1.12 |
R |
Integer32 (0..9999) |
Time Avail |
An object containing the total amount of time that the hunt group extensions are available for calls. The available time is calculated only when an extension is available for calls from a specific hunt group. |
HUNT GROUP MEASUREMENTS |
|||||
avCmMeasHuntGrpLstHrSpeedAns |
.1.1.13 |
R |
Integer32 (0..9999) |
Speed Ans |
An object containing the average time taken to answer a call. The time is calculated from the call being listed in the hunt group queue to the call being answered. The time for the forced first announcement is not included. |
HUNT GROUP MEASUREMENTS |
|||||
avCmMeasHuntGrpLstHrTyp |
.1.1.14 |
R |
Integer32 (0..4) |
Typ |
An object containing the type of hunt group - ddc: direct department calling, ucd: uniform call distribution, ead: expert agent distribution. |
HUNT GROUP MEASUREMENTS |
|||||
avCmMeasHuntGrpLstHrAban |
.1.1.15 |
R |
Integer32 (0..999) |
Aban |
An object containing the number of calls abandoned in the hunt group queue. Calls abandoned while in the hunt group queue and while ringing at an extension are included. Calls answered by Call Pick Up, by other hunt groups, and while listening to a forced first announcement are not included. |
HUNT GROUP MEASUREMENTS |

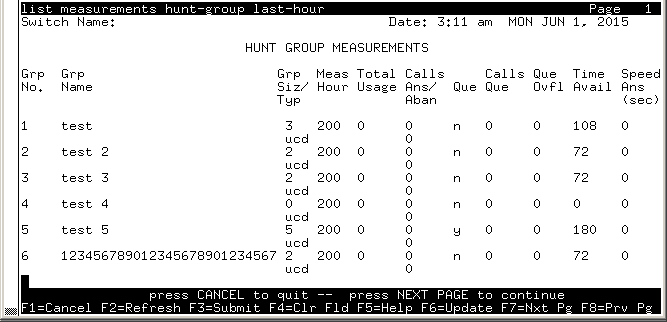

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmMeasHuntGrpLstHr
avCmMeasHuntGrpLstHrHuntGrpNo.1 = INTEGER: 1
avCmMeasHuntGrpLstHrHuntGrpNo.2 = INTEGER: 2
:
:
avCmMeasHuntGrpLstHrHuntGrpNo.10 = INTEGER: 10
avCmMeasHuntGrpLstHrRunDate.1 = STRING: 3:09 am MON JUN 1, 2015
avCmMeasHuntGrpLstHrRunDate.2 = STRING: 3:09 am MON JUN 1, 2015
:
:
avCmMeasHuntGrpLstHrRunDate.10 = STRING: 3:09 am MON JUN 1, 2015
avCmMeasHuntGrpLstHrGrpName.1 = STRING: test
avCmMeasHuntGrpLstHrGrpName.2 = STRING: test 2
:
:
avCmMeasHuntGrpLstHrGrpName.10 = STRING: test 10
avCmMeasHuntGrpLstHrGroupSiz.1 = INTEGER: 3
avCmMeasHuntGrpLstHrGroupSiz.2 = INTEGER: 2
:
:
avCmMeasHuntGrpLstHrGroupSiz.10 = INTEGER: 2
avCmMeasHuntGrpLstHrMeasHour.1 = INTEGER: 200
avCmMeasHuntGrpLstHrMeasHour.2 = INTEGER: 200
:
:
avCmMeasHuntGrpLstHrMeasHour.10 = INTEGER: 200
avCmMeasHuntGrpLstHrTotalUsage.1 = INTEGER: 0
453
avCmMeasHuntGrpLstHrTotalUsage.2 = INTEGER: 0
:
:
avCmMeasHuntGrpLstHrTotalUsage.10 = INTEGER: 0
avCmMeasHuntGrpLstHrCallsAns.1 = INTEGER: 0
avCmMeasHuntGrpLstHrCallsAns.2 = INTEGER: 0
:
:
avCmMeasHuntGrpLstHrCallsAns.10 = INTEGER: 0
avCmMeasHuntGrpLstHrGrpQue.1 = STRING: n
avCmMeasHuntGrpLstHrGrpQue.2 = STRING: n
:
:
avCmMeasHuntGrpLstHrGrpQue.10 = STRING: n
avCmMeasHuntGrpLstHrCallsQue.1 = INTEGER: 0
avCmMeasHuntGrpLstHrCallsQue.2 = INTEGER: 0
:
:
avCmMeasHuntGrpLstHrCallsQue.10 = INTEGER: 0
avCmMeasHuntGrpLstHrQueOvfl.1 = INTEGER: 0
avCmMeasHuntGrpLstHrQueOvfl.2 = INTEGER: 0
:
:
avCmMeasHuntGrpLstHrQueOvfl.10 = INTEGER: 0
avCmMeasHuntGrpLstHrTimeAvail.1 = INTEGER: 108
avCmMeasHuntGrpLstHrTimeAvail.2 = INTEGER: 72
:
:
avCmMeasHuntGrpLstHrTimeAvail.10 = INTEGER: 72
avCmMeasHuntGrpLstHrSpeedAns.1 = INTEGER: 0
avCmMeasHuntGrpLstHrSpeedAns.2 = INTEGER: 0
:
:
avCmMeasHuntGrpLstHrSpeedAns.10 = INTEGER: 0
avCmMeasHuntGrpLstHrTyp.1 = STRING: ucd
avCmMeasHuntGrpLstHrTyp.2 = STRING: ucd
:
:
avCmMeasHuntGrpLstHrTyp.10 = STRING: ucd
avCmMeasHuntGrpLstHrAban.1 = INTEGER: 0
avCmMeasHuntGrpLstHrAban.2 = INTEGER: 0
:
:
avCmMeasHuntGrpLstHrAban.10 = INTEGER: 0
