Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListSurvProcess
MIB group name |
OID |
Type |
|---|---|---|
avCmListSurvProcess Group |
enterprises.6889.2.73.8.1.49 |
Table |
Description
The avCmListSurvProcess MIB Group uses the list survivable-processor command to retrieve survivable-processor data.
Releases Supported
6.3.100 and later
Polling Type
Inventory
Polling Interval
Not more than once a day.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Green/Low: The data collected by this MIB Group is minimal and therefore has a low impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmListSurvProcess Group |
SAT |
list survivable-processor |
SURVIVABLE PROCESSORS |
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmListSurvProcessTable |
.1 |
n/a |
SEQUENCE OF AvCmListSurvProcessEntry |
n/a |
A list of the avCmListSurvProcess entries |
avCmListSurvProcessEntry |
.1.1 |
n/a |
Integer32 (0..9999) |
n/a |
A avCmListSurvProcess entry containing objects of the avCmListSurvProcess information sent by the switch. |
avCmListSurvProcessNumIdx |
.1.1.1 |
n/a |
Integer32 (0..9999) |
n/a |
An object that identifies each increment of data. |
a |
|||||
avCmListSurvProcessNumber |
.1.1.2 |
R |
Integer32 (0..9999) |
Number |
An object that contains the record number. |
SURVIVABLE PROCESSORS |
|||||
avCmListSurvProcessName |
.1.1.3 |
R |
SnmpAdminString (SIZE (0..16)) |
Name |
An object containing the name of the survivable processor. |
SURVIVABLE PROCESSORS |
|||||
avCmListSurvProcessType |
.1.1.4 |
R |
SnmpAdminString (SIZE (0..6)) |
Type |
An object containing the type of survivable processor. |
SURVIVABLE PROCESSORS |
|||||
avCmListSurvProcessReg |
.1.1.5 |
R |
SnmpAdminString (SIZE (0..2)) |
Reg |
An object containing whether the survivable processor is registered. |
SURVIVABLE PROCESSORS |
|||||
avCmListSurvProcessAc |
.1.1.6 |
R |
SnmpAdminString (SIZE (0..2)) |
Act |
An object containing whether the survivable processor is active. |
SURVIVABLE PROCESSORS |
|||||
avCmListSurvProcessTransUpdated |
.1.1.7 |
R |
SnmpAdminString (SIZE (0..18)) |
Translations Updated |
An object containing when the survivable processor translations were last updated. |
SURVIVABLE PROCESSORS |
|||||
avCmListSurvProcessNetRgn |
.1.1.8 |
R |
SnmpAdminString (SIZE (0..9999)) |
Net Rgn |
An object containing the network region the survivable processor is using. |
SURVIVABLE PROCESSORS |
|||||
avCmListSurvProcessIpAddress |
.1.1.9 |
R |
SnmpAdminString (SIZE (0..41)) |
IP Address |
An object containing the IP address the survivable processor is using. |
SURVIVABLE PROCESSORS |
|||||
avCmListSurvProcessIPV6Name |
.1.1.10 |
R |
SnmpAdminString (SIZE (0..16)) |
IPV6 Address |
An object containing the Name of the IPV6 address the survivable processor is using. |
SURVIVABLE PROCESSORS |
|||||
avCmListSurvProcessIPV6Address |
.1.1.11 |
R |
SnmpAdminString (SIZE (0..41)) |
IPV6 Address |
An object containing the IPV6 address the survivable processor is using. |
SURVIVABLE PROCESSORS |

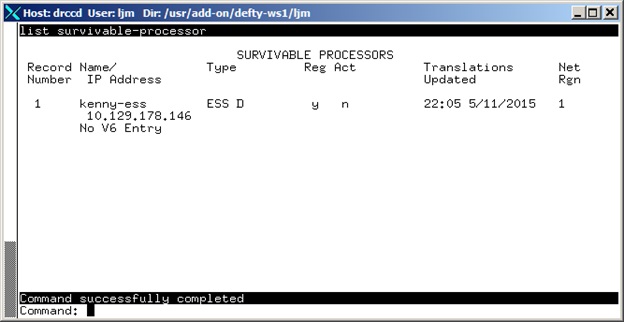

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -v 2c -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmListSurvProcess
AVAYA-AURA-CM-MIB::avCmListSurvProcessNumber.1 = INTEGER: 1
AVAYA-AURA-CM-MIB::avCmListSurvProcessName.1 = STRING: kenny-ess
AVAYA-AURA-CM-MIB::avCmListSurvProcessType.1 = STRING: ESS D
AVAYA-AURA-CM-MIB::avCmListSurvProcessReg.1 = STRING: y
AVAYA-AURA-CM-MIB::avCmListSurvProcessAct.1 = STRING: n
AVAYA-AURA-CM-MIB::avCmListSurvProcessTransUpdated.1 = STRING: 10:04 6/24/2015
AVAYA-AURA-CM-MIB::avCmListSurvProcessNetRgn.1 = INTEGER: 1
AVAYA-AURA-CM-MIB::avCmListSurvProcessIpAddress.1 = STRING: 10.129.178.146
AVAYA-AURA-CM-MIB::avCmListSurvProcessIPV6Name.1 = STRING: No V6 Entry
AVAYA-AURA-CM-MIB::avCmListSurvProcessIPV6Address.1 = STRING:
