Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasTrkGrpSumLstHr
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasTrkGrpSumLstHr |
enterprises.6889.2.73.8.1.35 |
Table |
Description
The avCmMeasTrkGrpSumLstHr MIB Group uses the list measurements trunk-group summary last-hour command to retrieve trunk data from the last hour.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once a day.
Default Caching Interval
300 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasTrkGrpSumLstHr |
SAT |
list measurements trunk-group summary last-hour |

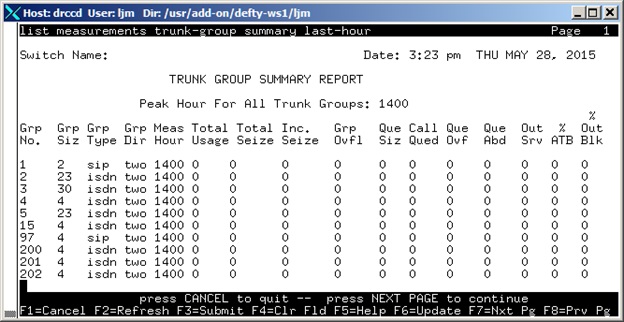

TRUNK GROUP SUMMARY REPORT |
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasLstHrTable |
.1 |
n/a |
SEQUENCE OF avCmMeasLstHrEntry |
n/a |
An object that contains a list of the avCmMeasLstHr entries |
avCmMeasLstHrEntry |
.1.1 |
n/a |
avCmMeasLstHrEntry |
n/a |
A avCmMeasLstHr entry containing objects of the avCmMeasLstHr information sent by the switch. |
avCmMeasLstHrTrunkGrpIdx |
.1.1.1 |
n/a |
Integer32 (0..2000) |
n/a |
An object that uniquely identifies each increment of data. |
avCmMeasTrkGrpSumLstHrTrunkGroup |
.1.1.2 |
R |
Integer32 (0..2000) |
Trunk Group |
An object containing the trunk group number. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasLstHrRunDate |
.1.1.3 |
R |
SnmpAdminString (SIZE (0..27)) |
Date |
An object containing the Date the command was executed. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumLstHrMeasHour |
.1.1.4 |
R |
Integer32 (0..2300) |
Meas Hour |
An object containing the Hour the measurement was taken. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumLstHrGroupSize |
.1.1.5 |
R |
Integer32 (0..255) |
Grp Siz |
An object containing the number of administered trunks in the trunk group. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumLstHrTotalUsage |
.1.1.6 |
R |
Integer32 (0..9999) |
Total Usage |
An object containing the total time trunks are busy with calls during the measurement period (in CCS). |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumLstHrTotalSeize |
.1.1.7 |
R |
Integer32 (0..999999) |
Total Seize |
An object containing the number of times a trunk was seized in the group including false starts, don't answer and busy. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumLstHrIncSeize |
.1.1.8 |
R |
Integer32 (0..999999) |
Inc Seize |
An object containing the number of incoming seizures carried on the trunk group. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumLstHrGrpOvflow |
.1.1.9 |
R |
Integer32 (0..999999) |
Grp Ovfl |
An object containing the number of calls offered to a trunk group that are not carried or queued. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumLstHrQueSiz |
.1.1.10 |
R |
Integer32 (0..9999) |
Que Siz |
An object containing a number that identifies the number of slots assigned to the trunk group queue. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumLstHrCallQued |
.1.1.11 |
R |
Integer32 (0..9999) |
Call Qued |
An object containing the total number of calls that entered the trunk group queue after finding all trunks busy. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumLstHrQueOvf |
.1.1.12 |
R |
Integer32 (0..9999) |
Que Ovf |
An object containing the total number of calls that were not queued because the queue was full. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumLstHrQueAbd |
.1.1.13 |
R |
Integer32 (0..9999) |
Que Abd |
An object containing the total number of calls that were removed from the queue. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumLstHrOutSrv |
.1.1.14 |
R |
Integer32 (0..999) |
Out Srv |
An object containing the number of trunks in the group that are out of service |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumLstHrPercentAtb |
.1.1.15 |
R |
Integer32 (0..100) |
% ATB |
An object containing the percentage of time all trunks the group were simultaneously in use. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumLstHrPercentOutBlk |
.1.1.16 |
R |
Integer32 (0..100) |
% Out Blk |
An object containing the percentage of offered calls that are not carried on the group. |
TRUNK GROUP SUMMARY REPORT |
Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmMeasTrkGrpSumLstHr
avCmMeasTrkGrpSumLstHrTrunkGroup.1 = INTEGER: 1
avCmMeasTrkGrpSumLstHrTrunkGroup.2 = INTEGER: 2
:
:
avCmMeasTrkGrpSumLstHrTrunkGroup.604 = INTEGER: 604
avCmMeasTrkGrpSumLstHrRunDate.1 = STRING: 3:26 pm THU MAY 28, 2015
avCmMeasTrkGrpSumLstHrRunDate.2 = STRING: 3:26 pm THU MAY 28, 2015
:
:
avCmMeasTrkGrpSumLstHrRunDate.604 = STRING: 3:26 pm THU MAY 28, 2015
avCmMeasTrkGrpSumLstHrMeasHour.1 = INTEGER: 1400
avCmMeasTrkGrpSumLstHrMeasHour.2 = INTEGER: 1400
:
:
avCmMeasTrkGrpSumLstHrMeasHour.604 = INTEGER: 1400
avCmMeasTrkGrpSumLstHrGroupSize.1 = INTEGER: 2
avCmMeasTrkGrpSumLstHrGroupSize.2 = INTEGER: 23
:
:
avCmMeasTrkGrpSumLstHrGroupSize.604 = INTEGER: 2
avCmMeasTrkGrpSumLstHrTotalUsage.1 = INTEGER: 0
avCmMeasTrkGrpSumLstHrTotalUsage.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumLstHrTotalUsage.604 = INTEGER: 0
avCmMeasTrkGrpSumLstHrTotalSeize.1 = INTEGER: 0
avCmMeasTrkGrpSumLstHrTotalSeize.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumLstHrTotalSeize.604 = INTEGER: 0
avCmMeasTrkGrpSumLstHrIncSeize.1 = INTEGER: 0
avCmMeasTrkGrpSumLstHrIncSeize.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumLstHrIncSeize.604 = INTEGER: 0
avCmMeasTrkGrpSumLstHrGrpOvflow.1 = INTEGER: 0
avCmMeasTrkGrpSumLstHrGrpOvflow.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumLstHrGrpOvflow.604 = INTEGER: 0
avCmMeasTrkGrpSumLstHrQueSiz.1 = INTEGER: 0
avCmMeasTrkGrpSumLstHrQueSiz.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumLstHrQueSiz.604 = INTEGER: 0
avCmMeasTrkGrpSumLstHrCallQued.1 = INTEGER: 0
avCmMeasTrkGrpSumLstHrCallQued.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumLstHrCallQued.604 = INTEGER: 0
avCmMeasTrkGrpSumLstHrQueOvf.1 = INTEGER: 0
avCmMeasTrkGrpSumLstHrQueOvf.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumLstHrQueOvf.604 = INTEGER: 0
avCmMeasTrkGrpSumLstHrQueAbd.1 = INTEGER: 0
avCmMeasTrkGrpSumLstHrQueAbd.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumLstHrQueAbd.604 = INTEGER: 0
avCmMeasTrkGrpSumLstHrOutSrv.1 = INTEGER: 0
avCmMeasTrkGrpSumLstHrOutSrv.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumLstHrOutSrv.604 = INTEGER: 2
avCmMeasTrkGrpSumLstHrPercentAtb.1 = INTEGER: 0
avCmMeasTrkGrpSumLstHrPercentAtb.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumLstHrPercentAtb.604 = INTEGER: 100
avCmMeasTrkGrpSumLstHrPercentOutBlk.1 = INTEGER: 0
avCmMeasTrkGrpSumLstHrPercentOutBlk.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumLstHrPercentOutBlk.604 = INTEGER: 0
