Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmCapacityLic
MIB group name |
OID |
Type |
|---|---|---|
avCmCapacityLic |
enterprises 6889.2.73.8.1.20 |
Scalar |
Description
The avCmCapacityLic MIB Group uses the display capacitycommand to retrieve the LICENSED capacity information under the TOTAL LICENSED CAPACITY section of the SYSTEM CAPACITY form.
Releases Supported
6.3.100 and later
Polling Type
Configuration, Inventory, and Performance/Utilization
Polling Interval
No more than once every 20 minutes.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmCapacityLic |
SAT |
display capacity |
SYSTEM CAPACITY |
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmCapacityLicStatTrkPtsUsed |
.1 |
R |
Integer32 (0..99999) |
Station and Trunk Ports |
An object that contains the number of used station and trunk ports. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicStatTrkPtsAvail |
.2 |
R |
Integer32 (0..99999) |
Station and Trunk Ports |
An object that contains the number of available station and trunk ports. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicStatTrkPtsLicLim |
.3 |
R |
Integer32 (0..99999) |
Station and Trunk Ports |
An object that contains the system limit of station and trunk ports. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicStatCapUsed |
.4 |
R |
Integer32 (0..99999) |
SYSTEM CAPACITY |
An object that contains the number of used SYSTEM CAPACITY. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicStatCapAvail |
.5 |
R |
Integer32 (0..99999) |
SYSTEM CAPACITY |
An object that contains the number of available SYSTEM CAPACITY. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicStatCapLicLim |
.6 |
R |
Integer32 (0..99999) |
SYSTEM CAPACITY |
An object that contains the system limit of SYSTEM CAPACITY. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicXmobileStatUsed |
.7 |
R |
Integer32 (0..99999) |
XMOBILE Stations |
An object that contains the number of used XMOBILE Stations. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicXmobileStatAvail |
.8 |
R |
Integer32 (0..99999) |
XMOBILE Stations |
An object that contains the number of available XMOBILE Stations. |
SYSTEM CAPACITY |
|||||
avCmCapacityTrunksIchtIsdnSipTrkSysLim |
.9 |
R |
Integer32 (0..99999) |
XMOBILE Stations |
An object that contains the system limit of XMOBILE Stations. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicXmobileStatLicLim |
.10 |
R |
Integer32 (0..99999) |
EC500 |
An object that contains the number of used EC500. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicEC500Avail |
.11 |
R |
Integer32 (0..99999) |
EC500 |
An object that contains the number of available EC500. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicEC500LicLim |
.12 |
R |
Integer32 (0..99999) |
EC500 |
An object that contains the system limit of EC500. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicIsdnDectUsed |
.13 |
R |
Integer32 (0..99999) |
ISDN DECT |
An object that contains the number of used ISDN DECT. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicIpDectUsed |
.14 |
R |
Integer32 (0..99999) |
IP DECT |
An object that contains the number of used IP DECT. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicPhsUsed |
.15 |
R |
Integer32 (0..99999) |
PHS |
An object that contains the number of used PHS. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicOffPbxTelEC500Used |
.16 |
R |
Integer32 (0..99999) |
Off-PBX Telephone - EC500 |
An object that contains the number of used Off-PBX Telephone - EC500. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicOffPbxTelEC500Avail |
.17 |
R |
Integer32 (0..99999) |
Trunk Ports |
An object that contains the number of available Off-PBX Telephone - EC500. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicOffPbxTelEC500LicLimit |
.18 |
R |
Integer32 (0..99999) |
Trunk Ports |
An object that contains the system limit of Off-PBX Telephone - EC500. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicOffPbxTelPBFMCUsed |
.19 |
R |
Integer32 (0..99999) |
Off-PBX Telephone - PBFMC |
An object that contains the number of used Off-PBX Telephone - PBFMC. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicOffPbxTelPBFMCAvail |
.20 |
R |
Integer32 (0..99999) |
Off-PBX Telephone - PBFMC |
An object that contains the number of available Off-PBX Telephone - PBFMC. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicOffPbxTelPBFMCLicLimit |
.21 |
R |
Integer32 (0..99999) |
Off-PBX Telephone - PBFMC |
An object that contains the system limit of Off-PBX Telephone - PBFMC. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicOffPbxTelPVFMCUsed |
.22 |
R |
Integer32 (0..99999) |
Off-PBX Telephone - PVFMC |
An object that contains the number of used Off-PBX Telephone - PVFMC. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicOffPbxTelPVFMCAvail |
.23 |
R |
Integer32 (0..99999) |
Off-PBX Telephone - PVFMC |
An object that contains the number of available Off-PBX Telephone - PVFMC. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicOffPbxTelPVFMCLicLimit |
.24 |
R |
Integer32 (0..99999) |
Off-PBX Telephone - PVFMC |
An object that contains the system limit of Off-PBX Telephone - PVFMC. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicOffPbxTelSCCANUsed |
.25 |
R |
Integer32 (0..99999) |
Off-PBX Telephone - SCCAN |
An object that contains the number of used Off-PBX Telephone - SCCAN. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicOffPbxTelSCCANAvail |
.26 |
R |
Integer32 (0..99999) |
Off-PBX Telephone - SCCAN |
An object that contains the number of available Off-PBX Telephone - SCCAN. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicOffPbxTelSCCANLicLimit |
.27 |
R |
Integer32 (0..99999) |
Off-PBX Telephone - SCCAN |
An object that contains the system limit of Off-PBX Telephone - SCCAN. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicSurvProcUsed |
.28 |
R |
Integer32 (0..99999) |
Survivable Processor Capacity |
An object that contains the number of used Survivable Processor Capacity. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicSurvProcAvail |
.29 |
R |
Integer32 (0..99999) |
Survivable Processor Capacity |
An object that contains the number of available Survivable Processor Capacity. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicSurvProcLicLim |
.30 |
R |
Integer32 (0..99999) |
Survivable Processor Capacity |
An object that contains the system limit of Survivable Processor Capacity. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicAvMedSerVoIPChUsed |
.31 |
R |
Integer32 (0..99999) |
Avaya Media Server VoIP Channels |
An object that contains the number of used Avaya Media Server VoIP Channels. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicAvMedSerVoIPChAvail |
.32 |
R |
Integer32 (0..99999) |
Avaya Media Server VoIP Channels |
An object that contains the number of available Avaya Media Server VoIP Channels. |
SYSTEM CAPACITY |
|||||
avCmCapacityLicAvMedSerVoIPChLicLim |
.33 |
R |
Integer32 (0..99999) |
Avaya Media Server VoIP Channels |
An object that contains the system limit of Avaya Media Server VoIP Channels. |
SYSTEM CAPACITY |

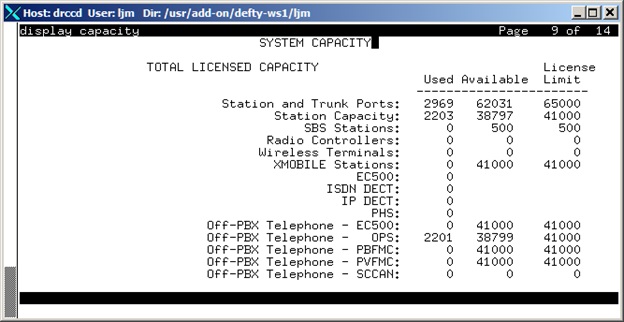

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmCapacityLic
avCmCapacityLicStatTrkPtsUsed.0 = INTEGER: 413
avCmCapacityLicStatTrkPtsAvail.0 = INTEGER: 64587
avCmCapacityLicStatTrkPtsLicLimit.0 = INTEGER: 65000
avCmCapacityLicStatCapUsed.0 = INTEGER: 29
avCmCapacityLicStatCapAvail.0 = INTEGER: 40971
avCmCapacityLicStatCapLicLimit.0 = INTEGER: 41000
avCmCapacityLicXmobileStatUsed.0 = INTEGER: 0
avCmCapacityLicXmobileStatAvail.0 = INTEGER: 41000
avCmCapacityLicXmobileStatLicLimit.0 = INTEGER: 41000
avCmCapacityLicEC500Used.0 = INTEGER: 0
avCmCapacityLicIsdnDectUsed.0 = INTEGER: 0
avCmCapacityLicIpDectUsed.0 = INTEGER: 0
avCmCapacityLicPhsUsed.0 = INTEGER: 0
avCmCapacityLicOffPbxTelEC500Used.0 = INTEGER: 0
avCmCapacityLicOffPbxTelEC500Avail.0 = INTEGER: 41000
avCmCapacityLicOffPbxTelEC500LicLimit.0 = INTEGER: 41000
avCmCapacityLicOffPbxTelOPSUsed.0 = INTEGER: 3
avCmCapacityLicOffPbxTelOPSAvail.0 = INTEGER: 40997
avCmCapacityLicOffPbxTelOPSLicLimit.0 = INTEGER: 41000
avCmCapacityLicOffPbxTelPBFMCUsed.0 = INTEGER: 0
avCmCapacityLicOffPbxTelPBFMCAvail.0 = INTEGER: 41000
avCmCapacityLicOffPbxTelPBFMCAvail.0 = INTEGER: 41000
avCmCapacityLicOffPbxTelPBFMCLicLimit.0 = INTEGER: 41000
avCmCapacityLicOffPbxTelPVFMCUsed.0 = INTEGER: 0
avCmCapacityLicOffPbxTelPVFMCAvail.0 = INTEGER: 41000
avCmCapacityLicOffPbxTelPVFMCLicLimit.0 = INTEGER: 41000
avCmCapacityLicOffPbxTelSCCANUsed.0 = INTEGER: 0
avCmCapacityLicOffPbxTelSCCANAvail.0 = INTEGER: 0
avCmCapacityLicOffPbxTelSCCANLicLimit.0 = INTEGER: 0
avCmCapacityLicSurvProcUsed.0 = INTEGER: 1
avCmCapacityLicSurvProcAvail.0 = INTEGER: 312
avCmCapacityLicSurvProcLicLimit.0 = INTEGER: 313
avCmCapacityLicAvMedSerVoIPChUsed.0 = INTEGER: 0
avCmCapacityLicAvMedSerVoIPChAvail.0 = INTEGER: 40000
avCmCapacityLicAvMedSerVoIPChLicLimit.0 = INTEGER: 40000
