Description

The avCmMeasIpVoStatSumJitterLstHr MIB group displays the jitter recorded during calls in the previous hour for each network region administered on the NETWORK REGION MEASUREMENT SELECTION form.

Releases Supported

6.3.100 and later

Polling Type

Performance/Utilization

Polling Interval

No more than once an hour.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 20 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

Associated Communication Manager Commands:

Reference Document

A detailed description of the command and form can be found in the Avaya Aura® Communication Manager Reports document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

No special permissions needed. The default super user can run this command.

Objects

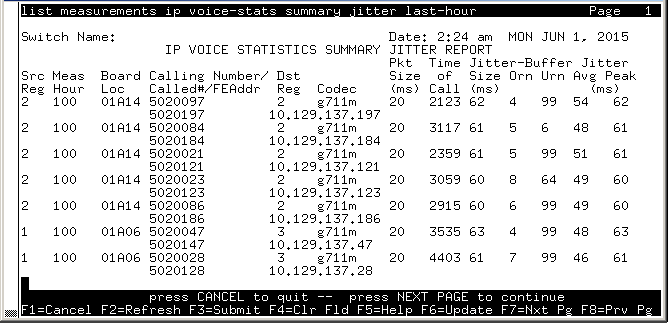

Sample output of forms

Sample Output of SNMP Walk command:

server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmMeasIpVoStatSumJitterLstHr
avCmMeasIpVoStatSumJitterLstHrRegion.1.100.1 = INTEGER: 1
avCmMeasIpVoStatSumJitterLstHrRegion.1.100.2 = INTEGER: 1
:
:
avCmMeasIpVoStatSumJitterLstHrRegion.2.100.5 = INTEGER: 2
avCmMeasIpVoStatSumJitterLstHrMeasHour.1.100.1 = INTEGER: 100
avCmMeasIpVoStatSumJitterLstHrMeasHour.1.100.2 = INTEGER: 100
:
:
avCmMeasIpVoStatSumJitterLstHrMeasHour.2.100.5 = INTEGER: 100
avCmMeasIpVoStatSumJitterLstHrRunTime.1.100.1 = STRING: 2:27 am MON JUN 1, 2015
avCmMeasIpVoStatSumJitterLstHrRunTime.1.100.2 = STRING: 2:27 am MON JUN 1, 2015
:
:
avCmMeasIpVoStatSumJitterLstHrRunTime.2.100.5 = STRING: 2:27 am MON JUN 1, 2015
avCmMeasIpVoStatSumJitterLstHrBoardLoc.1.100.1 = STRING: 01A06
avCmMeasIpVoStatSumJitterLstHrBoardLoc.1.100.2 = STRING: 01A06
:
:
avCmMeasIpVoStatSumJitterLstHrBoardLoc.2.100.5 = STRING: 01A14
avCmMeasIpVoStatSumJitterLstHrCallingNum.1.100.1 = STRING: 5020047
avCmMeasIpVoStatSumJitterLstHrCallingNum.1.100.2 = STRING: 5020028
:
:
avCmMeasIpVoStatSumJitterLstHrCallingNum.2.100.5 = STRING: 5020086
avCmMeasIpVoStatSumJitterLstHrCalledNum.1.100.1 = STRING: 5020147
avCmMeasIpVoStatSumJitterLstHrCalledNum.1.100.2 = STRING: 5020128
:
:
avCmMeasIpVoStatSumJitterLstHrCalledNum.2.100.5 = STRING: 5020186
avCmMeasIpVoStatSumJitterLstHrDstReg.1.100.1 = INTEGER: 3
avCmMeasIpVoStatSumJitterLstHrDstReg.1.100.2 = INTEGER: 3
:
:
avCmMeasIpVoStatSumJitterLstHrDstReg.2.100.5 = INTEGER: 2
avCmMeasIpVoStatSumJitterLstHrCodec.1.100.1 = STRING: g711m
avCmMeasIpVoStatSumJitterLstHrCodec.1.100.2 = STRING: g711m
:
:
avCmMeasIpVoStatSumJitterLstHrCodec.2.100.5 = STRING: g711m
avCmMeasIpVoStatSumJitterLstHrPktSize.1.100.1 = INTEGER: 20
avCmMeasIpVoStatSumJitterLstHrPktSize.1.100.2 = INTEGER: 20
:
:
avCmMeasIpVoStatSumJitterLstHrPktSize.2.100.5 = INTEGER: 20
avCmMeasIpVoStatSumJitterLstHrTimeCall.1.100.1 = STRING: 3535
avCmMeasIpVoStatSumJitterLstHrTimeCall.1.100.2 = STRING: 4403
:
:
avCmMeasIpVoStatSumJitterLstHrTimeCall.2.100.5 = STRING: 2915
avCmMeasIpVoStatSumJitterLstHrBufSize.1.100.1 = STRING: 63
avCmMeasIpVoStatSumJitterLstHrBufSize.1.100.2 = STRING: 61
:
:
avCmMeasIpVoStatSumJitterLstHrBufSize.2.100.5 = STRING: 60
avCmMeasIpVoStatSumJitterLstHrBufOrn.1.100.1 = STRING: 4
avCmMeasIpVoStatSumJitterLstHrBufOrn.1.100.2 = STRING: 7
:
:
avCmMeasIpVoStatSumJitterLstHrBufOrn.2.100.5 = STRING: 6
avCmMeasIpVoStatSumJitterLstHrBufUrn.1.100.1 = STRING: 99
avCmMeasIpVoStatSumJitterLstHrBufUrn.1.100.2 = STRING: 99
:
:
avCmMeasIpVoStatSumJitterLstHrBufUrn.2.100.5 = STRING: 99
avCmMeasIpVoStatSumJitterLstHrAvgJitter.1.100.1 = STRING: 48
avCmMeasIpVoStatSumJitterLstHrAvgJitter.1.100.2 = STRING: 46
:
:
avCmMeasIpVoStatSumJitterLstHrAvgJitter.2.100.5 = STRING: 49
avCmMeasIpVoStatSumJitterLstHrPeakJitter.1.100.1 = STRING: 63
avCmMeasIpVoStatSumJitterLstHrPeakJitter.1.100.2 = STRING: 61
:
:
avCmMeasIpVoStatSumJitterLstHrPeakJitter.2.100.5 = STRING: 60
avCmMeasIpVoStatSumJitterLstHrFarIpAddr.1.100.1 = STRING: 10.129.137.47
avCmMeasIpVoStatSumJitterLstHrFarIpAddr.1.100.2 = STRING: 10.129.137.28
:
:
avCmMeasIpVoStatSumJitterLstHrFarIpAddr.2.100.5 = STRING: 10.129.137.186
