Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListHuntGrp
MIB group name |
OID |
Type |
|---|---|---|
avCmListHuntGrp |
enterprises.6889.2.73.8.1.86 |
Table |
Description
The avCmListHuntGrp MIB group displays information about hunt groups.
Releases Supported
7.0 and later
Polling Type
Inventory and Configuration
Configuration and Inventory
Polling Interval
No more than once an hour when the hunt group administration is changed.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Red/High: The data collected by this MIB Group increases as the number of boards in the system increase. Consequently, this data could be very large and therefore may take a very long time to collect and could impact system performance.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmListHuntGrp |
SAT |
list hunt-group |
HUNT GROUPS |
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmListHuntGrpTable |
.1 |
n/a |
SEQUENCE OF AvCmStatusHuntGrpYestEntry |
n/a |
An object containing the avCmListHuntGrp entries. |
avCmListHuntGrpEntry |
.1.1 |
n/a |
AvCmStatushuntGrpYestEntry |
n/a |
An object containing the avCmListHuntGrpentry with the information that the switch sent. |
avCmListHuntGrpHuntGrpIdx |
.1.1.1 |
n/a |
Integer32 (0..2000) |
n/a |
An object that uniquely identifies each hunt group. |
avCmListHuntGrpHuntGrpNo |
.1.1.2 |
R |
Integer32 (0..9999) |
Grp No |
An object that uniquely identifies each hunt group. |
HUNT GROUPS |
|||||
avCmListHuntGrpRunDate |
.1.1.3 |
R |
Integer32 (0..28) |
Grp Name |
An object containing the hunt group name. |
HUNT GROUPS |
|||||
avCmListHuntGrpGrpName |
.1.1.4 |
R |
Integer32 (0..17) |
Ext |
An object containing the extension of the hunt group. |
HUNT GROUPS |
|||||
avCmListHuntGrpGroupSiz |
.1.1.5 |
R |
Integer32 (0..8) |
Grp Type |
An object containing the extension of the hunt group. |
HUNT GROUPS |
|||||
avCmListHuntGrpMeasHour |
.1.1.6 |
R |
Integer32 (0..4) |
ACD/MEAS |
An object containing the indication whether the hunt group is ACD and measured. |
HUNT GROUPS |
|||||
avCmListHuntGrpTotalUsage |
.1.1.7 |
R |
Integer32 (0..2) |
Vec |
An object containing the indication whether the hunt group is a vector. |
HUNT GROUPS |
|||||
avCmListHuntGrpCallsAns |
.1.1.8 |
R |
Integer32 (0..5) |
MCH |
An object containing the indication whether the hunt group is Multiple Call Handling. |
HUNT GROUPS |
|||||
avCmListHuntGrpGrpQue |
.1.1.9 |
R |
Integer32 (0..2) |
Que |
An object containing the indication whether the hunt group has a queue. |
HUNT GROUPS |
|||||
avCmListHuntGrpCallsQue |
.1.1.10 |
R |
Integer32 (0..9999) |
No Mem |
An object containing the number of group members. |
HUNT GROUPS |
|||||
avCmListHuntGrpQueOvfl |
.1.1.11 |
R |
SnmpAdminString (SIZE (0..5)) |
Cov Pathl |
An object containing the indication whether the hunt group has a coverage path. |
HUNT GROUPS |
|||||
avCmListHuntGrpTimeAvail |
.1.1.12 |
R |
SnmpAdminString (SIZE (0..5)) |
Cov Pathl |
An object containing the indication whether the hunt group has NotifCtgAdj. |
HUNT GROUPS |
|||||
avCmListHuntGrpSpeedAns |
.1.1.13 |
R |
SnmpAdminString (SIZE (0..3)) |
Dom Ctrl |
An object containing the indication whether the hunt group has Domain Control. |
HUNT GROUPS |
|||||
avCmListHuntGrpTyp |
.1.1.14 |
R |
SnmpAdminString (SIZE (0..2)) |
Message Center |
An object containing the indication whether the hunt group has Message Center. |
HUNT GROUPS |
|||||
avCmListHuntGrpAban |
.1.1.15 |
R |
SnmpAdminString (SIZE (0..8)) |
Message Center Name |
An object containing the name of Message Center. |
HUNT GROUPS |

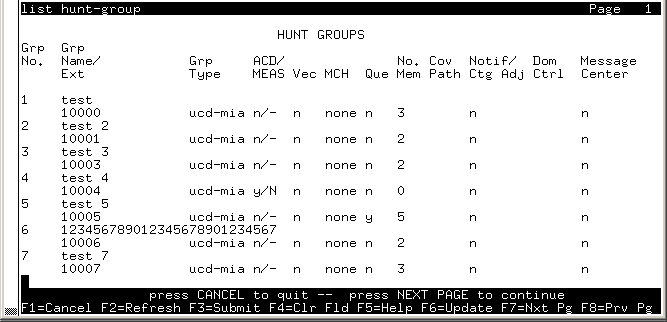

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 20 -v2c -Os -c private 192.0.2.0 -m /usr/share/snmp/mibss/AVAYA-AURA-CM-MIB.txt avCmListHuntGrp
avCmListHuntGrpGrpNumber.1 = INTEGER: 1
avCmListHuntGrpGrpNumber.2 = INTEGER: 2
:
:
avCmListHuntGrpGrpNumber.10 = INTEGER: 10
avCmListHuntGrpGrpName.1 = STRING: test
avCmListHuntGrpGrpName.2 = STRING: test 2
:
:
avCmListHuntGrpGrpName.10 = STRING: test 10
avCmListHuntGrpGrpExt.1 = STRING: 10000
avCmListHuntGrpGrpExt.2 = STRING: 10001
:
:
avCmListHuntGrpGrpExt.10 = STRING: 10010
avCmListHuntGrpGrpType.1 = STRING: ucd-mia
avCmListHuntGrpGrpType.2 = STRING: ucd-mia
:
:
avCmListHuntGrpGrpType.10 = STRING: ucd-mia
avCmListHuntGrpGrpAcdMeas.1 = STRING: n/-
avCmListHuntGrpGrpAcdMeas.2 = STRING: n/-
:
:
avCmListHuntGrpGrpAcdMeas.10 = STRING: n/-
avCmListHuntGrpGrpVec.1 = STRING:
avCmListHuntGrpGrpVec.2 = STRING:
:
:
avCmListHuntGrpGrpVec.10 = STRING:
avCmListHuntGrpGrpMch.1 = STRING:
avCmListHuntGrpGrpMch.2 = STRING:
:
:
avCmListHuntGrpGrpMch.10 = STRING:
avCmListHuntGrpGrpQue.1 = STRING: n
avCmListHuntGrpGrpQue.2 = STRING: n
:
:
avCmListHuntGrpGrpQue.10 = STRING: n
avCmListHuntGrpGrpNoMem.1 = INTEGER: 3
avCmListHuntGrpGrpNoMem.2 = INTEGER: 2
:
:
avCmListHuntGrpGrpNoMem.10 = INTEGER: 2
avCmListHuntGrpCovPath.1 = STRING:
avCmListHuntGrpCovPath.2 = STRING:
:
:
avCmListHuntGrpCovPath.10 = STRING:
avCmListHuntGrpNotifCtgAdj.1 = STRING: n
avCmListHuntGrpNotifCtgAdj.2 = STRING: n
:
:
avCmListHuntGrpNotifCtgAdj.10 = STRING: n
avCmListHuntGrpDomCtrl.1 = STRING:
avCmListHuntGrpDomCtrl.2 = STRING:
:
:
avCmListHuntGrpDomCtrl.10 = STRING:
avCmListHuntGrpMsgCtr.1 = STRING: n
avCmListHuntGrpMsgCtr.2 = STRING: n
:
:
avCmListHuntGrpMsgCtr.10 = STRING: n
avCmListHuntGrpMsgCtrName.1 = STRING:
avCmListHuntGrpMsgCtrName.2 = STRING:
:
:
avCmListHuntGrpMsgCtrName.10 = STRING:
