Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListNodeNamesV6
MIB group name |
OID |
Type |
|---|---|---|
avCmListNodeNamesV6 Group |
enterprises.6889.2.73.8.1.53 |
Table |
Description
The avCmListNodeNamesV6 Group MIB Group uses the list node-names v6 command to retrieve IPV6 address node name data.
Releases Supported
6.3.100 and later
Polling Type
Inventory
Polling Interval
No more than every 20 minutes.
Default Caching Interval
600 seconds
Timeout Interval
Initial Time-out should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Green/Low: The data collected by this MIB Group is minimal and therefore has a low impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmListNodenNamesV6Group |
SAT |
list node-names v6 |
NODE NAMES |
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmListNodeNamesV6Table |
.1 |
R |
SEQUENCE OF AvCmListNodeNamesV6Entry |
n/a |
A list of the avCmListNodeNamesV6 entries. |
avCmListNodeNamesV4Entry |
.1.1 |
R |
AvCmListNodeNamesV6Entry |
n/a |
A avCmListNodeNamesV6 entry containing objects of the avCmListNodeNamesV6 information sent by the switch. |
avCmCapacityCallVecMeetMeVdnUsed |
.1.1.1 |
R |
SnmpAdminString (SIZE (0..16)) |
n/a |
An object that identifies each increment of data. |
avCmCapacityHuntGrpsSpSkSysLim |
.1.1.2 |
R |
SnmpAdminString (SIZE (0..16)) |
Name |
An object containing the Name of the node. |
NODE NAMES |
|||||
avCmCapacityHuntGrpsAdmLogAgtUsed |
.1.1.3 |
R |
SnmpAdminString (SIZE (0..6)) |
Type |
An object containing the type of node name. |
NODE NAMES |
|||||
avCmListNodeNamesV4IPAddress |
.1.1.4 |
R |
SnmpAdminString (SIZE (0..41)) |
IP Address |
An object containing either an IPV4 or IPV6 IP Address. |
NODE NAMES |

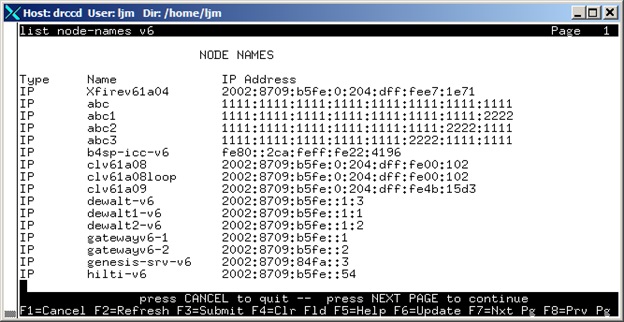

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmListNodeNamesV6
avCmListNodeNamesV6Name."abc" = STRING: abc
avCmListNodeNamesV6Name."abc1" = STRING: abc1
avCmListNodeNamesV6Name."abc2" = STRING: abc2
avCmListNodeNamesV6Name."abc3" = STRING: abc3
avCmListNodeNamesV6Name."ppp1" = STRING: ppp1
avCmListNodeNamesV6Name."ppp2" = STRING: ppp2
avCmListNodeNamesV6Name."procr6" = STRING: procr6
avCmListNodeNamesV6Name."v6procr" = STRING: v6procr
avCmListNodeNamesV6Name."clv61a08" = STRING: clv61a08
avCmListNodeNamesV6Name."clv61a09" = STRING: clv61a09
avCmListNodeNamesV6Name."hilti-v6" = STRING: hilti-v6
avCmListNodeNamesV6Name."dewalt-v6" = STRING: dewalt-v6
avCmListNodeNamesV6Name."dewalt1-v6" = STRING: dewalt1-v6
avCmListNodeNamesV6Name."dewalt2-v6" = STRING: dewalt2-v6
avCmListNodeNamesV6Name."Xfirev61a04" = STRING: Xfirev61a04
avCmListNodeNamesV6Name."b4sp-icc-v6" = STRING: b4sp-icc-v6
avCmListNodeNamesV6Name."gatewayv6-1" = STRING: gatewayv6-1
avCmListNodeNamesV6Name."gatewayv6-2" = STRING: gatewayv6-2
avCmListNodeNamesV6Name."lzsw-procr6" = STRING: lzsw-procr6
avCmListNodeNamesV6Name."clv61a08loop" = STRING: clv61a08loop
avCmListNodeNamesV6Name."genesis-srv-v6" = STRING: genesis-srv-v6
avCmListNodeNamesV6Type."abc" = STRING: IP
avCmListNodeNamesV6Type."abc1" = STRING: IP
avCmListNodeNamesV6Type."abc2" = STRING: IP
avCmListNodeNamesV6Type."abc3" = STRING: IP
avCmListNodeNamesV6Type."ppp1" = STRING: IP
avCmListNodeNamesV6Type."ppp2" = STRING: IP
avCmListNodeNamesV6Type."procr6" = STRING: IP
avCmListNodeNamesV6Type."v6procr" = STRING: IP
avCmListNodeNamesV6Type."clv61a08" = STRING: IP
avCmListNodeNamesV6Type."clv61a09" = STRING: IP
avCmListNodeNamesV6Type."hilti-v6" = STRING: IP
avCmListNodeNamesV6Type."dewalt-v6" = STRING: IP
avCmListNodeNamesV6Type."dewalt1-v6" = STRING: IP
avCmListNodeNamesV6Type."dewalt2-v6" = STRING: IP
avCmListNodeNamesV6Type."Xfirev61a04" = STRING: IP
avCmListNodeNamesV6Type."b4sp-icc-v6" = STRING: IP
avCmListNodeNamesV6Type."gatewayv6-1" = STRING: IP
avCmListNodeNamesV6Type."gatewayv6-2" = STRING: IP
avCmListNodeNamesV6Type."lzsw-procr6" = STRING: IP
avCmListNodeNamesV6Type."clv61a08loop" = STRING: IP
avCmListNodeNamesV6Type."genesis-srv-v6" = STRING: IP
avCmListNodeNamesV6IPAddress."abc" = STRING: 1111:1111:1111:1111:1111:1111:1111:1111
avCmListNodeNamesV6IPAddress."abc1" = STRING: 1111:1111:1111:1111:1111:1111:1111:2222
avCmListNodeNamesV6IPAddress."abc2" = STRING: 1111:1111:1111:1111:1111:1111:2222:1111
avCmListNodeNamesV6IPAddress."abc3" = STRING: 1111:1111:1111:1111:1111:2222:1111:1111
avCmListNodeNamesV6IPAddress."ppp1" = STRING: 2002::5
avCmListNodeNamesV6IPAddress."ppp2" = STRING: 2002::6
avCmListNodeNamesV6IPAddress."procr6" = STRING: 2002:8709:b5fe::79
avCmListNodeNamesV6IPAddress."v6procr" = STRING: 2002:8709:b5fe::79
avCmListNodeNamesV6IPAddress."clv61a08" = STRING: 2002:8709:b5fe:0:204:dff:fe00:102
avCmListNodeNamesV6IPAddress."clv61a09" = STRING: 2002:8709:b5fe:0:204:dff:fe4b:15d3
