Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasOccBusIntvl
In Communication Manager Release 8.0, occupancy OID has been deprecated and replaced by the following occupancy OID corresponding to the avCmMeasOccBusIntvl MIB.
MIB group name |
New OID name |
New OID |
Type |
|---|---|---|---|
avCmMeasOccBusIntvl |
avCmMeasOccBusIntvlOcc |
enterprises.6889.2.73.8.1.34.1.1.15 |
Table |
Description
The avCmMeasOccBusIntvl MIB Group uses the list occupancy busiest-intervals command to retrieve the occupancy data from the busiest intervals.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once a day.
Default Caching Interval
300 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasOccBusIntvl |
SAT |
list occupancy busiest-intervals |
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS |
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasOccBusIntvlTable |
.1 |
n/a |
SEQUENCE OF avCmMeasOccBusIntvlEntry |
n/a |
An object that contains a list of the avCmMeasOccBusIntvl entries |
avCmMeasOccBusIntvlEntry |
.1.1 |
n/a |
avCmMeasOccBusIntvlEntry |
n/a |
A avCmMeasOccBusIntvl entry containing objects of the avCmMeasOccBusIntvl information sent by the switch. |
avCmMeasOccBusIntvlIdx |
.1.1.1 |
n/a |
Integer32 (0..2300) |
n/a |
An object that uniquely identifies each increment of data. |
avCmMeasOccBusIntvlDateofOcc |
.1.1.2 |
R |
Integer32 (0..12) |
Meas Hour |
An object containing the date and time of occurrence. |
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS |
|||||
avCmMeasOccBusIntvlRunDate |
.1.1.3 |
R |
SnmpAdminString (SIZE (0..27)) |
Date |
An object containing the Date the command was executed. |
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS |
|||||
avCmMeasOccBusIntvlStatOcc |
.1.1.4 |
R |
Integer32 (0..100) |
Occupancy |
An object that contains the processor utilized by static processes. |
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS |
|||||
avCmMeasOccBusIntvlTotCall |
.1.1.8 |
R |
Integer32 (0..100) |
Total Calls |
An object containing the total calls connected to the measurement hour. |
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS |
|||||
avCmMeasOccBusIntvlTandCall |
.1.1.9 |
R |
Integer32 (0..100) |
Tandem Calls |
An object containing trunk-to-trunk calls connected for the measurement hour. |
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS |
|||||
avCmMeasOccBusIntvlTotConn |
.1.1.10 |
R |
Integer32 (0..100) |
Total Conn |
An object containing the total calls connected for the measurement hour. |
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS |
|||||
avCmMeasOccBusIntvlIntcomAtt |
.1.1.11 |
R |
Integer32 (0..100) |
Intcom Atmpts |
An object containing the number of extension-to-extension calls on the same switch and partially completed calls for the measurement hour. |
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS |
|||||
avCmMeasOccBusIntvlIncAtt |
.1.1.12 |
R |
Integer32 (0..100) |
Inc Atmpts |
An object containing the number of incoming trunk seizures from public network facilities. |
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS |
|||||
avCmMeasOccBusIntvlOutAtt |
.1.1.13 |
R |
Integer32 (0..100) |
Out Atmpts |
An object containing the number of outgoing trunk seizures from public network facilities. |
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS |
|||||
avCmMeasOccBusIntvlPnetAtt |
.1.1.14 |
R |
Integer32 (0..100) |
Pnet Atmpts |
An object containing the number of trunk seizures from public network facilities. |
OCCUPANCY BUSIEST 3-MINUTE INTERVALS MEASUREMENTS |

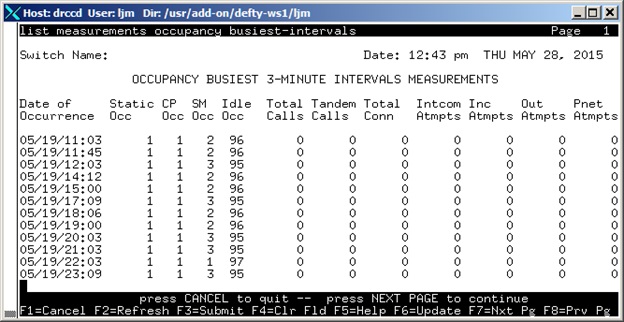

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -v 2c -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmMeasOccBusIntvl
avCmMeasOccBusIntvlDateofOcc.5191103 = STRING: 05/19/11:03
avCmMeasOccBusIntvlDateofOcc.5191145 = STRING: 05/19/11:45
:
:
avCmMeasOccBusIntvlDateofOcc.5200815 = STRING: 05/20/08:15
avCmMeasOccBusIntvlRunDate.5191103 = STRING: 12:44 pm THU MAY 28, 2015
avCmMeasOccBusIntvlRunDate.5191145 = STRING: 12:44 pm THU MAY 28, 2015
:
:
avCmMeasOccBusIntvlRunDate.5200815 = STRING: 12:44 pm THU MAY 28, 2015
avCmMeasOccBusIntvlStatOcc.5191103 = INTEGER: 1
avCmMeasOccBusIntvlStatOcc.5191145 = INTEGER: 1
:
:
avCmMeasOccBusIntvlStatOcc.5200815 = INTEGER: 1
avCmMeasOccBusIntvlCPOcc.5191103 = INTEGER: 1
avCmMeasOccBusIntvlCPOcc.5191145 = INTEGER: 1
:
:
avCmMeasOccBusIntvlCPOcc.5200815 = INTEGER: 1
avCmMeasOccBusIntvlSMOcc.5191103 = INTEGER: 2
avCmMeasOccBusIntvlSMOcc.5191145 = INTEGER: 2
:
:
avCmMeasOccBusIntvlSMOcc.5200815 = INTEGER: 2
avCmMeasOccBusIntvlIdleOcc.5191103 = INTEGER: 96
avCmMeasOccBusIntvlIdleOcc.5191145 = INTEGER: 96
:
:
avCmMeasOccBusIntvlIdleOcc.5200815 = INTEGER: 96
avCmMeasOccBusIntvlTotCall.5191103 = INTEGER: 0
avCmMeasOccBusIntvlTotCall.5191145 = INTEGER: 0
:
:
avCmMeasOccBusIntvlTotCall.5200815 = INTEGER: 0
avCmMeasOccBusIntvlTandCall.5191103 = INTEGER: 0
avCmMeasOccBusIntvlTandCall.5191145 = INTEGER: 0
:
:
avCmMeasOccBusIntvlTandCall.5200815 = INTEGER: 0
avCmMeasOccBusIntvlTotConn.5191103 = INTEGER: 0
avCmMeasOccBusIntvlTotConn.5191145 = INTEGER: 0
:
:
avCmMeasOccBusIntvlTotConn.5200815 = INTEGER: 0
avCmMeasOccBusIntvlIntcomAtt.5191103 = INTEGER: 0
avCmMeasOccBusIntvlIntcomAtt.5191145 = INTEGER: 0
:
:
avCmMeasOccBusIntvlIntcomAtt.5200815 = INTEGER: 0
avCmMeasOccBusIntvlIncAtt.5191103 = INTEGER: 0
avCmMeasOccBusIntvlIncAtt.5191145 = INTEGER: 0
:
:
avCmMeasOccBusIntvlIncAtt.5200815 = INTEGER: 0
avCmMeasOccBusIntvlOutAtt.5191103 = INTEGER: 0
avCmMeasOccBusIntvlOutAtt.5191145 = INTEGER: 0
:
:
avCmMeasOccBusIntvlOutAtt.5200815 = INTEGER: 0
avCmMeasOccBusIntvlPnetAtt.5191103 = INTEGER: 0
avCmMeasOccBusIntvlPnetAtt.5191145 = INTEGER: 0
:
:
avCmMeasOccBusIntvlPnetAtt.5200815 = INTEGER: 0
