avCmDispSurvProcessGroup

SAT

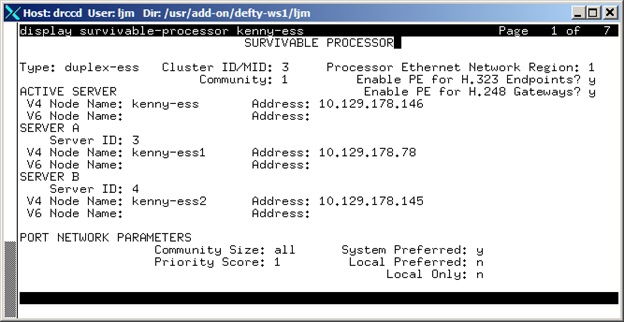

display survivable-processor

SURVIVABLE PROCESSORS

avCmDispSurvProcessTable

.1

n/a

SEQUENCE OF avCmDispSurvProcessEntry

n/a

A Disp of the avCmDispSurvProcess entries

avCmDispSurvProcessEntry

.1.1

n/a

Integer32 (0..9999)

n/a

A avCmDispSurvProcess entry containing objects of the avCmDispSurvProcessinformation sent by the switch.

avCmDispSurvProcessNameIdx

.1.1.1

n/a

SnmpAdminString (SIZE (0..16))

n/a

An object that identifies each increment of data.

avCmDispSurvProcessNodeName

.1.1.2

R

SnmpAdminString (SIZE (0..16))

Name

An object that contains the name of the survivable processor.

SURVIVABLE PROCESSORS

avCmDispSurvProcessType

.1.1.3

R

SnmpAdminString (SIZE (0..13))

Type

An object containing the name of the survivable processor.

SURVIVABLE PROCESSORS

avCmDispSurvProcessClusterId

.1.1.4

R

InavCmDispSurvProcessClusterId

Cluster ID/MID

An object containing the cluster id or MID of the survivable processor.

SURVIVABLE PROCESSORS

avCmDispSurvProcessActivesrvIP

.1.1.5

R

SnmpAdminString (SIZE (0..41))

ACTI Address

An object containing the survivable processor active IP address.

SURVIVABLE PROCESSORS

avCmDispSurvProcessAID

.1.1.6

R

Integer32 (0..999)

A Server ID

An object containing the survivable processor A server ID.

SURVIVABLE PROCESSORS

avCmDispSurvProcessAnodename

.1.1.7

R

SnmpAdminString (SIZE (0..16))

SERVER A V4 Node Name

An object containing the survivable processor SERVER A V4 Node Name.

SURVIVABLE PROCESSORS

avCmDispSurvProcessAIP

.1.1.8

R

SnmpAdminString (SIZE (0..41))

SERVER A V4 Address

An object containing the survivable processor SERVER A V4 IP Address.

SURVIVABLE PROCESSORS

avCmDispSurvProcessBID

.1.1.9

R

Integer32 (0..999)

B Server ID

An object containing the survivable processor B server ID.

SURVIVABLE PROCESSORS

avCmDispSurvProcessBnodename

.1.1.10

R

SnmpAdminString (SIZE (0..16))

SERVER B V4 Node Name

An object containing the survivable processor SERVER B V4 Node Name.

SURVIVABLE PROCESSORS

avCmDispSurvProcessBIP

.1.1.11

R

SnmpAdminString (SIZE (0..41))

SERVER B V4 Address

An object containing the survivable processor SERVER B V4 IP Address.

SURVIVABLE PROCESSORS

avCmDispSurvProcessSystemPref

.1.1.12

R

SnmpAdminString (SIZE (0..2))

System Preferred

An object containing whether System Preferred enabled for the survivable processor.

SURVIVABLE PROCESSORS

avCmDispSurvProcessPriorityscore

.1.1.13

R

Integer32 (0..100)

Priority Score

An object containing the Priority Score for the survivable processor.

SURVIVABLE PROCESSORS

avCmDispSurvProcessLocalPref

.1.1.14

R

SnmpAdminString (SIZE (0..2))

Local Preferred

An object containing whether Local Preferred enabledfor the survivable processor.

SURVIVABLE PROCESSORS

avCmDispSurvProcessLocalOnly

.1.1.15

R

SnmpAdminString (SIZE (0..2))

Local Only

An object containing whether Local Only enabled for the survivable processor.

SURVIVABLE PROCESSORS

avCmDispSurvProcessV6NodeName

.1.1.16

R

SnmpAdminString (SIZE (0..16))

V6 Node Name

An object containing the IPV6 Node Name for the survivable processor.

SURVIVABLE PROCESSORS

avCmDispSurvProcessV6IP

.1.1.17

R

SnmpAdminString (SIZE (0..41))

V6 Address

An object containing the IPV6 Address for the survivable processor.

SURVIVABLE PROCESSORS

avCmDispSurvProcessAV6NodeName

.1.1.18

R

SnmpAdminString (SIZE (0..2))

SERVER A V6 Node Name

An object containing the server A IPV6 Node Name for the survivable processor.

SURVIVABLE PROCESSORS

avCmDispSurvProcessAV6IP

.1.1.19

R

SnmpAdminString (SIZE (0..41))

SERVER B V6 Address

An object containing the server A IPV6 Address for the survivable processor.

SURVIVABLE PROCESSORS

avCmDispSurvProcessBV6NodeName

.1.1.20

R

SnmpAdminString (SIZE (0..16))

SERVER B V6 Node Name

SERVER B V6 Address for the survivable processor.

SURVIVABLE PROCESSORS

avCmDispSurvProcessBV6IP

.1.1.21

R

SnmpAdminString (SIZE (0..41))

SERVER B V6 Address

SERVER B V6 Address for the survivable processor.

SURVIVABLE PROCESSORS
