Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmErrors
MIB group name |
OID |
Type |
|---|---|---|
avCmErrors |
enterprises.6889.2.73.8.1.6 |
Table |
Description
The avCmErrors MIB group displays the output of CMs error log.
Releases Supported
6.3.100 and later
Polling Type
Fault
Polling Interval
No more than every 1 hour.
Default Caching Interval
300 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Red/High: The data collected by this MIB Group increases as the number of boards in the system increase. Consequently, this data could be very large and therefore may take a very long time to collect and could impact system performance.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmErrors |
SAT |
display errors |
ERROR REPORT |
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmErrorsTable |
.1 |
n/a |
n/a |
n/a |
a list of the avCmErrors entries. |
avCmErrorsEntry |
.1.1 |
n/a |
n/a |
n/a |
An avCmErrorsentry containing objects of the avCmErrors information sent by the switch. |
avCmErrorsPortldx |
.1.1.1 |
n/a |
SnmpAdminString (SIZE (0..10)) |
n/a |
An object that uniquely identifies a port based on its location in the system. The syntax for the Port Number is as follows: cabinet (01-64): carrier (A-E): slot (01-20): port (01-64). |
avCmErrorsMtceNameIdx |
.1.1.2 |
n/a |
SnmpAdminString (SIZE (0..9)) |
n/a |
An object containing an index that uniquely identifies a Maintenance Object Name. |
avCmErrorsIndex |
.1.1.3 |
n/a |
Integer32 (0..6500) |
n/a |
An object containing an index that numbers the alarm entry for the avCmErrorsPortIdx. This object along with avCmErrorsPortIdx serves as the instance identifier for avCmErrorsEntry. |
avCmErrorsPort |
.1.1.4 |
R |
SnmpAdminString (SIZE (0..10)) |
Port |
An object that uniquely identifies a port based on its location in the system. The syntax for the Port Number is as follows: cabinet (01-64): carrier (A-E): slot (01-20): port (01-64). |
ERROR REPORT |
|||||
avCmErrorsMtceName |
.1.1.5 |
R |
SnmpAdminString (SIZE (0..9)) |
Mtce Name |
An object that contains the Maintenance Object Name. |
ERROR REPORT |
|||||
avCmErrorsAltName |
.1.1.6 |
R |
SnmpAdminString (SIZE (0..14)) |
Alt Name |
An object that contains the the alternate name of the alarmed object. Alternate names can consist of extension numbers, trunk group numbers or other identifying data. |
ERROR REPORT |
|||||
avCmErrorsErrType |
.1.1.7 |
R |
SnmpAdminString (SIZE (0..8)) |
Err Type |
An object that contains the specific error type in numeric code used to determine the type of error. |
ERROR REPORT |
|||||
avCmErrorsAuxData |
.1.1.8 |
R |
SnmpAdminString (SIZE (0..6)) |
Aux Data |
An object that contains the numeric auxiliary code used with the errType to troubleshoot a problem. |
ERROR REPORT |
|||||
avCmErrorsFirstLastOccurrence |
.1.1.9 |
R |
SnmpAdminString (SIZE (0..37)) |
First / Last Occurrence |
An object that contains the mon/day/hour: min the alarm first last occurred. |
ERROR REPORT |
|||||
avCmErrorsErrCnt |
.1.1.10 |
R |
SnmpAdminString (SIZE (0..4)) |
err Cnt |
An object that contains a numeric count of the occurrence of error. |
ERROR REPORT |
|||||
avCmErrorsErrRt |
.1.1.11 |
R |
SnmpAdminString (SIZE (0..4)) |
Err Rt |
An object that contains the error rate occurrences of the error hour. |
ERROR REPORT |
|||||
avCmErrorsRtHr |
.1.1.12 |
R |
SnmpAdminString (SIZE (0..4)) |
Rt Hr |
A DisplayString Object containing the error rate per hour. |
ERROR REPORT |
|||||
avCmErrorsAlSt |
.1.1.13 |
R |
SnmpAdminString (SIZE (0..2)) |
Alm St |
An object that contains the alarm state of the error. |
ERROR REPORT |
|||||
avCmErrorsAc |
.1.1.14 |
R |
SnmpAdminString (SIZE (0..2)) |
Ac |
An object that contains the Maintenance Object active state. |
ERROR REPORT |

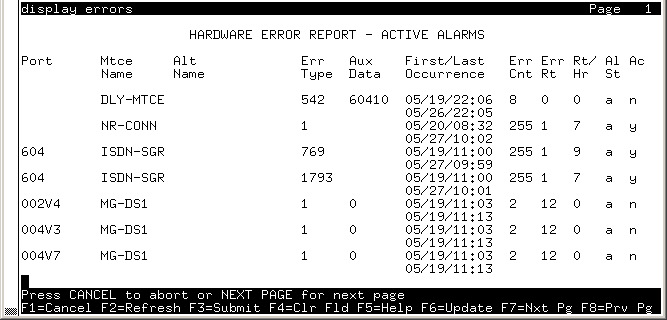

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmErrors
avCmErrorsPort."604"."ISDN-SGR".1 = STRING: 604
avCmErrorsPort."604"."ISDN-SGR".2 = STRING: 604
:
:
avCmErrorsPort."000000000"."SP-REG-M".1 = STRING: 000000000
avCmErrorsMtceName."604"."ISDN-SGR".1 = STRING: ISDN-SGR
:
:
avCmErrorsMtceName."000000000"."SP-REG-M".1 = STRING: SP-REG-M
avCmErrorsAltName."604"."ISDN-SGR".1 = STRING:
avCmErrorsAltName."604"."ISDN-SGR".2 = STRING:
:
:
avCmErrorsAltName."000000000"."SP-REG-M".1 = STRING:
avCmErrorsErrType."604"."ISDN-SGR".1 = STRING: 1793
avCmErrorsErrType."604"."ISDN-SGR".2 = STRING: 769
:
:
avCmErrorsErrType."000000000"."SP-REG-M".1 = STRING: 257
avCmErrorsAuxData."604"."ISDN-SGR".1 = STRING:
avCmErrorsAuxData."604"."ISDN-SGR".2 = STRING:
:
:
avCmErrorsAuxData."000000000"."SP-REG-M".1 = STRING: 2
avCmErrorsFirstLastOccurrence."604"."ISDN-SGR".1 = STRING: First: 05/19/11:00 Last: 05/27/10:01
avCmErrorsFirstLastOccurrence."604"."ISDN-SGR".2 = STRING: First: 05/19/11:00 Last: 05/27/09:59
27
:
:
avCmErrorsFirstLastOccurrence."000000000"."SP-REG-M".1 = STRING: First: 05/19/11:09 Last: 05/19/11:09
avCmErrorsErrCnt."604"."ISDN-SGR".1 = STRING: 255
avCmErrorsErrCnt."604"."ISDN-SGR".2 = STRING: 255
:
:
avCmErrorsErrCnt."000000000"."SP-REG-M".1 = STRING: 1
avCmErrorsErrRt."604"."ISDN-SGR".1 = STRING: 1
avCmErrorsErrRt."604"."ISDN-SGR".2 = STRING: 1
:
:
avCmErrorsErrRt."000000000"."SP-REG-M".1 = STRING: 0
avCmErrorsRtHr."604"."ISDN-SGR".1 = STRING: 7
avCmErrorsRtHr."604"."ISDN-SGR".2 = STRING: 9
:
:
avCmErrorsRtHr."000000000"."SP-REG-M".1 = STRING: 0
avCmErrorsAlSt."604"."ISDN-SGR".1 = STRING: a
avCmErrorsAlSt."604"."ISDN-SGR".2 = STRING: a
:
:
avCmErrorsAlSt."000000000"."SP-REG-M".1 = STRING: a
avCmErrorsAc."604"."ISDN-SGR".1 = STRING: y
avCmErrorsAc."604"."ISDN-SGR".2 = STRING: y
:
:
avCmErrorsAc."000000000"."SP-REG-M".1 = STRING: y
