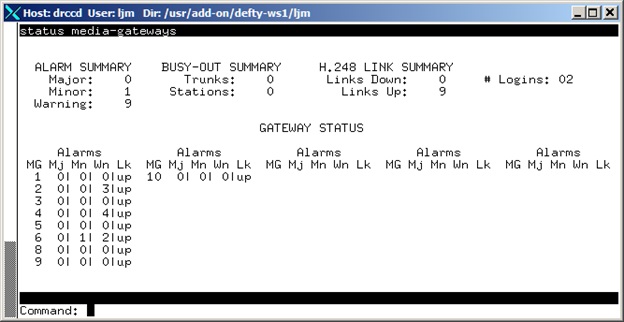

avCmStatusMedGateway

SAT

status media-gateways

GATEWAY STATUS

avCmStatusMedGatewayAlmMajor

.1

R

Integer32 (0..9999)

Alarms Major

An object that contains the number of major alarms.

GATEWAY STATUS

avCmStatusMedGatewayAlmMinor

.2

R

Integer32 (0..9999)

Alarms Major

An object that contains the number of minor alarms.

GATEWAY STATUS

avCmStatusMedGatewayAlmWarning

.3

R

Integer32 (0..9999)

Alarms Warning

An object that contains the number of warning alarms.

GATEWAY STATUS

avCmStatusMedGatewayBusyOutTrunks

.4

R

Integer32 (0..9999)

BUSYOUT Trunks

An object that contains the number of Busied Out Trunks.

GATEWAY STATUS

avCmStatusMedGatewayBusyOutStations

.5

R

Integer32 (0..9999)

BUSYOUT Stations

An object that contains the number of Busied Out stations.

GATEWAY STATUS

avCmStatusMedGatewayH248LinksDown

.6

R

Integer32 (0..9999)

Links Down

An object containing the total number of media gateways administered in a system that do not have a H.248 link established to the media gateway controller.

GATEWAY STATUS

avCmStatusMedGatewayH248LinksUp

.7

R

Integer32 (0..9999)

Links Up

An object containing the total number of media gateways administered in a system that do have a H.248 link established to the media gateway controller.

GATEWAY STATUS

avCmStatusMedGatewayNbrLogins

.8

R

Integer32 (0..99)

# Logins

An object containing the total number of logins into the system.

GATEWAY STATUS

avCmStatusMedGatewayAlarms1

.9

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms2

.10

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms3

.11

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms4

.12

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms5

.13

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms6

.14

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms7

.15

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms8

.16

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms9

.17

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms10

.18

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms11

.19

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms12

.20

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms13

.21

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms14

.22

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms15

.23

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms16

.24

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms17

.25

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms18

.26

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms19

.27

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms20

.28

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms21

.29

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms22

.30

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms23

.31

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms24

.32

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms25

.33

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms26

.34

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms27

.35

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms28

.36

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms29

.37

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms30

.38

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms31

.39

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms32

.40

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms33

.41

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms34

.42

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms35

.43

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms36

.44

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms37

.45

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms38

.46

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms39

.47

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms40

.48

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms41

.49

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms42

.50

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms43

.51

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms44

.52

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms45

.53

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms46

.54

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms47

.55

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms48

.56

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms49

.57

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms50

.58

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms51

.59

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms52

.60

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms53

.61

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms54

.62

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms55

.63

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms56

.64

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms57

.65

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms58

.66

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms59

.67

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms60

.68

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms61

.69

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms62

.70

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms63

.71

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms64

.72

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms65

.73

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms66

.74

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms67

.75

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms68

.76

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms69

.77

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms70

.78

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms71

.79

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms72

.80

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms73

.81

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms74

.82

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms75

.83

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms76

.84

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms77

.85

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms78

.86

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms79

.87

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms80

.88

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms81

.89

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms82

.90

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms83

.91

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms84

.92

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms85

.93

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms86

.94

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms87

.95

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms88

.96

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms89

.97

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms90

.98

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms91

.99

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms92

.100

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms93

.101

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms94

.102

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms95

.103

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms96

.104

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms97

.105

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms98

.106

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms99

.107

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms100

.108

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms101

.109

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms102

.110

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms103

.111

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms104

.112

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms105

.113

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms106

.114

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms107

.115

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms108

.116

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms109

.117

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms110

.118

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms111

.119

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms112

.120

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms113

.121

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms114

.122

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms115

.123

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms116

.124

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms117

.125

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms118

.126

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms119

.127

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms120

.128

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms121

.129

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms122

.130

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms123

.131

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms124

.132

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms125

.133

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms126

.134

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms127

.135

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms128

.136

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms129

.137

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms130

.138

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms131

.139

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms132

.140

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms133

.141

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms134

.142

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms135

.143

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms136

.144

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms137

.145

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms138

.146

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms139

.147

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms140

.148

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms141

.149

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms142

.150

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms143

.151

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms144

.152

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms145

.153

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms146

.154

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms147

.155

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms148

.156

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms149

.157

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms150

.158

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms151

.159

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms152

.160

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms153

.161

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms154

.162

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms155

.163

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms156

.164

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms157

.165

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms158

.166

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms159

.167

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms160

.168

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms161

.169

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms162

.170

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms163

.171

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms164

.172

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms165

.173

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms166

.174

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms167

.175

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms168

.176

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms169

.177

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms170

.178

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms171

.179

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms172

.180

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms173

.181

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms174

.182

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms175

.183

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms176

.184

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms177

.185

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms178

.186

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms179

.187

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms180

.188

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms181

.189

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms182

.190

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms183

.191

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms184

.192

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms185

.193

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms186

.194

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms187

.195

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms188

.196

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms189

.197

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms190

.198

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms191

.199

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms192

.200

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms193

.201

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms194

.202

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms195

.203

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms196

.204

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms197

.205

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms198

.206

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms199

.207

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms200

.208

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms201

.209

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms202

.210

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms203

.211

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms204

.212

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms205

.213

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms206

.214

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms207

.215

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms208

.216

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms209

.217

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms210

.218

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms211

.219

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms212

.220

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms213

.221

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms214

.222

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms215

.223

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms216

.224

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms217

.225

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms218

.226

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms219

.227

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms220

.228

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms221

.229

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms222

.230

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms223

.231

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms224

.232

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms225

.233

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms226

.234

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms227

.235

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms228

.236

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms229

.237

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms230

.238

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms231

.239

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms232

.240

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms233

.241

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms234

.242

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms235

.243

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms236

.244

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms237

.245

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms238

.246

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms239

.247

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms240

.248

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms241

.249

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms242

.250

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms243

.251

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms244

.252

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms245

.253

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms246

.254

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms247

.255

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms248

.256

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms249

.257

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS

avCmStatusMedGatewayAlarms250

.258

R

Integer32 (0..9999)

Assigned Ports

An object containing the status of the first set of eight media gateways, including the number of major alarms, minor alarms, warnings, and the H.248 link status for each specific media gateway number.

GATEWAY STATUS
