Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListMedGateway Group
MIB group name |
OID |
Type |
|---|---|---|
avCmListMedGateway Group |
enterprises.6889.2.73.8.1.45 |
Table |
Description
The avCmListMedGateway MIB group uses the list media-gateway command to retrieve media-gateway data.
Releases Supported
6.3.100 and later
Polling Type
Polling Interval
No more than once an hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Green/Low: The data collected by this MIB Group is minimal and therefore has a low impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmListMedGateway Group |
SAT |
list media-gateway |
MEDIA-GATEWAY REPORT |
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmListMedGatewayTable |
.1 |
n/a |
SEQUENCE OF AvCmMeasSecViolationSumEntry |
n/a |
An object that contains a list of the avCmListMedGateway entries. |
avCmListMedGatewayEntry |
.1.1 |
n/a |
AvCmListMedGatewayEntry |
n/a |
A avCmListMedGateway entry containing objects of the avCmListMedGateway information sent by the switch. |
avCmListMedGatewayNumIdx |
.1.1.1 |
n/a |
Integer32 (0..999) |
n/a |
An object that uniquely identifies each increment of data. |
avCmListMedGatewayNumber |
.1.1.2 |
R |
Integer32 (0..999) |
Num |
An object containing the Gateway Number. |
MEDIA-GATEWAY REPORT |
|||||
avCmListMedGatewayName |
.1.1.3 |
R |
SnmpAdminString (SIZE (0..28)) |
Name |
An object containing the Name of the gateway. |
MEDIA-GATEWAY REPORT |
|||||
avCmListMedGatewaySerNum |
.1.1.4 |
R |
SnmpAdminString (SIZE (0..13)) |
Serial Number |
An object containing the Serial Number. |
MEDIA-GATEWAY REPORT |
|||||
avCmListMedGatewayFWVersHWVint |
.1.1.5 |
R |
SnmpAdminString (SIZE (0..17)) |
FW Version/HW Vintage |
An object containing the FW Version/HW Vintage. |
MEDIA-GATEWAY REPORT |
|||||
avCmListMedGatewayRecRule |
.1.1.6 |
R |
SnmpAdminString (SIZE (0..5)) |
RecRule |
An object containing the recovery rule for the gateway. |
MEDIA-GATEWAY REPORT |
|||||
avCmListMedGatewayIPV4Address |
.1.1.7 |
R |
SnmpAdminString (SIZE (0..16)) |
IPV4 Address |
An object containing the IPV4 Address of the gateway. |
MEDIA-GATEWAY REPORT |
|||||
avCmListMedGatewayIPV6Address |
.1.1.8 |
R |
SnmpAdminString (SIZE (0..41)) |
IPV6 Address |
An object containing the IPV6 Address of the gateway. |
MEDIA-GATEWAY REPORT |
|||||
avCmListMedGatewayContrlAddr |
.1.1.9 |
R |
SnmpAdminString (SIZE (0..41)) |
Cntrl IP Addr |
An object containing the control IP Address. |
MEDIA-GATEWAY REPORT |
|||||
avCmListMedGatewayType |
.1.1.10 |
R |
SnmpAdminString (SIZE (0..9)) |
Type |
An object containing the gateway type. |
MEDIA-GATEWAY REPORT |
|||||
avCmListMedGatewayRegion |
.1.1.11 |
R |
SnmpAdminString (SIZE (0..2000)) |
NetRgn |
An object containing the network region assigned to the gateway. |
MEDIA-GATEWAY REPORT |
|||||
avCmListMedGatewayRegistered |
.1.1.12 |
R |
SnmpAdminString (SIZE (0..2)) |
Reg? |
An object containing whether the gateway is registered. |
MEDIA-GATEWAY REPORT |

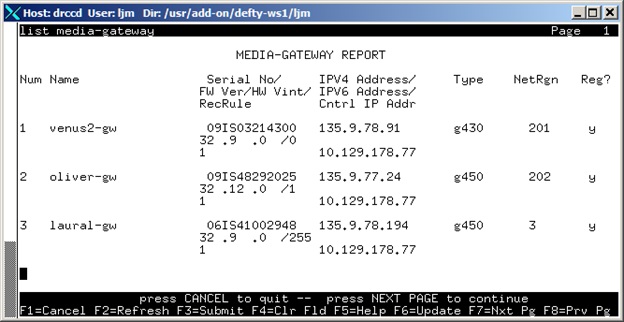

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmListMedGateway
avCmListMedGatewayNumber.1 = INTEGER: 1
avCmListMedGatewayNumber.2 = INTEGER: 2
:
:
avCmListMedGatewayNumber.10 = INTEGER: 10
avCmListMedGatewayName.1 = STRING: venus2-gw
avCmListMedGatewayName.2 = STRING: oliver-gw
:
:
avCmListMedGatewayName.10 = STRING: b4-v150-g450c
avCmListMedGatewaySerNum.1 = STRING: 09IS03214300
avCmListMedGatewaySerNum.2 = STRING: 09IS48292025
:
:
avCmListMedGatewaySerNum.10 = STRING: 09IS43271393
avCmListMedGatewayFWVersHWVint.1 = STRING: 32 .9 .0 /0
avCmListMedGatewayFWVersHWVint.2 = STRING: 32 .12 .0 /1
:
:
avCmListMedGatewayFWVersHWVint.10 = STRING: 33 .11 .0 /1
avCmListMedGatewayRecRule.1 = STRING: 1
avCmListMedGatewayRecRule.2 = STRING: 1
:
:
avCmListMedGatewayRecRule.10 = STRING: 1
avCmListMedGatewayIPV4Address.1 = STRING: 135.9.78.91
avCmListMedGatewayIPV4Address.2 = STRING: 135.9.77.24
:
:
avCmListMedGatewayIPV4Address.10 = STRING: 135.9.181.157
avCmListMedGatewayIPV6Address.1 = STRING:
avCmListMedGatewayIPV6Address.2 = STRING:
:
:
avCmListMedGatewayIPV6Address.10 = STRING: 2002:8709:b5fe::157
avCmListMedGatewayContrlAddr.1 = STRING: 10.129.178.77
avCmListMedGatewayContrlAddr.2 = STRING: 10.129.178.77
:
:
avCmListMedGatewayContrlAddr.10 = STRING: 10.129.178.77
avCmListMedGatewayType.1 = STRING: g430
avCmListMedGatewayType.2 = STRING: g450
:
:
avCmListMedGatewayType.10 = STRING: g450
avCmListMedGatewayRegion.1 = INTEGER: 201
avCmListMedGatewayRegion.2 = INTEGER: 202
:
:
avCmListMedGatewayRegion.10 = INTEGER: 10
avCmListMedGatewayRegistered.1 = STRING: y
avCmListMedGatewayRegistered.2 = STRING: y
:
:
avCmListMedGatewayRegistered.10 = STRING: y
