Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmDispTime
MIB group name |
OID |
Type |
|---|---|---|
avCmDispTime |
enterprises.6889.2.73.8.1.56 |
Scalar |
Description
The avCmDispTime MIB Group uses the display time command to retrieve time information.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
None
Default Caching Interval
0 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Green/Low: The data collected by this MIB Group is minimal and therefore has a low impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmDispTime |
SAT |
display time |
DATE AND TIME |
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmDispTimeDayOfWeek |
.1 |
R |
SnmpAdminString (SIZE (0..10)) |
Day of the Week |
An object that contains the day of the week. |
avCmDispTimeMonth |
.2 |
R |
SnmpAdminString (SIZE (0..10)) |
Month |
An object that contains the month of the year. |
avCmDispTimeDayOfTheMonth |
.3 |
R |
Integer32 (0..99) |
Day of the Month |
An object that contains the day of the month. |
DATE AND TIME |
|||||
avCmDispTimeYear |
.4 |
R |
Integer32 (0..9999) |
Year |
An object that contains the Year. |
DATE AND TIME |
|||||
avCmDispTimeHour |
.5 |
R |
Integer32 (0..99) |
Hour |
An object that contains the Hour in 24 hour format. |
DATE AND TIME |
|||||
avCmDispTimeminute |
.6 |
R |
Integer32 (0..99) |
Minute |
An object that contains the minute. |
DATE AND TIME |
|||||
avCmDispTimeSecond |
.7 |
R |
Integer32 (0..99) |
Second |
An object that contains the second. |
DATE AND TIME |
|||||
avCmDispTimeType |
.8 |
R |
SnmpAdminString (SIZE (0..17)) |
Type |
An object that contains whether standard time or daylight savings time is in effect. |
DATE AND TIME |
|||||
avCmDispTimeDSTRule |
.9 |
R |
Integer32 (0..99) |
Daylight Saving Rule |
An object that contains the daylight savings rule. |
DATE AND TIME |

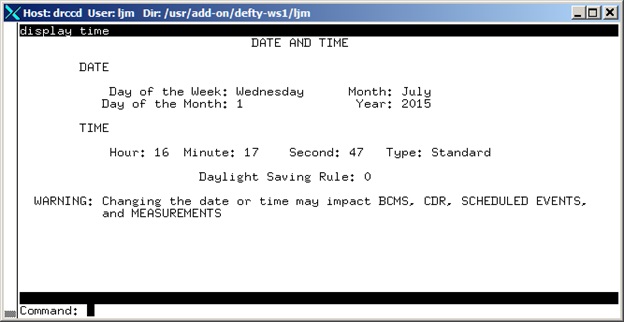

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-C
M-MIB.txt avCmDispTime
avCmDispTimeDayOfWeek.0 = STRING: Wednesday
avCmDispTimeMonth.0 = STRING: July
avCmDispTimeDayOfTheMonth.0 = INTEGER: 1
avCmDispTimeYear.0 = INTEGER: 2015
avCmDispTimeHour.0 = INTEGER: 16
avCmDispTimeMinute.0 = INTEGER: 20
avCmDispTimeSecond.0 = INTEGER: 20
avCmDispTimeType.0 = STRING: Standard
avCmDispTimeDSTRule.0 = INTEGER: 0
