Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmStatusHealth
In Communication Manager Release 8.0, occupancy OID has been deprecated and replaced by the following occupancy OID corresponding to the avCmStatusHealth MIB.
MIB group name |
New OID name |
New OID |
Type |
|---|---|---|---|
avCmStatusHealth |
avCmStatusHealthOccupancyOcc |
enterprises.6889.2.73.8.1.29.14 |
Table |
Description
The avCmStatusHealth MIB Group uses the Status Health command to retrieve the system health information.
Releases Supported
6.3.100 and later
Polling Type
Configuration, Inventory, and Performance/Utilization
Polling Interval
No more than once every 5 minutes.
Default Caching Interval
300 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmStatusHealth |
SAT |
Status Health |
Status Health |
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmStatusHealthAlmMaj |
.1 |
R |
Integer32 (0..9999) |
Alarms Major |
An object that contains the number of major alarms. |
Status Health |
|||||
avCmStatusHealthAlmMin |
.2 |
R |
Integer32 (0..9999) |
Alarms Minor |
An object that contains the number of minor alarms. |
Status Health |
|||||
avCmStatusHealthAlmwrn |
.3 |
R |
Integer32 (0..9999) |
Alarms Warning |
An object that contains the number of warning alarms. |
Status Health |
|||||
avCmStatusHealthBusyOutTrk |
.4 |
R |
Integer32 (0..9999) |
BUSYOUT Trunks |
An object that contains the number of busied out trunks. |
Status Health |
|||||
avCmStatusHealthBusyOutStn |
.5 |
R |
Integer32 (0..9999) |
BUSYOUT Stations |
An object that contains the number of busied out stations. |
Status Health |
|||||
avCmStatusHealthBusyOutOth |
.6 |
R |
Integer32 (0..9999) |
BUSYOUT Other |
An object that contains the number of busied out other objects. |
Status Health |
|||||
avCmStatusHealthOccupancySt |
.7 |
R |
SnmpAdminString (SIZE (0..6)) |
OCC |
An object that contains the static occupancy percentage. |
Status Health |
|||||
avCmStatusHealthEntryTmRecOvrLd |
.11 |
R |
SnmpAdminString (SIZE (0..20)) |
Entry Time of Most Recent Traffic Overload Interval |
An object that contains the Entry Time of Most Recent Traffic Overload Interval. |
Status Health |
|||||
avCmStatusHealthExitTmRecOvrLd |
.12 |
R |
SnmpAdminString (SIZE (0..20)) |
Entry Time of Most Recent Traffic Overload Interval |
An object that contains the exit Time of Most Recent Traffic Overload Interval. |
Status Health |
|||||
avCmStatusHealthLogins |
.13 |
R |
Integer32 (0..99) |
Logins |
An object that contains the number of active Logins. |
Status Health |

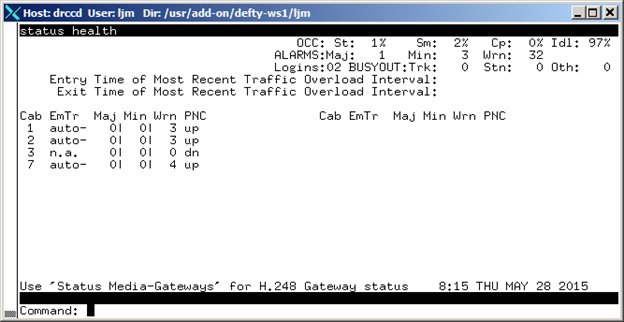

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -v 2c -c private -t 20 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmStatusHealth
AVAYA-AURA-CM-MIB::avCmStatusHealthAlmMaj.0 = INTEGER: 0
AVAYA-AURA-CM-MIB::avCmStatusHealthAlmMin.0 = INTEGER: 3
AVAYA-AURA-CM-MIB::avCmStatusHealthAlmWrn.0 = INTEGER: 25
AVAYA-AURA-CM-MIB::avCmStatusHealthBusyOutTrk.0 = INTEGER: 0
AVAYA-AURA-CM-MIB::avCmStatusHealthBusyOutStn.0 = INTEGER: 0
AVAYA-AURA-CM-MIB::avCmStatusHealthBusyOutOth.0 = INTEGER: 0
AVAYA-AURA-CM-MIB::avCmStatusHealthOccupancySt.0 = STRING: 1%
AVAYA-AURA-CM-MIB::avCmStatusHealthOccupancySm.0 = STRING: 3%
AVAYA-AURA-CM-MIB::avCmStatusHealthOccupancyCp.0 = STRING: 0%
AVAYA-AURA-CM-MIB::avCmStatusHealthOccupancyIdl.0 = STRING: 96%
AVAYA-AURA-CM-MIB::avCmStatusHealthEntryTmRecOvrLd.0 = STRING:
AVAYA-AURA-CM-MIB::avCmStatusHealthExitTmRecOvrLd.0 = STRING:
AVAYA-AURA-CM-MIB::avCmStatusHealthLogins.0 = INTEGER: 2
