Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasTrkGrpSumToday Group
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasTrkGrpSumToday |
enterprises.6889.2.73.8.1.36 |
Table |
Description
The avCmMeasTrkGrpSumToday MIB Group uses the list measurements trunk-group summary today-hour command to retrieve trunk from today.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once a day.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasTrkGrpSumToday |
SAT |
list measurements trunk-group summary today-hour |
TRUNK GROUP SUMMARY REPORT |
Reference Document
A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasTrkGrpSumTodayTable |
.1 |
n/a |
SEQUENCE OF avCmMeasLstHrEntry |
n/a |
An object that contains a list of the avCmMeasTrkGrpSumToday entries |
avCmMeasTrkGrpSumTodayEntry |
.1.1 |
n/a |
avCmMeasLstHrEntry |
n/a |
A avCmMeasTrkGrpSumToday entry containing objects of the avCmMeasTrkGrpSumToday information sent by the switch. |
avCmMeasTrkGrpSumTodayTrunkGrpIdx |
.1.1.1 |
n/a |
Integer32 (0..2000) |
n/a |
An object that uniquely identifies each increment of data. |
avCmMeasTrkGrpSumTodayTrunkGroup |
.1.1.2 |
R |
Integer32 (0..2000) |
Trunk Group |
An object containing the trunk group number. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayRunDate |
.1.1.3 |
R |
SnmpAdminString (SIZE (0..27)) |
Date |
An object containing the Date the command was executed. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayPeakHour |
.1.1.4 |
R |
Integer32 (0..2300) |
Peak Hour For All Trunk Groups |
An object containing the peak traffic hour for all trunk groups. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayMeasHour |
.1.1.5 |
R |
Integer32 (0..2300) |
Meas Hour |
An object containing the Hour the measurement was taken. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayGroupSize |
.1.1.6 |
R |
Integer32 (0..255) |
Grp Siz |
An object containing the number of administered trunks in the trunk group. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayTotalUsage |
.1.1.7 |
R |
Integer32 (0..9999) |
Total Usage |
An object containing the total time trunks are busy with calls during the measurement period (in CCS). |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayTotalSeize |
.1.1.8 |
R |
Integer32 (0..999999) |
Total Seize |
An object containing the number of times a trunk was seized in the group including false starts, don't answer and busy. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayIncSeize |
.1.1.9 |
R |
Integer32 (0..999999) |
Inc Seize |
An object containing the number of incoming seizures carried on the trunk group. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayGrpOvflow |
.1.1.10 |
R |
Integer32 (0..999999) |
Grp Ovfl |
An object containing the number of calls offered to a trunk group that are not carried or queued. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayQueSiz |
.1.1.11 |
R |
Integer32 (0..9999) |
Que Siz |
An object containing a number that identifies the number of slots assigned to the trunk group queue. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayCallQued |
.1.1.12 |
R |
Integer32 (0..9999) |
Call Qued |
An object containing the total number of calls that entered the trunk group queue after finding all trunks busy. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayQueOvf |
.1.1.13 |
R |
Integer32 (0..9999) |
Que Ovf |
An object containing the total number of calls that were not queued because the queue was full. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayQueAbd |
.1.1.14 |
R |
Integer32 (0..9999) |
Que Abd |
An object containing the total number of calls that were removed from the queue. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayOutSrv |
.1.1.15 |
R |
Integer32 (0..999) |
Out Srv |
An object containing the number of trunks in the group that are out of service |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayPercentAtb |
.1.1.16 |
R |
Integer32 (0..100) |
% ATB |
An object containing the percentage of time all trunks the group were simultaneously in use. |
TRUNK GROUP SUMMARY REPORT |
|||||
avCmMeasTrkGrpSumTodayPercentOutBlk |
.1.1.17 |
R |
Integer32 (0..100) |
% Out Blk |
An object containing the percentage of offered calls that are not carried on the group. |
TRUNK GROUP SUMMARY REPORT |
|||||

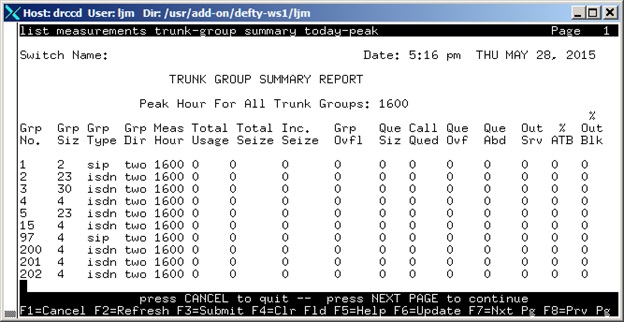

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmMeasTrkGrpSumToday
avCmMeasTrkGrpSumTodayTrunkGroup.1 = INTEGER: 1
avCmMeasTrkGrpSumTodayTrunkGroup.2 = INTEGER: 2
:
:
avCmMeasTrkGrpSumTodayTrunkGroup.604 = INTEGER: 604
avCmMeasTrkGrpSumTodayRunDate.1 = STRING: 5:18 pm THU MAY 28, 2015
avCmMeasTrkGrpSumTodayRunDate.2 = STRING: 5:18 pm THU MAY 28, 2015
:
:
avCmMeasTrkGrpSumTodayRunDate.604 = STRING: 5:18 pm THU MAY 28, 2015
avCmMeasTrkGrpSumTodayPeakHour.1 = INTEGER: 1600
avCmMeasTrkGrpSumTodayPeakHour.2 = INTEGER: 1600
:
:
avCmMeasTrkGrpSumTodayPeakHour.604 = INTEGER: 1600
avCmMeasTrkGrpSumTodayMeasHour.1 = INTEGER: 1600
avCmMeasTrkGrpSumTodayMeasHour.2 = INTEGER: 1600
:
:
avCmMeasTrkGrpSumTodayMeasHour.604 = INTEGER: 1600
avCmMeasTrkGrpSumTodayGroupSize.1 = INTEGER: 2
avCmMeasTrkGrpSumTodayGroupSize.2 = INTEGER: 23
:
:
avCmMeasTrkGrpSumTodayGroupSize.604 = INTEGER: 2
avCmMeasTrkGrpSumTodayTotalUsage.1 = INTEGER: 0
avCmMeasTrkGrpSumTodayTotalUsage.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumTodayTotalUsage.604 = INTEGER: 0
avCmMeasTrkGrpSumTodayTotalSeize.1 = INTEGER: 0
avCmMeasTrkGrpSumTodayTotalSeize.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumTodayTotalSeize.604 = INTEGER: 0
avCmMeasTrkGrpSumTodayIncSeize.1 = INTEGER: 0
avCmMeasTrkGrpSumTodayIncSeize.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumTodayIncSeize.604 = INTEGER: 0
avCmMeasTrkGrpSumTodayGrpOvflow.1 = INTEGER: 0
avCmMeasTrkGrpSumTodayGrpOvflow.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumTodayGrpOvflow.604 = INTEGER: 0
avCmMeasTrkGrpSumTodayQueSiz.1 = INTEGER: 0
avCmMeasTrkGrpSumTodayQueSiz.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumTodayQueSiz.604 = INTEGER: 0
avCmMeasTrkGrpSumTodayCallQued.1 = INTEGER: 0
avCmMeasTrkGrpSumTodayCallQued.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumTodayCallQued.604 = INTEGER: 0
avCmMeasTrkGrpSumTodayQueOvf.1 = INTEGER: 0
avCmMeasTrkGrpSumTodayQueOvf.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumTodayQueOvf.604 = INTEGER: 0
avCmMeasTrkGrpSumTodayQueAbd.1 = INTEGER: 0
avCmMeasTrkGrpSumTodayQueAbd.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumTodayQueAbd.604 = INTEGER: 0
avCmMeasTrkGrpSumTodayOutSrv.1 = INTEGER: 0
avCmMeasTrkGrpSumTodayOutSrv.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumTodayOutSrv.604 = INTEGER: 2
avCmMeasTrkGrpSumTodayPercentAtb.1 = INTEGER: 0
avCmMeasTrkGrpSumTodayPercentAtb.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumTodayPercentAtb.604 = INTEGER: 100
avCmMeasTrkGrpSumTodayPercentOutBlk.1 = INTEGER: 0
avCmMeasTrkGrpSumTodayPercentOutBlk.2 = INTEGER: 0
:
:
avCmMeasTrkGrpSumTodayPercentOutBlk.604 = INTEGER: 0
