Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmCapacityAsai
MIB group name |
OID |
Type |
|---|---|---|
avCmCapacityAsai |
enterprises 6889.2.73.8.1.12 |
Scalar |
Description
The avCmCapacityAsai MIB Group uses the display capacitycommand to retrieve the ASAI capacity information under the ADJUNCT SWITCH APPLICATION INTERFACE (ASAI) section of the SYSTEM CAPACITY form.
Releases Supported
6.3.100 and later
Polling Type
Configuration, Inventory, and Performance/Utilization
Polling Interval
No more than once every 20 minutes.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmCapacityAsai |
SAT |
display capacity |
SYSTEM CAPACITY |
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmCapacityAsaiActCtrlAsscUse |
.1 |
R |
Integer32 (0..99999) |
Active Controlling Associations |
An object that contains the number of Used Controlling Associations. |
SYSTEM CAPACITY |
|||||
avCmCapacityAsaiActCtrlAsscAvail |
.2 |
R |
Integer32 (0..99999) |
Active Controlling Associations |
An object that contains the number of available active Associations. |
SYSTEM CAPACITY |
|||||
avCmCapacityAsaiActCtrlAsscSysLim |
.3 |
R |
Integer32 (0..99999) |
Active Controlling Associations |
An object that contains the System Limit of Active Controlling Associations. |
SYSTEM CAPACITY |
|||||
avCmCapacityAsaiNotifiReqUsed |
.4 |
n/a |
Integer32 (0..99999) |
Notification Requests Used |
An object that contains the number of Used Notification Requests. |
SYSTEM CAPACITY |
|||||
avCmCapcityAsaiNotifReqAvail |
.5 |
R |
Integer32 (0..99999) |
Notification Requests |
An object that contains the number of Available Notification Requests. |
SYSTEM CAPACITY |
|||||
avCmCapacityAsaiNotifReqSysLim |
.6 |
R |
Integer32 (0..99999) |
Notification Requests |
An object that contains the system limit of Notification Requests. |
SYSTEM CAPACITY |
|||||
avCmCapcityAsaiSimActAdjCtrlCallUsed |
.7 |
R |
Integer32 (0..99999) |
Simultaneous Active Adjunct Controlled Calls |
An object that contains the number of Used Simultaneous Active Adjunct Controlled Calls. |
SYSTEM CAPACITY |
|||||
avCmCapcityAsaiSimActAdjCtrlCalAvail |
.8 |
R |
Integer32 (0..99999) |
Simultaneous Active Adjunct Controlled Calls |
An object that contains the number of available Simultaneous Active Adjunct Controlled Calls. |
SYSTEM CAPACITY |
|||||
avCmCapacityAsaiSimActAdjCtrlCallSysLim |
.9 |
R |
Integer32 (0..99999) |
Notification Requests |
An object that contains the System Limit of Simultaneous Active Adjunct Controlled Calls. |

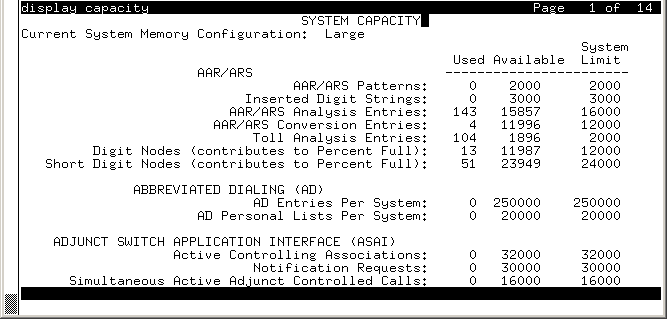

Sample output of forms
Sample Output of SNMP Walk command:
xerver1> snmpwalk -v 2c -c public 192.0.2.0 -m /usr/share/snmp/mibs/AVAYA-AURA-CM-MIB.txt avCmCapacityAsai
AVAYA-AURA-CM-MIB::avCmCapacityAsaiActCtrlAsscUsed.0 = INTEGER: 0
AVAYA-AURA-CM-MIB::avCmCapacityAsaiActCtrlAsscAvail.0 = INTEGER: 32000
AVAYA-AURA-CM-MIB::avCmCapacityAsaiActCtrlAsscSysLim.0 = INTEGER: 32000
AVAYA-AURA-CM-MIB::avCmCapacityAsaiNotifReqUsed.0 = INTEGER: 0
AVAYA-AURA-CM-MIB::avCmCapacityAsaiNotifReqAvail.0 = INTEGER: 30000
AVAYA-AURA-CM-MIB::avCmCapacityAsaiNotifReqSysLim.0 = INTEGER: 30000
AVAYA-AURA-CM-MIB::avCmCapacityAsaiSimActAdjCtrlCallUsed.0 = INTEGER: 0
AVAYA-AURA-CM-MIB::avCmCapacityAsaiSimActAdjCtrlCallAvail.0 = INTEGER: 16000
AVAYA-AURA-CM-MIB::avCmCapacityAsaiSimActAdjCtrlCallSysLim.0 = INTEGER: 16000
