Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmInitCauses
MIB group name |
OID |
Type |
|---|---|---|
avCmInitCauses Group |
enterprises.6889.2.73.8.1.58 |
Table |
Description
The avCmInitCauses MIB Group uses the display initcauses command to retrieve restart information.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
Once a minute.
Default Caching Interval
60 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Green/Low: The data collected by this MIB Group is minimal and therefore has a low impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmInitCauses Group |
SAT |
display initcauses |
INITIALIZATION CAUSES |
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmInitCausesTable |
.1 |
n/a |
SEQUENCE OF AvCmInitCausesEntry |
n/a |
A list of the avCmInitCauses entries. |
avCmInitCausesEntry |
.1.1 |
n/a |
AvCmInitCausesEntry |
n/a |
A avCmInitCausesEntry entry containing objects of the avCmInitCauses information sent by the switch. |
avCmInitCausesTimeIdx |
.1.1.1 |
n/a |
SnmpAdminString (SIZE (0..9)) |
n/a |
An object that uniquely identifies each Increment of data. |
avCmInitCausesIdx |
.1.1.2 |
n/a |
Integer32 (0..400) |
n/a |
An Integer32 object containing an index that numbers the alarm entry for the avCmInitCausesIdx. This object along with avCmInitCausesTimeIdx serves as the |
avCmInitCausesTime |
.1.1.3 |
R |
SnmpAdminString (SIZE (0.13)) |
Time |
An object containing the time of the event. |
INITIALIZATION CAUSES |
|||||
avCmInitCausesCause |
.1.1.4 |
R |
SnmpAdminString (SIZE (0..25)) |
Cause |
An object containing the cause of the event. |
INITIALIZATION CAUSES |
|||||
avCmInitCausesAction |
.1.1.5 |
R |
Integer32 (0..9) |
Action |
An object containing the reset level of the vent. |
INITIALIZATION CAUSES |
|||||
avCmInitCausesEscalated |
.1.1.6 |
R |
SnmpAdminString (SIZE (0..6)) |
Escalated |
An object containing whether or not event escalated. |
INITIALIZATION CAUSES |
|||||
avCmInitCausesMode |
.1.1.7 |
R |
SnmpAdminString (SIZE (0..9)) |
Mode |
An object containing the mode. |
INITIALIZATION CAUSES |

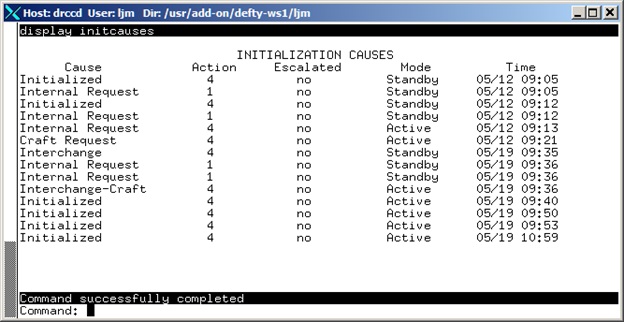

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmInitCauses
avCmInitCausesTime."05/12 09:05".1 = STRING: 05/12 09:05
avCmInitCausesTime."05/12 09:05".2 = STRING: 05/12 09:05
:
:
avCmInitCausesTime."05/19 10:59".1 = STRING: 05/19 10:59
avCmInitCausesCause."05/12 09:05".1 = STRING: Internal Request
avCmInitCausesCause."05/12 09:05".2 = STRING: Initialized
:
:
avCmInitCausesCause."05/19 10:59".1 = STRING: Initialized
avCmInitCausesAction."05/12 09:05".1 = INTEGER: 1
avCmInitCausesAction."05/12 09:05".2 = INTEGER: 4
:
:
avCmInitCausesAction."05/19 10:59".1 = INTEGER: 4
avCmInitCausesEscalated."05/12 09:05".1 = STRING: no
avCmInitCausesEscalated."05/12 09:05".2 = STRING: no
:
:
avCmInitCausesEscalated."05/19 10:59".1 = STRING: no
avCmInitCausesMode."05/12 09:05".1 = STRING: Standby
avCmInitCausesMode."05/12 09:05".2 = STRING: Standby
:
:
avCmInitCausesMode."05/19 10:59".1 = STRING: Active
