Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmListTrunkRange
MIB group name |
OID |
Type |
|---|---|---|
avCmListTrunkRange |
enterprises.6889.2.73.8.1.8 |
Scalar/Table |
Description
The avCmListTrunkRange MIB group displays the output of the list trunk xxxx count xx command. This MIB Group should be used instead of the avCmListTrunk MIB Group on systems with over 100 trunks.
Releases Supported
6.3.100 and later
Polling Type
Inventory and Performance/Utilization
Polling Interval
No more than once a day or when stations are added.
Default Caching Interval
300 seconds
Timeout Interval
Initial Timeout should be set to 15 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmListTrunkRange |
SAT |
list trunk xxxxx count x |
TRUNK GROUPS |
SAT |
display trunk xxxxx |
TRUNK GROUPS |
Reference Document
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
A detailed description of the command and form can be found in the Maintenance Commands for Avaya Aura® Communication Manager, Branch Gateways and Servers document. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmListTrunkRangeStartGrp |
.1 |
R/W |
Integer32 (0..2000) |
n/a |
An object containing the starting trunk group. (scalar) |
avCmListTrunkRangeCount |
.2 |
R/W |
Integer32 (1..100) |
n/a |
An object containing the number of trunks to list. (scalar) |
avCmListTrunkRangeTable |
.3 |
n/a |
SEQUENCE OF avCmListStationRangeEntry |
n/a |
A list of the avCmListTrunkRange entries. |
avCmListStationRangeEntry |
.3.1 |
n/a |
avCmListStationRangeEntry |
n/a |
An avCmListTrunkRange entry containing objects of the avCmListTrunkRange information sent by the switch. |
avCmListTrunkRangeIdx |
.3.1.1 |
n/a |
Integer32 (0..2000) |
n/a |
An object that uniquely identifies each Server Alarm. |
avCmListTrunkRangeGrpNumber |
.3.1.2 |
R |
Integer32 (0..2000) |
List Command: Grp No Display Command: Group Number |
An object that uniquely identifies each Trunk Group. |
TRUNK GROUPS |
|||||
avCmListTrunkRangeTAC |
.3.1.3 |
R |
SnmpAdminString (SIZE (0..17)) |
TAC |
An object that contains the Access Code for the Trunk Group. |
TRUNK GROUPS |
|||||
avCmListTrunkRangeGrpType |
.3.1.4 |
R |
SnmpAdminString (SIZE (0..8)) |
Type |
An object containing the trunk group type. |
TRUNK GROUPS |
|||||
avCmListTrunkRangeGrpName |
.3.1.5 |
R |
SnmpAdminString (SIZE (0..28)) |
Name |
An object containing the name assigned to the trunk. |
TRUNK GROUPS |
|||||
avCmListTrunkRangeGrpNoMem |
.3.1.6 |
R |
Integer32 (0..255) |
No. Mem |
An object containing the trunk group number of ports assigned. |
TRUNK GROUPS |
|||||
avCmListTrunkRangeSigGrp |
.3.1.7 |
R |
Integer32 (0..999) |
Signaling Group |
An object containing the signaling group of the sip trunk group. |
TRUNK GROUPS |
|||||
avCmListTrunkRangeGrpSigType |
.3.1.8 |
R |
SnmpAdminString (SIZE (0..8)) |
Trunk Signaling Type |
An object containing the Trunk Signaling Type of the trunk group. |
TRUNK GROUPS |
|||||
avCmListTrunkRangeDirection |
.3.1.9 |
R |
SnmpAdminString (SIZE (0..9)) |
Direction |
An object containing the Direction of the trunk group. |
TRUNK GROUPS |
|||||
avCmListTrunkRangeServiceType |
.3.1.10 |
R |
SnmpAdminString (SIZE (0..17)) |
List Command: Does not display this field. Display Command: Service Type |
An object that contains the Service Type of the Trunk Group. |
TRUNK GROUP |
|||||
avCmListTrunkRangeCommType |
.3.1.11 |
R |
SnmpAdminString (SIZE (0..6)) |
List Command: Does not display this field. Display Command: Comm Type |
An object that contains the Comm Type of the Trunk Group. |
TRUNK GROUP |
|||||
avCmListTrunkRangeTrunkType |
.3.1.12 |
R |
SnmpAdminString (SIZE (0..14)) |
List Command: Does not display this field. Display Command: Trunk Type |
An object that contains the Trunk Type of the Trunk Group. |
TRUNK GROUP |
|||||
avCmListTrunkRangeMemAssignMeth |
.3.1.13 |
R |
SnmpAdminString (SIZE (0..7)) |
List Command: Does not display this field. Display Command: Member Assignment Method |
An object that contains the Member Assignment Method of the Trunk Group. |
TRUNK GROUP |
|||||
avCmListTrunkRangeCarMedium |
.3.1.14 |
R |
SnmpAdminString (SIZE (0..8)) |
List Command: Does not display this field. Display Command: Carrier Medium |
An object that contains the Carrier Medium of the Trunk Group. |
TRUNK GROUP |

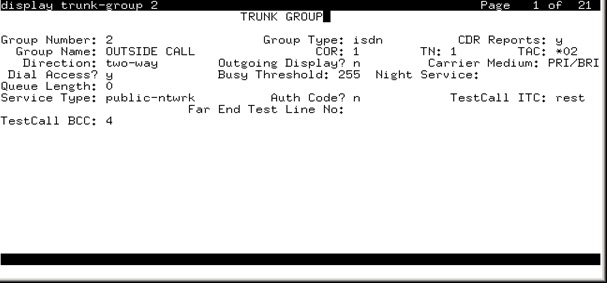

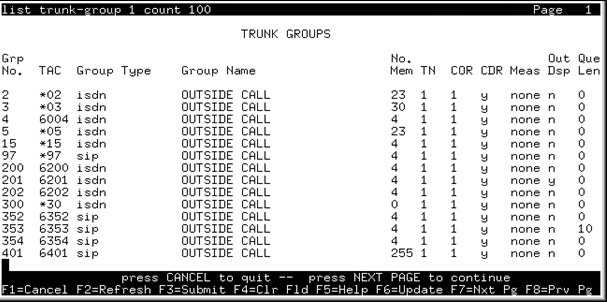

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmListTrunkRange
avCmListTrunkRangeStartGrp.0 = INTEGER: 1
avCmListTrunkRangeCount.0 = INTEGER: 10
avCmListTrunkRangeGrpNumber.2 = INTEGER: 2
avCmListTrunkRangeGrpNumber.3 = INTEGER: 3
avCmListTrunkRangeGrpNumber.4 = INTEGER: 4
avCmListTrunkRangeGrpNumber.5 = INTEGER: 5
avCmListTrunkRangeGrpNumber.15 = INTEGER: 15
avCmListTrunkRangeGrpNumber.97 = INTEGER: 97
avCmListTrunkRangeGrpNumber.200 = INTEGER: 200
avCmListTrunkRangeGrpNumber.201 = INTEGER: 201
avCmListTrunkRangeGrpNumber.202 = INTEGER: 202
avCmListTrunkRangeGrpNumber.300 = INTEGER: 300
avCmListTrunkRangeTAC.2 = STRING: *02
avCmListTrunkRangeTAC.3 = STRING: *03
avCmListTrunkRangeTAC.4 = STRING: 6004
avCmListTrunkRangeTAC.5 = STRING: *05
avCmListTrunkRangeTAC.15 = STRING: *15
avCmListTrunkRangeTAC.97 = STRING: *97
avCmListTrunkRangeTAC.200 = STRING: 6200
avCmListTrunkRangeTAC.201 = STRING: 6201
avCmListTrunkRangeTAC.202 = STRING: 6202
avCmListTrunkRangeTAC.300 = STRING: *30
avCmListTrunkRangeGrpType.2 = STRING: isdn
avCmListTrunkRangeGrpType.3 = STRING: isdn
avCmListTrunkRangeGrpType.4 = STRING: isdn
avCmListTrunkRangeGrpType.5 = STRING: isdn
avCmListTrunkRangeGrpType.15 = STRING: isdn
avCmListTrunkRangeGrpType.97 = STRING: sip
avCmListTrunkRangeGrpType.200 = STRING: isdn
avCmListTrunkRangeGrpType.201 = STRING: isdn
avCmListTrunkRangeGrpType.202 = STRING: isdn
avCmListTrunkRangeGrpType.300 = STRING: isdn
avCmListTrunkRangeGrpName.2 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.3 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.4 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.5 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.15 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.97 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.200 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.201 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.202 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpName.300 = STRING: OUTSIDE CALL
avCmListTrunkRangeGrpNoMem.2 = INTEGER: 23
avCmListTrunkRangeGrpNoMem.3 = INTEGER: 30
avCmListTrunkRangeGrpNoMem.4 = INTEGER: 4
avCmListTrunkRangeGrpNoMem.5 = INTEGER: 23
avCmListTrunkRangeGrpNoMem.15 = INTEGER: 4
avCmListTrunkRangeGrpNoMem.97 = INTEGER: 4
avCmListTrunkRangeGrpNoMem.200 = INTEGER: 4
avCmListTrunkRangeGrpNoMem.201 = INTEGER: 4
avCmListTrunkRangeGrpNoMem.202 = INTEGER: 4
avCmListTrunkRangeGrpNoMem.300 = INTEGER: 0
avCmListTrunkRangeSigGrp.2 = INTEGER: 0
avCmListTrunkRangeSigGrp.3 = INTEGER: 0
avCmListTrunkRangeSigGrp.4 = INTEGER: 0
avCmListTrunkRangeSigGrp.5 = INTEGER: 0
avCmListTrunkRangeSigGrp.15 = INTEGER: 0
avCmListTrunkRangeSigGrp.97 = INTEGER: 97
avCmListTrunkRangeSigGrp.200 = INTEGER: 200
avCmListTrunkRangeSigGrp.201 = INTEGER: 201
avCmListTrunkRangeSigGrp.202 = INTEGER: 202
avCmListTrunkRangeSigGrp.300 = INTEGER: 0
avCmListTrunkRangeGrpSigType.2 = STRING:
avCmListTrunkRangeGrpSigType.3 = STRING:
avCmListTrunkRangeGrpSigType.4 = STRING:
avCmListTrunkRangeGrpSigType.5 = STRING:
avCmListTrunkRangeGrpSigType.15 = STRING:
avCmListTrunkRangeGrpSigType.97 = STRING:
avCmListTrunkRangeGrpSigType.200 = STRING:
avCmListTrunkRangeGrpSigType.201 = STRING:
avCmListTrunkRangeGrpSigType.202 = STRING:
avCmListTrunkRangeGrpSigType.300 = STRING:
avCmListTrunkRangeDirection.2 = STRING: two-way
avCmListTrunkRangeDirection.3 = STRING: two-way
avCmListTrunkRangeDirection.4 = STRING: two-way
avCmListTrunkRangeDirection.5 = STRING: two-way
avCmListTrunkRangeDirection.15 = STRING: two-way
avCmListTrunkRangeDirection.97 = STRING: two-way
avCmListTrunkRangeDirection.200 = STRING: two-way
avCmListTrunkRangeDirection.201 = STRING: two-way
avCmListTrunkRangeDirection.202 = STRING: two-way
avCmListTrunkRangeDirection.300 = STRING: two-way
avCmListTrunkRangeServiceType.2 = STRING: public-ntwrk
avCmListTrunkRangeServiceType.3 = STRING: tie
avCmListTrunkRangeServiceType.4 = STRING: tie
avCmListTrunkRangeServiceType.5 = STRING: tie
avCmListTrunkRangeServiceType.15 = STRING: tie
avCmListTrunkRangeServiceType.97 = STRING: tie
avCmListTrunkRangeServiceType.200 = STRING: tie
avCmListTrunkRangeServiceType.201 = STRING: tie
avCmListTrunkRangeServiceType.202 = STRING: tie
avCmListTrunkRangeServiceType.300 = STRING: tie
avCmListTrunkRangeCommType.2 = STRING: voice
avCmListTrunkRangeCommType.3 = STRING: voice
avCmListTrunkRangeCommType.4 = STRING: voice
avCmListTrunkRangeCommType.5 = STRING: voice
avCmListTrunkRangeCommType.15 = STRING: voice
avCmListTrunkRangeCommType.97 = STRING: voice
avCmListTrunkRangeCommType.200 = STRING: voice
avCmListTrunkRangeCommType.201 = STRING: voice
avCmListTrunkRangeCommType.202 = STRING: voice
avCmListTrunkRangeCommType.300 = STRING: voice
avCmListTrunkRangeTrunkType.2 = STRING: immed/immed
avCmListTrunkRangeTrunkType.3 = STRING: immed/immed
avCmListTrunkRangeTrunkType.4 = STRING: immed/immed
avCmListTrunkRangeTrunkType.5 = STRING: immed/immed
avCmListTrunkRangeTrunkType.15 = STRING: immed/immed
avCmListTrunkRangeTrunkType.97 = STRING: immed/immed
avCmListTrunkRangeTrunkType.200 = STRING: immed/immed
avCmListTrunkRangeTrunkType.201 = STRING: immed/immed
avCmListTrunkRangeTrunkType.202 = STRING: immed/immed
avCmListTrunkRangeTrunkType.300 = STRING: immed/immed
avCmListTrunkRangeMemAssignMeth.2 = STRING: manual
avCmListTrunkRangeMemAssignMeth.3 = STRING: manual
avCmListTrunkRangeMemAssignMeth.4 = STRING: manual
avCmListTrunkRangeMemAssignMeth.5 = STRING: manual
avCmListTrunkRangeMemAssignMeth.15 = STRING: manual
avCmListTrunkRangeMemAssignMeth.97 = STRING: auto
avCmListTrunkRangeMemAssignMeth.200 = STRING: auto
avCmListTrunkRangeMemAssignMeth.201 = STRING: auto
avCmListTrunkRangeMemAssignMeth.202 = STRING: auto
avCmListTrunkRangeMemAssignMeth.300 = STRING: manual
avCmListTrunkRangeCarMedium.2 = STRING: PRI/BRI
avCmListTrunkRangeCarMedium.3 = STRING: PRI/BRI
avCmListTrunkRangeCarMedium.4 = STRING: PRI/BRI
avCmListTrunkRangeCarMedium.5 = STRING: PRI/BRI
avCmListTrunkRangeCarMedium.15 = STRING: PRI/BRI
avCmListTrunkRangeCarMedium.97 = STRING: H.323
avCmListTrunkRangeCarMedium.200 = STRING: H.323
avCmListTrunkRangeCarMedium.201 = STRING: H.323
avCmListTrunkRangeCarMedium.202 = STRING: H.323
avCmListTrunkRangeCarMedium.300 = STRING: PRI/BRI
