Avaya Aura® Communication Manager SNMP Administration and Reference Guide
avCmMeasAnnAllLstHr
MIB group name |
OID |
Type |
|---|---|---|
avCmMeasAnnAllLstHr |
enterprises.6889.2.73.8.1.80 |
Table |
Description
The avCmMeasAnnAllLstHr MIB group displays all announcements in the previous hour.
Releases Supported
6.3.100 and later
Polling Type
Performance/Utilization
Polling Interval
No more than once an hour. The date is updated only at the beginning of each hour.
Default Caching Interval
600 seconds
Timeout Interval
Initial Timeout should be set to 20 seconds.
Retry Interval
Initial Retry should be set to 3.
Limitations
Yellow/Medium: The data collected by this MIB Group might have some impact on the system.
Associated Communication Manager Commands:
MIB group name |
Bash/SAT |
Associated command |
Form/Report name |
|---|---|---|---|
avCmMeasAnnAllLstHr |
SAT |
list measurements announcement all last-hour |
VOICE ANNOUNCEMENTS MEASUREMENTS |
Reference Document
A detailed description of the command and form can be found in document referenced by Administering Avaya Aura® Communication Manager. This document can be downloaded from http://support.avaya.com/document/.
Command permissions or user profile
No special permissions needed.
Objects
Object Name |
OID |
R/W |
Type |
Field Name |
Description |
|---|---|---|---|---|---|
Form/Report name |
|||||
avCmMeasAnnAllLstHrTable |
.1 |
n/a |
SEQUENCE OF avCmMeasAnnAllLstHrEntry |
n/a |
An object containing the avCmMeasAnnAllLstHr entries. |
avCmMeasAnnAllLstHrEntry |
.1.1 |
n/a |
avCmMeasAnnAllLstHrEntry |
n/a |
An object containing the avCmMeasAnnAllLstHrentry with the information that the switch sent. |
avCmMeasAnnAllLstHrIdx |
.1.1.1 |
n/a |
Integer32 (0..17)) |
n/a |
An object that uniquely identifies all data increments. |
avCmMeasAnnAllLstHrExtension |
.1.1.2 |
n/a |
Integer32 (0..17)) |
Extension |
An index containing the announcement extension. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllLstHrRunDate |
.1.1.3 |
R |
Integer32(0..28)) |
Date |
An object containing the date when the command was executed. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllLstHrName |
.1.1.4 |
R |
Integer32(0..25)) |
Name |
An object containing the announcement name. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllLstHrMeasHou |
.1.1.5 |
R |
Integer32(0..9999)) |
Measurement Hour |
An object that containing the measurement hour. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllLstHrPlayRequests |
.1.1.6 |
R |
Integer32(0..9999)) |
Play Reqts |
An object containing the number of play requests for the announcement. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllLstHrCallsQueued |
.1.1.7 |
R |
Integer32 (0..9999)) |
Calls Que |
An object containing the number of calls in queue to be assigned a port. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllLstHrASP |
.1.1.8 |
R |
Integer32 (0..9999)) |
ASP |
An object containing the average time calls waited for the announcement to be played in seconds. Calls abandoned in the queue are not included. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllLstHrPSP |
.1.1.9 |
R |
Integer32 (0..9999)) |
PSP |
An object containing the peak speed to play an announcement. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllLstHrQueueDrops |
1.1.10 |
R |
Integer32 (0..9999)) |
Queue Drops |
An object containing the number of calls in the queue that were disconnected. Calls abandoned by the caller and aborted by VOA (VDN of origin Announcements) are included. Calls in the queue answered by an agent are not included. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllLstHrMportPlays |
1.1.11 |
R |
Integer32 (0..9999)) |
Mport Plays |
An object containing the number of times an announcement is played simultaneously by multiple ports. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllLstHrMxPorts |
1.1.12 |
R |
Integer32(0..99)) |
Mx Pt |
An object containing the peak numbers of ports used for announcements in a specific period. |
VOICE ANNOUNCEMENTS MEASUREMENTS |
|||||
avCmMeasAnnAllLstHrMaxCallers |
1.1.13 |
R |
Integer32 (0..999)) |
Max Cls |
An object containing the peak number callers simultaneously connected to a port for an announcement. |
VOICE ANNOUNCEMENTS MEASUREMENTS |

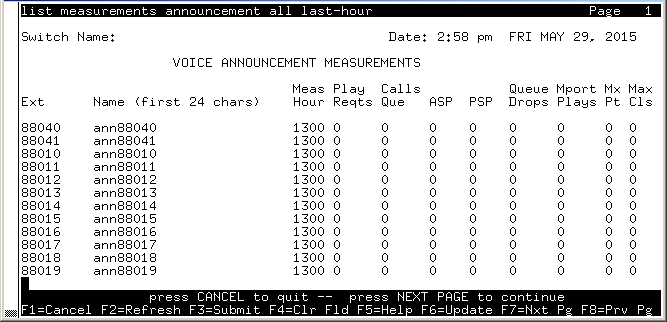

Sample output of forms
Sample Output of SNMP Walk command:
server1> snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt avCmMeasAnnAllLstHr
avCmMeasAnnAllLstHrExtension."88010" = STRING: 88010
avCmMeasAnnAllLstHrExtension."88011" = STRING: 88011
:
:
avCmMeasAnnAllLstHrExtension."88041" = STRING: 88041
avCmMeasAnnAllLstHrRunDate."88010" = STRING: 3:00 pm FRI MAY 29, 2015
avCmMeasAnnAllLstHrRunDate."88011" = STRING: 3:00 pm FRI MAY 29, 2015
:
:
avCmMeasAnnAllLstHrRunDate."88041" = STRING: 3:00 pm FRI MAY 29, 2015
avCmMeasAnnAllLstHrName."88010" = STRING: ann88010
avCmMeasAnnAllLstHrName."88011" = STRING: ann88011
:
:
avCmMeasAnnAllLstHrName."88041" = STRING: ann88041
avCmMeasAnnAllLstHrMeasHour."88010" = INTEGER: 1400
avCmMeasAnnAllLstHrMeasHour."88011" = INTEGER: 1400
:
:
avCmMeasAnnAllLstHrMeasHour."88041" = INTEGER: 1400
avCmMeasAnnAllLstHrPlayRequests."88010" = INTEGER: 0
avCmMeasAnnAllLstHrPlayRequests."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrPlayRequests."88041" = INTEGER: 0
avCmMeasAnnAllLstHrCallsQueued."88010" = INTEGER: 0
avCmMeasAnnAllLstHrCallsQueued."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrCallsQueued."88041" = INTEGER: 0
avCmMeasAnnAllLstHrASP."88010" = INTEGER: 0
avCmMeasAnnAllLstHrASP."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrASP."88041" = INTEGER: 0
avCmMeasAnnAllLstHrPSP."88010" = INTEGER: 0
avCmMeasAnnAllLstHrPSP."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrPSP."88041" = INTEGER: 0
avCmMeasAnnAllLstHrQueueDrops."88010" = INTEGER: 0
avCmMeasAnnAllLstHrQueueDrops."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrQueueDrops."88041" = INTEGER: 0
avCmMeasAnnAllLstHrMportPlays."88010" = INTEGER: 0
avCmMeasAnnAllLstHrMportPlays."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrMportPlays."88041" = INTEGER: 0
avCmMeasAnnAllLstHrMxPorts."88010" = INTEGER: 0
avCmMeasAnnAllLstHrMxPorts."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrMxPorts."88041" = INTEGER: 0
avCmMeasAnnAllLstHrMaxCallers."88010" = INTEGER: 0
avCmMeasAnnAllLstHrMaxCallers."88011" = INTEGER: 0
:
:
avCmMeasAnnAllLstHrMaxCallers."88041" = INTEGER: 0
