Description

The avCmListMemTrunk MIB Group displays the output of the list member trunk count xxx command.

Releases Supported

6.3.100 and later

Polling Type

Inventory and Performance/Utilization

Polling Interval

No more than once a day or when trunk members are added.

Default Caching Interval

600 seconds

Timeout Interval

Initial Timeout should be set to 20 seconds.

Retry Interval

Initial Retry should be set to 3.

Limitations

Yellow/Medium: The data collected by this MIB Group might have some impact on the system.

Associated Communication Manager Commands:

Reference Document

A detailed description of the command and form can be found in the Administering Avaya Aura® Communication Manager document. This document can be downloaded from http://support.avaya.com/document/.

Command permissions or user profile

1. No special permissions needed.

2. No special permissions needed.

Objects

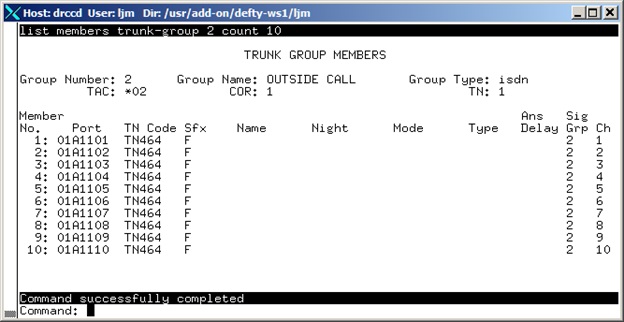

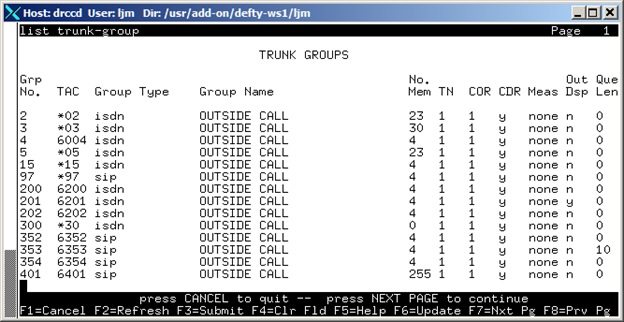

Sample output of forms

Sample Output of SNMP Walk command:

server1>  snmpwalk -t 30 -v2c -Os -c public 192.0.2.0 -m /usr/share/snmp/mibs//AVAYA-AURA-CM-MIB.txt  avCmListMemTrunkRange
avCmListMemTrunkRangeGrp.0 = INTEGER: 1
avCmListMemTrunkRangeStart.0 = INTEGER: 1
avCmListMemTrunkRangeCount.0 = INTEGER: 10
avCmListMemTrunkRangeMemMember.2.1 = INTEGER: 1
avCmListMemTrunkRangeMemMember.2.2 = INTEGER: 2
avCmListMemTrunkRangeMemMember.2.3 = INTEGER: 3
avCmListMemTrunkRangeMemMember.2.4 = INTEGER: 4
avCmListMemTrunkRangeMemMember.2.5 = INTEGER: 5
avCmListMemTrunkRangeMemMember.2.6 = INTEGER: 6
avCmListMemTrunkRangeMemMember.2.7 = INTEGER: 7
avCmListMemTrunkRangeMemMember.2.8 = INTEGER: 8
avCmListMemTrunkRangeMemMember.2.9 = INTEGER: 9
avCmListMemTrunkRangeMemMember.2.10 = INTEGER: 10
avCmListMemTrunkRangePort.2.1 = STRING: 01A1101
avCmListMemTrunkRangePort.2.2 = STRING: 01A1102
avCmListMemTrunkRangePort.2.3 = STRING: 01A1103
avCmListMemTrunkRangePort.2.4 = STRING: 01A1104
avCmListMemTrunkRangePort.2.5 = STRING: 01A1105
avCmListMemTrunkRangePort.2.6 = STRING: 01A1106
avCmListMemTrunkRangePort.2.7 = STRING: 01A1107
avCmListMemTrunkRangePort.2.8 = STRING: 01A1108
avCmListMemTrunkRangePort.2.9 = STRING: 01A1109
avCmListMemTrunkRangePort.2.10 = STRING: 01A1110
avCmListMemTrunkRangeTnCode.2.1 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.2 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.3 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.4 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.5 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.6 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.7 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.8 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.9 = STRING: TN464
avCmListMemTrunkRangeTnCode.2.10 = STRING: TN464
avCmListMemTrunkRangeSfx.2.1 = STRING: F
avCmListMemTrunkRangeSfx.2.2 = STRING: F
avCmListMemTrunkRangeSfx.2.3 = STRING: F
avCmListMemTrunkRangeSfx.2.4 = STRING: F
avCmListMemTrunkRangeSfx.2.5 = STRING: F
avCmListMemTrunkRangeSfx.2.6 = STRING: F
avCmListMemTrunkRangeSfx.2.7 = STRING: F
avCmListMemTrunkRangeSfx.2.8 = STRING: F
avCmListMemTrunkRangeSfx.2.9 = STRING: F
avCmListMemTrunkRangeSfx.2.10 = STRING: F
avCmListMemTrunkRangeName.2.1 = STRING:
avCmListMemTrunkRangeName.2.2 = STRING:
avCmListMemTrunkRangeName.2.3 = STRING:
avCmListMemTrunkRangeName.2.4 = STRING:
avCmListMemTrunkRangeName.2.5 = STRING:
avCmListMemTrunkRangeName.2.6 = STRING:
avCmListMemTrunkRangeName.2.7 = STRING:
avCmListMemTrunkRangeName.2.8 = STRING:
avCmListMemTrunkRangeName.2.9 = STRING:
avCmListMemTrunkRangeName.2.10 = STRING:
avCmListMemTrunkRangeNight.2.1 = STRING:
avCmListMemTrunkRangeNight.2.2 = STRING:
avCmListMemTrunkRangeNight.2.3 = STRING:
avCmListMemTrunkRangeNight.2.4 = STRING:
avCmListMemTrunkRangeNight.2.5 = STRING:
avCmListMemTrunkRangeNight.2.6 = STRING:
avCmListMemTrunkRangeNight.2.7 = STRING:
avCmListMemTrunkRangeNight.2.8 = STRING:
avCmListMemTrunkRangeNight.2.9 = STRING:
avCmListMemTrunkRangeNight.2.10 = STRING:
avCmListMemTrunkRangeMode.2.1 = STRING:
avCmListMemTrunkRangeMode.2.2 = STRING:
avCmListMemTrunkRangeMode.2.3 = STRING:
avCmListMemTrunkRangeMode.2.4 = STRING:
avCmListMemTrunkRangeMode.2.5 = STRING:
avCmListMemTrunkRangeMode.2.6 = STRING:
avCmListMemTrunkRangeMode.2.7 = STRING:
avCmListMemTrunkRangeMode.2.8 = STRING:
avCmListMemTrunkRangeMode.2.9 = STRING:
avCmListMemTrunkRangeMode.2.10 = STRING:
avCmListMemTrunkRangeType.2.1 = STRING:
avCmListMemTrunkRangeType.2.2 = STRING:
avCmListMemTrunkRangeType.2.3 = STRING:
avCmListMemTrunkRangeType.2.4 = STRING:
avCmListMemTrunkRangeType.2.5 = STRING:
avCmListMemTrunkRangeType.2.6 = STRING:
avCmListMemTrunkRangeType.2.7 = STRING:
avCmListMemTrunkRangeType.2.8 = STRING:
avCmListMemTrunkRangeType.2.9 = STRING:
avCmListMemTrunkRangeType.2.10 = STRING:
avCmListMemTrunkRangeAnsDelay.2.1 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.2 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.3 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.4 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.5 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.6 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.7 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.8 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.9 = INTEGER: 0
avCmListMemTrunkRangeAnsDelay.2.10 = INTEGER: 0
avCmListMemTrunkRangeSigGrp.2.1 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.2 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.3 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.4 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.5 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.6 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.7 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.8 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.9 = INTEGER: 2
avCmListMemTrunkRangeSigGrp.2.10 = INTEGER: 2
